Floor Shift Assembly: Removal

  1. REMOVE TRANSFER SHIFT LEVER KNOB
  2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
    1. Remove the console panel sub-assembly upper (REMOVAL ).
  3. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Shift into the N position.
    2. Remove the nut and disconnect the No. 1 floor shift gear shifting rod from the connecting rod swivel.

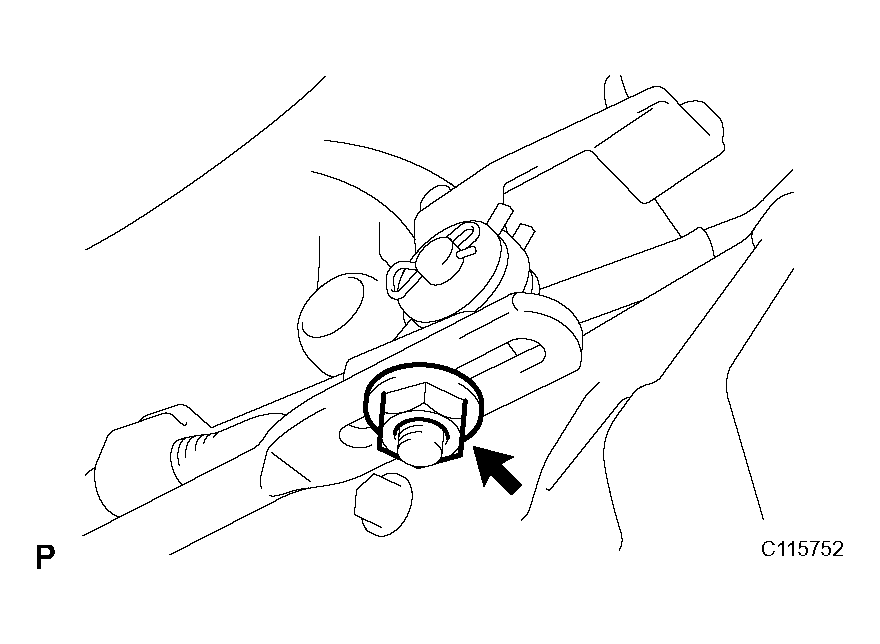

    Fig 1: Identifying No. 1 Floor Shift Gear Shifting Rod And Connecting Rod Swivel
    G04062713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FLOOR SHIFT LEVER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 6 bolts.

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

    3. Remove the floor shift lever assembly.

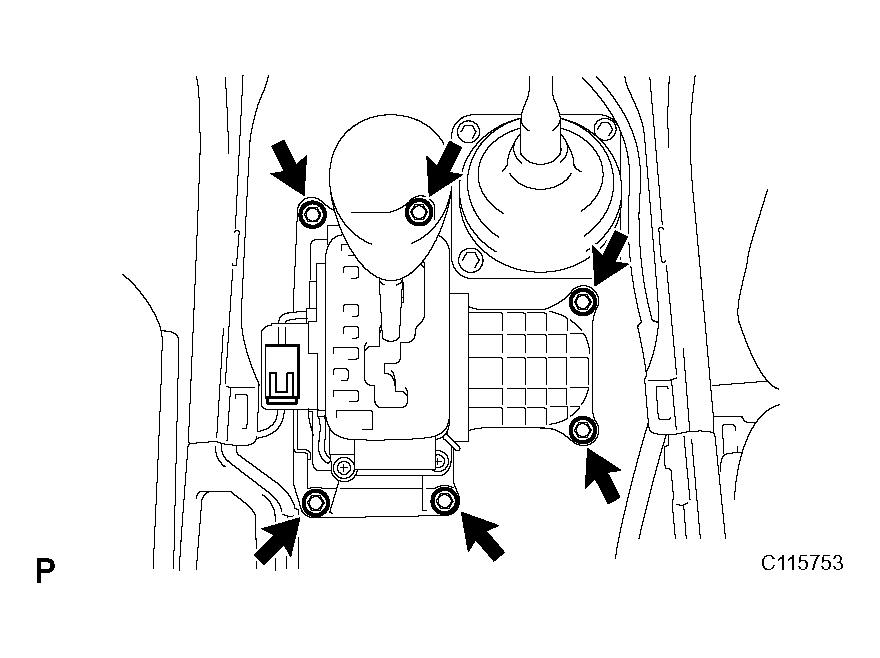

    Fig 2: Identifying Floor Shift Lever Assembly
    G04062714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
