Oil Pump: Disassembly

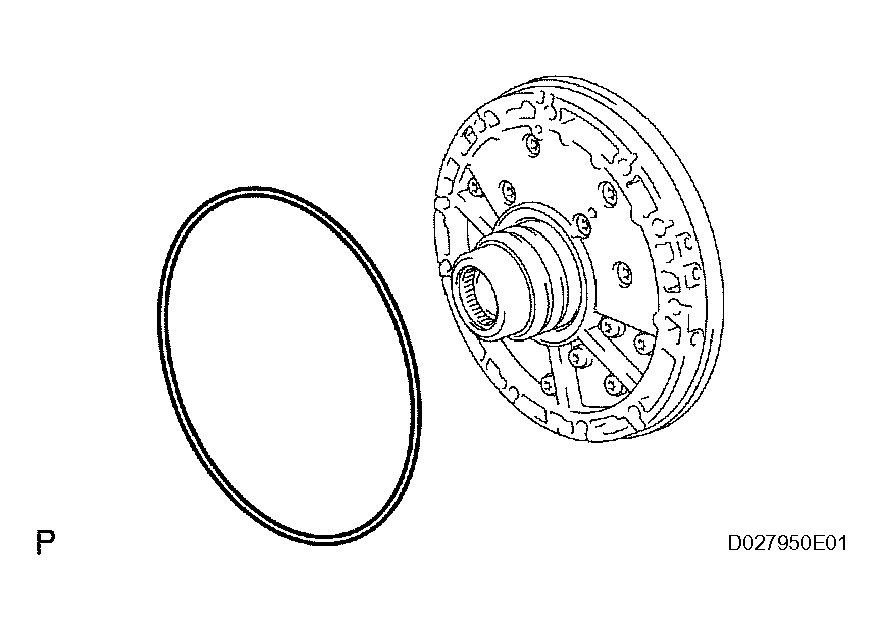

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump assembly.
Fig 1: Identifying O-Ring And Oil Pump Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

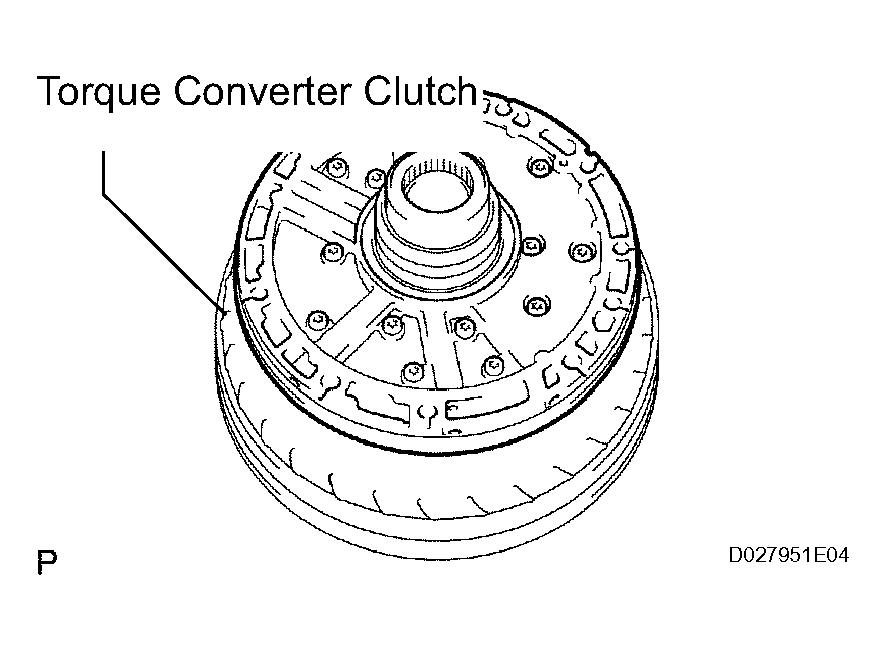

FIX OIL PUMP ASSEMBLY
1. Place the oil pump body on the torque converter clutch.
Fig 2: Placing Oil Pump Body On Torque Converter Clutch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

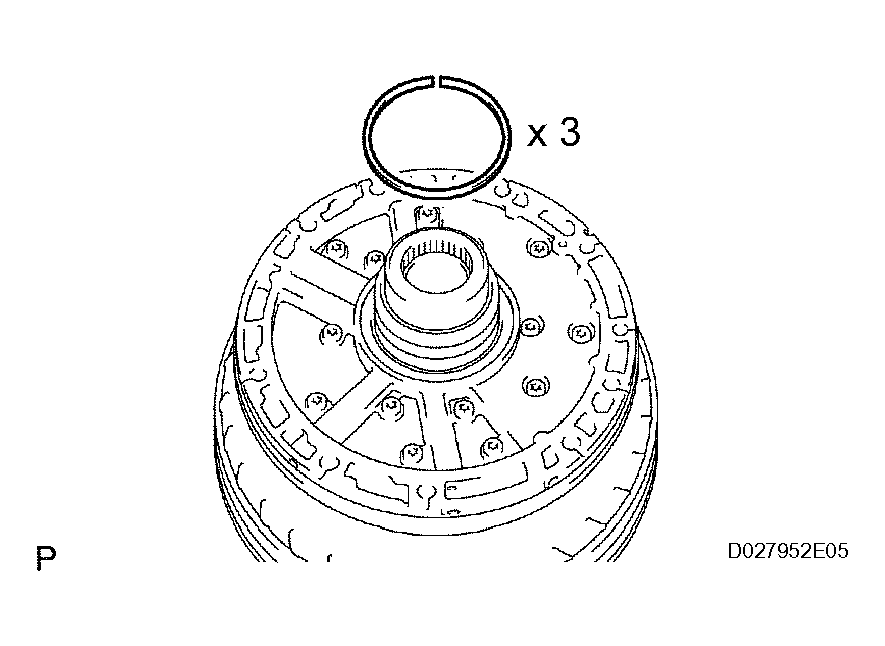

REMOVE CLUTCH DRUM OIL SEAL RING
1. Remove the 3 oil seal rings.
Fig 3: Identifying Oil Seal Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

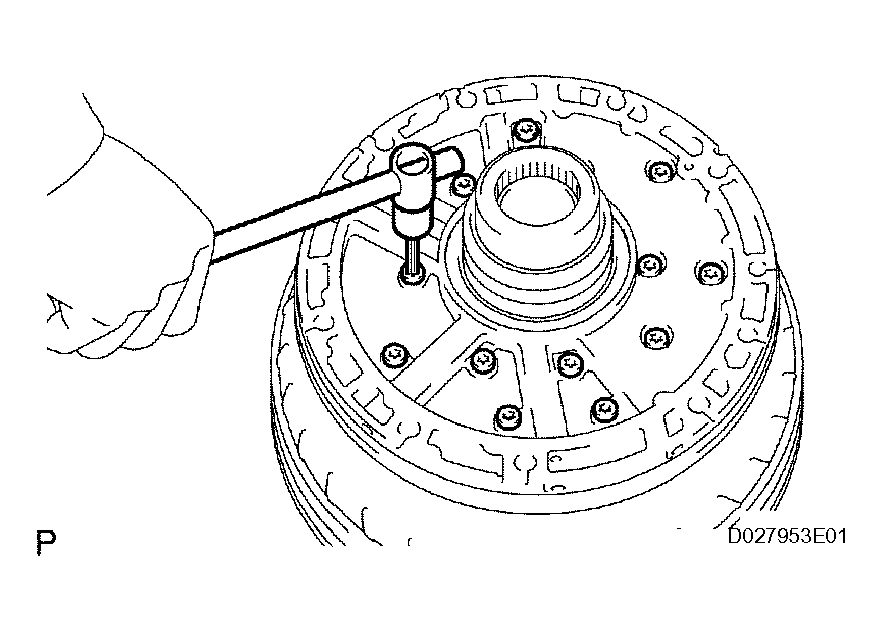

REMOVE STATOR SHAFT ASSEMBLY
1. Remove the 14 bolts, and then remove the stator shaft from the oil pump body.
Fig 4: Identifying Stator Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

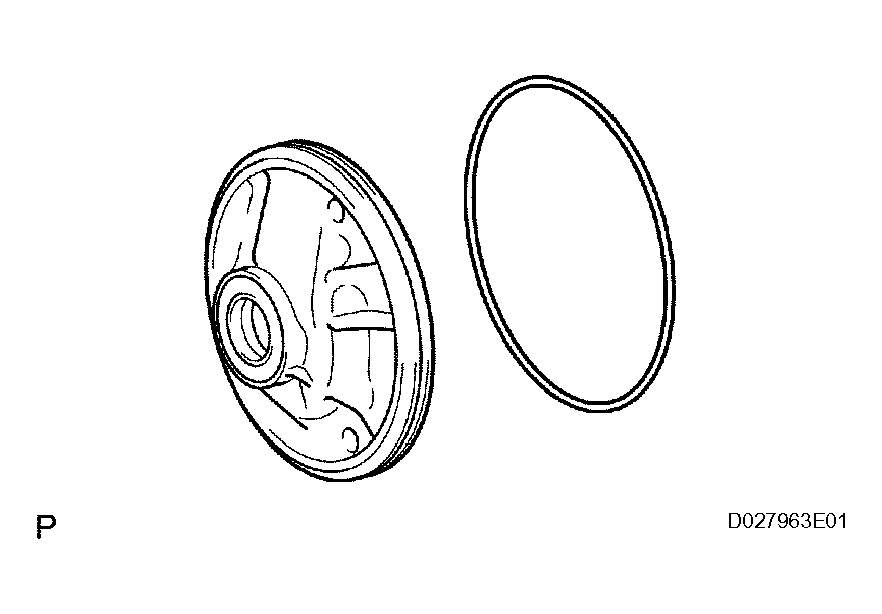

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump body.
2. Remove the oil pump body from the torque converter clutch.
Fig 5: Removing Oil Pump Body From Torque Converter Clutch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY (See INSPECTION )
INSPECT STATOR SHAFT ASSEMBLY (See INSPECTION )
INSPECT CLEARANCE OF OIL PUMP ASSEMBLY
REMOVE FRONT OIL PUMP DRIVE GEAR

Fig 6: Identifying Front Oil Pump Drive Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

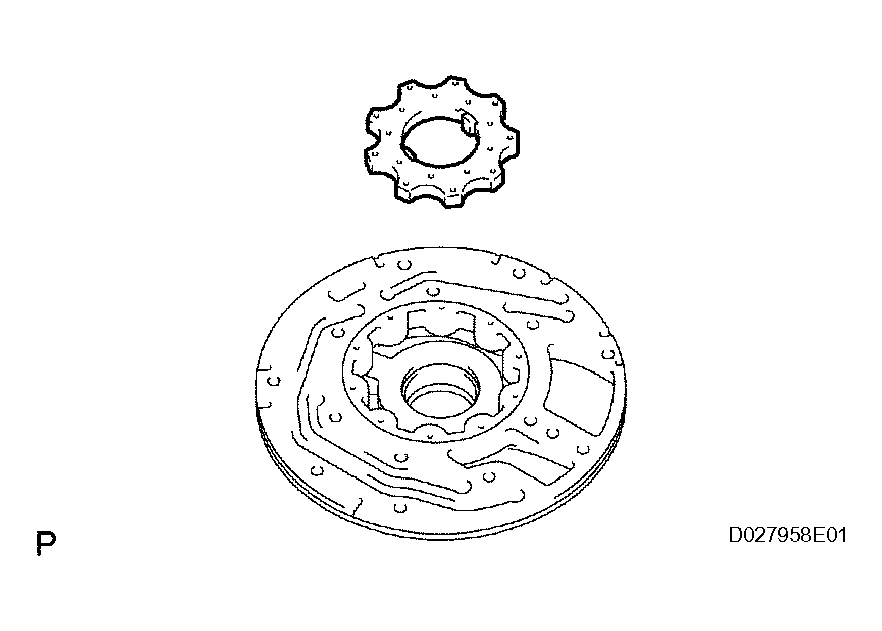

REMOVE FRONT OIL PUMP DRIVEN GEAR

Fig 7: Identifying Front Oil Pump Driven Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

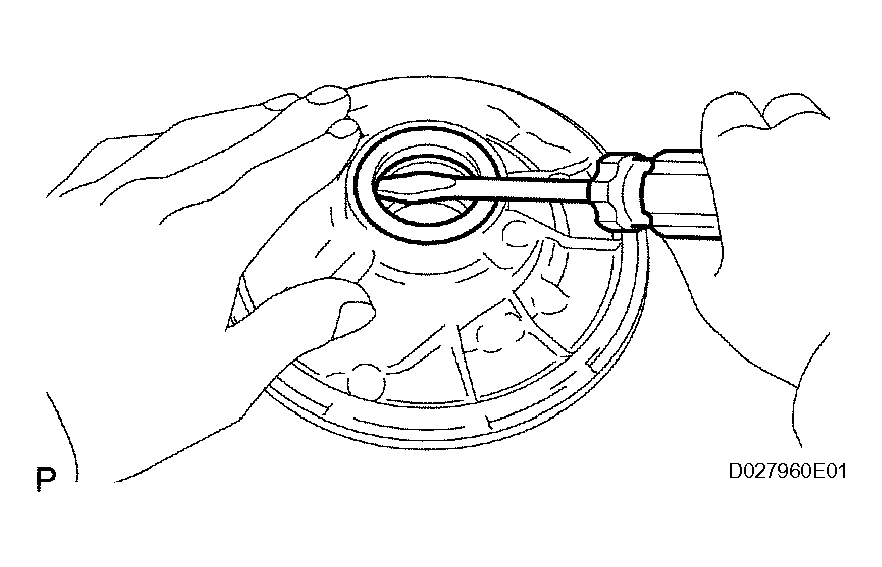

REMOVE FRONT OIL PUMP OIL SEAL
1. Using a screwdriver, remove the oil seal.
NOTE: Be careful not to damage the bushing and oil pump body.

Fig 8: Identifying Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
