Oil Pump: Reassembly

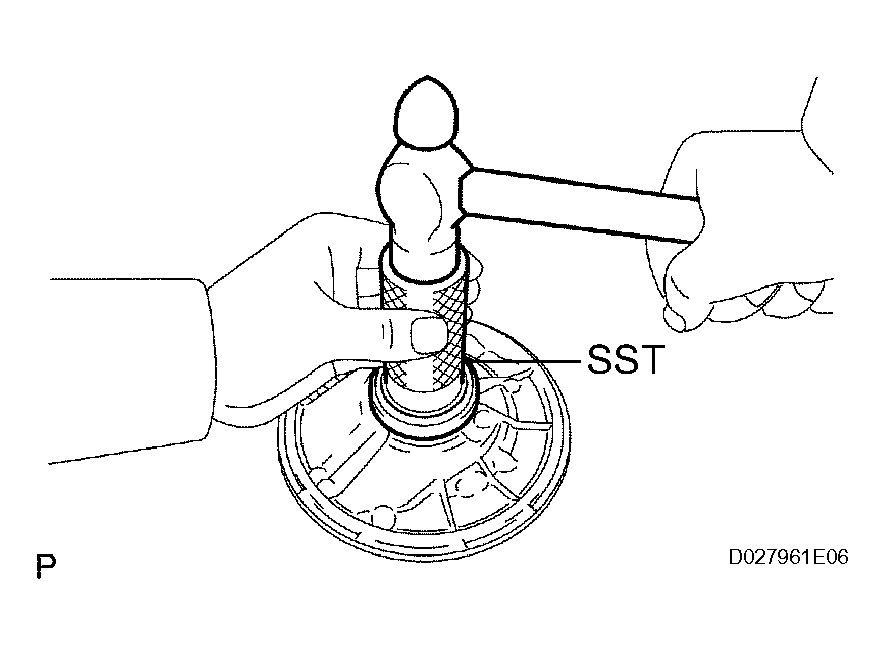

INSTALL FRONT OIL PUMP OIL SEAL
1. Using SST and a hammer, install a new oil seal.
  SST 09350-30020 (09351-32140)

  HINT:

  The oil seal end should be flush with the outer edge of the pump body.
2. Coat the oil seal lip with MP grease.
Fig 1: Identifying Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FIX FRONT OIL PUMP BODY SUB-ASSEMBLY
1. Place the oil pump body on the torque converter clutch.

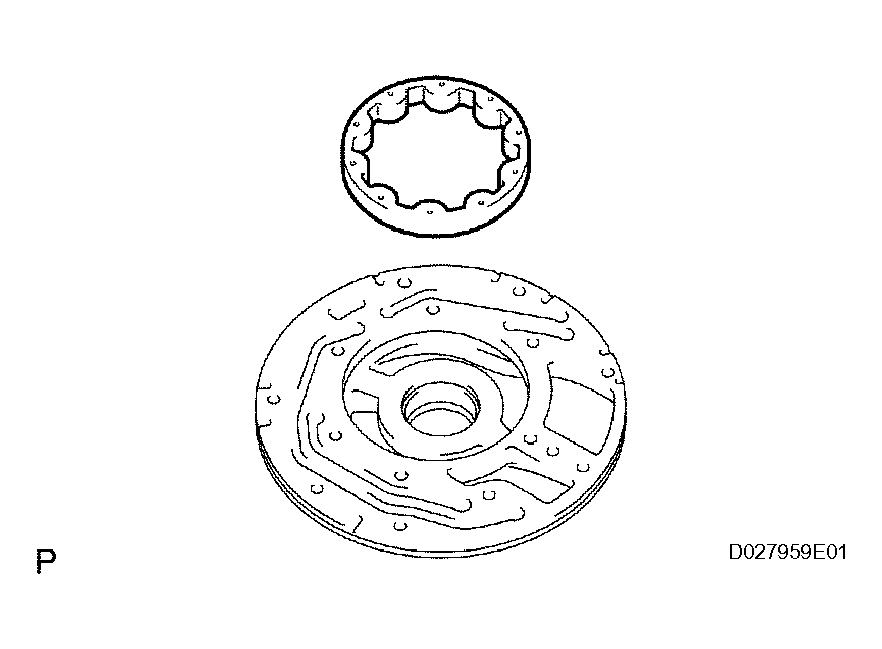

INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the driven gear with ATF.
2. Install the driven gear to the oil pump body.
Fig 2: Identifying Front Oil Pump Driven Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

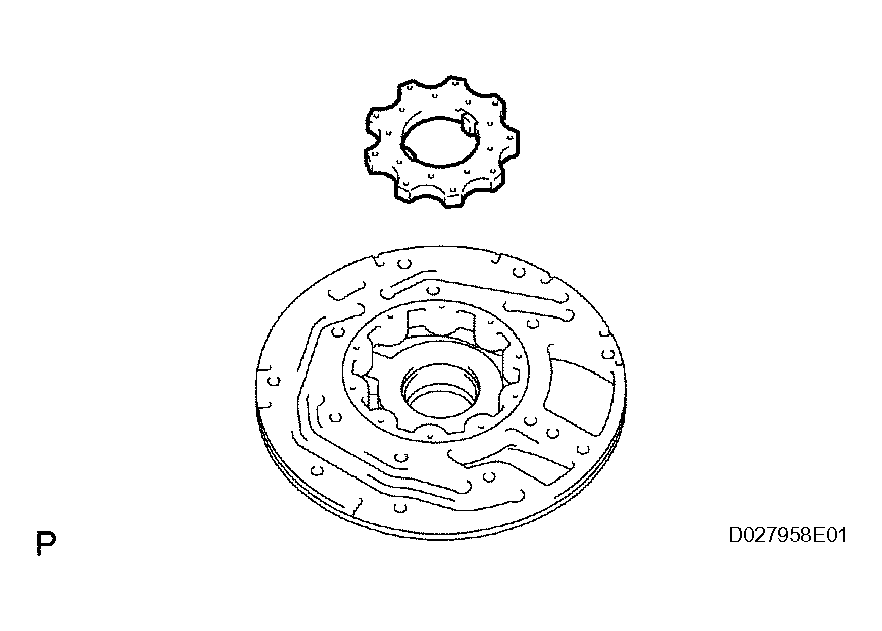

INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the drive gear with ATF.
2. Install the drive gear to the oil pump body.
Fig 3: Identifying Front Oil Pump Drive Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

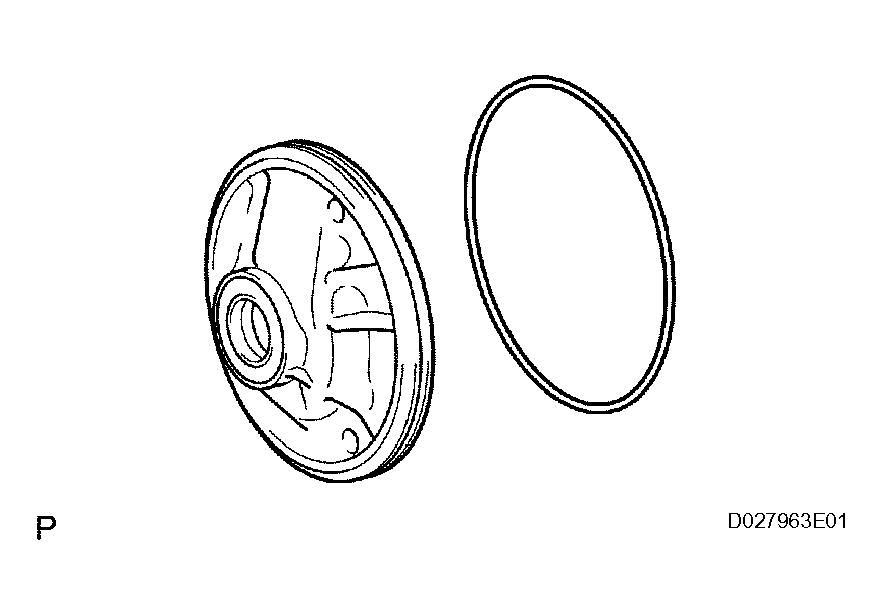

INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump body.
Fig 4: Identifying Front Oil Pump Body O-Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

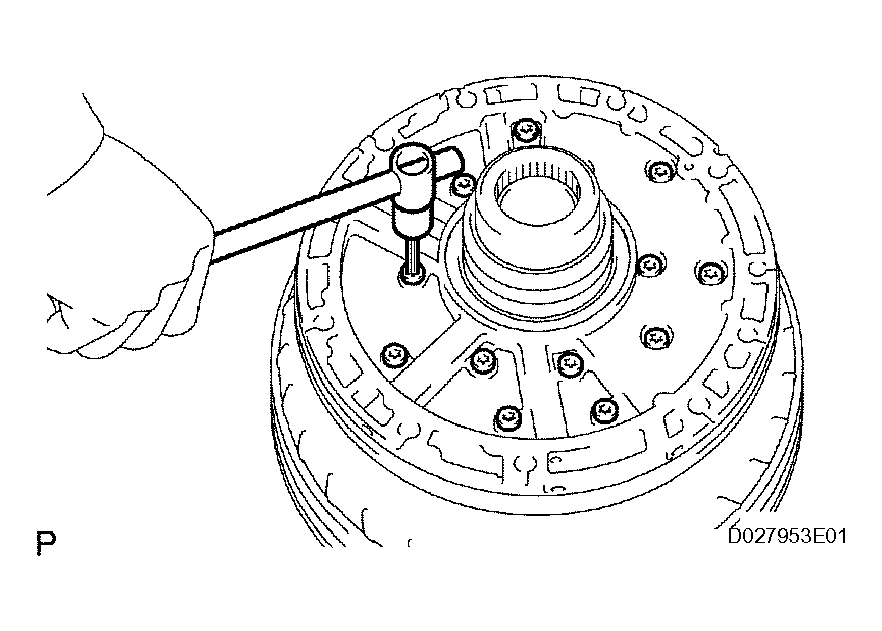

INSTALL STATOR SHAFT ASSEMBLY
1. Install the stator shaft with each bolt hole.
2. Install the 14 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
Fig 5: Identifying Stator Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

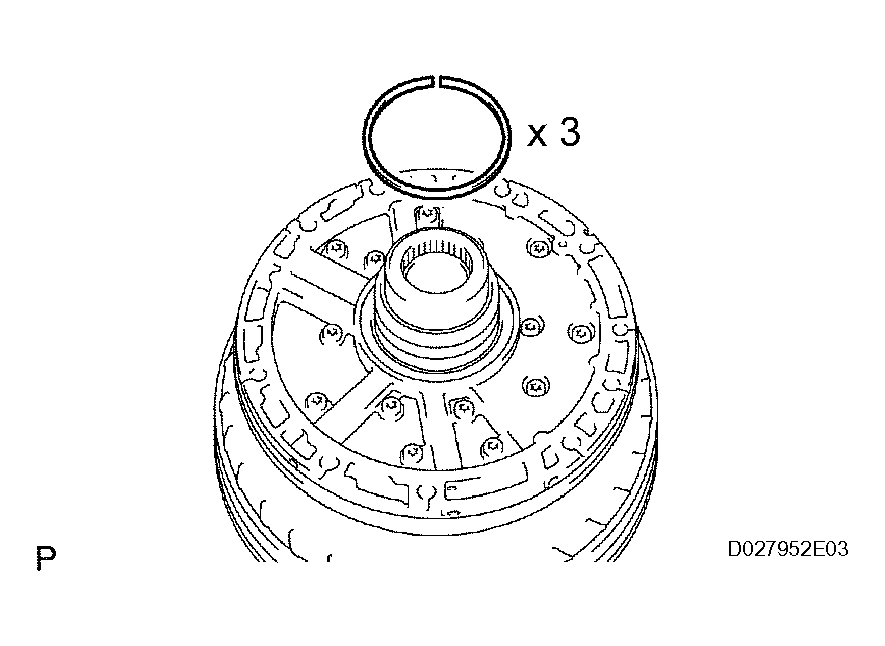

INSTALL CLUTCH DRUM OIL SEAL RING
1. Coat the 3 oil seal rings with ATF.
2. Squeeze the ends of the 3 oil seal rings together with the overlap distance 8 mm (0.314 in.) or less, and then install them to the starter shaft groove.
  NOTE: Do not over-spread the ring ends.
3. HINT:
  After installing the oil seal rings, check that they rotate smoothly.
INSPECT OIL PUMP DRIVE GEAR ROTATION (See INSPECTION )
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump assembly.
Fig 6: Identifying Clutch Drum Oil Seal Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

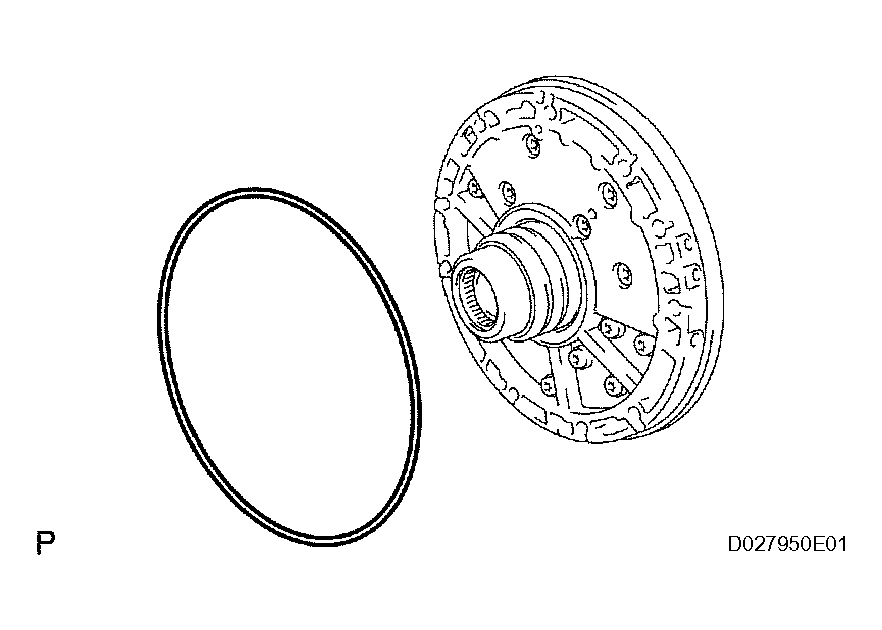

Fig 7: Identifying O-Ring To Oil Pump Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
