Park / Neutral Position Switch: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
  3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Using a screwdriver, pry out the lock washer.
    2. Remove the lock nut and lock washer.
    3. Remove the bolt and park/neutral position switch.

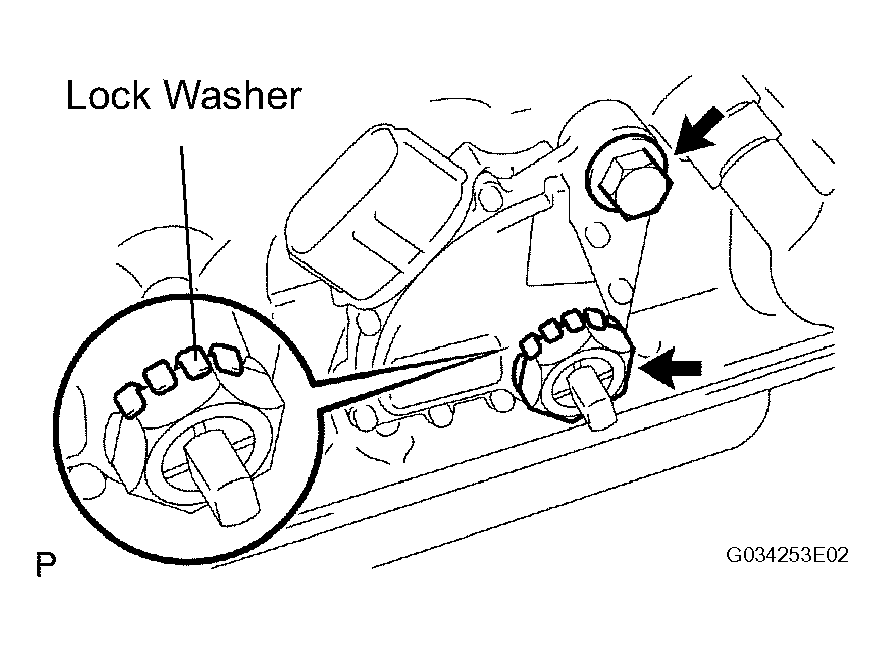

Fig 1: Identifying Lock Nut And Lock Washer
G04062669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
