System Diagram

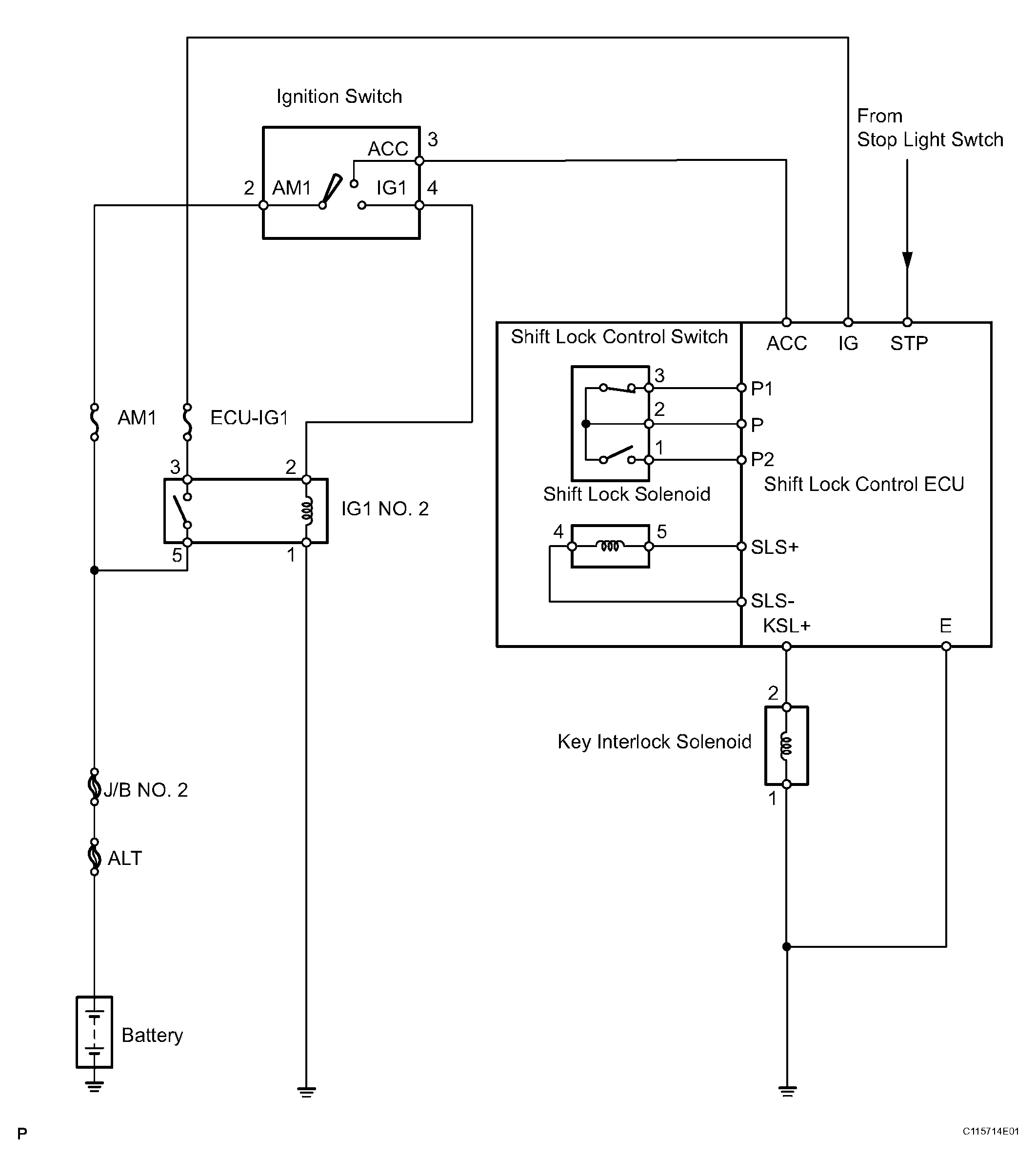

Fig 1: System Diagram - Shift Lock System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
