Transmission Wire: Installation

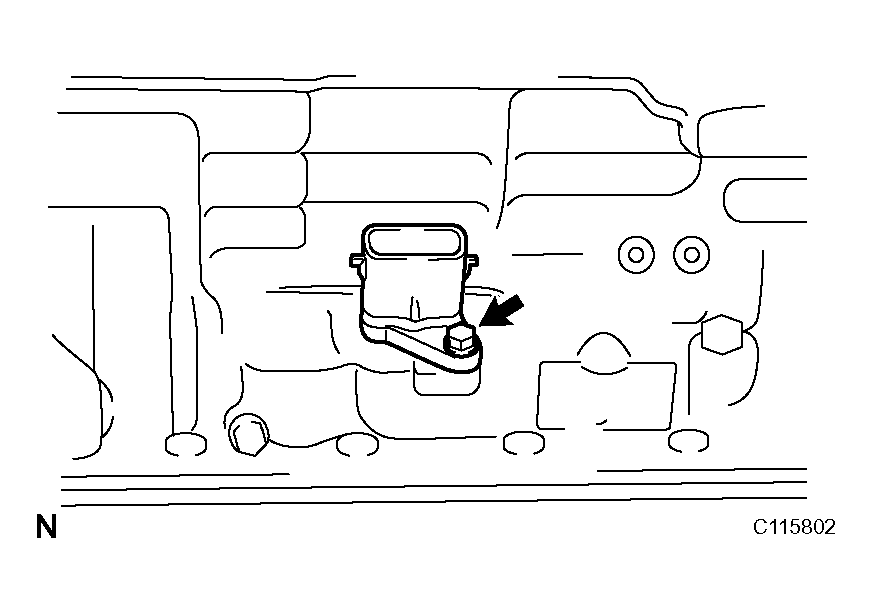

1. Install the transmission wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

2. Connect the transmission wire connector.

Fig 1: Identifying Transmission Wire With Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

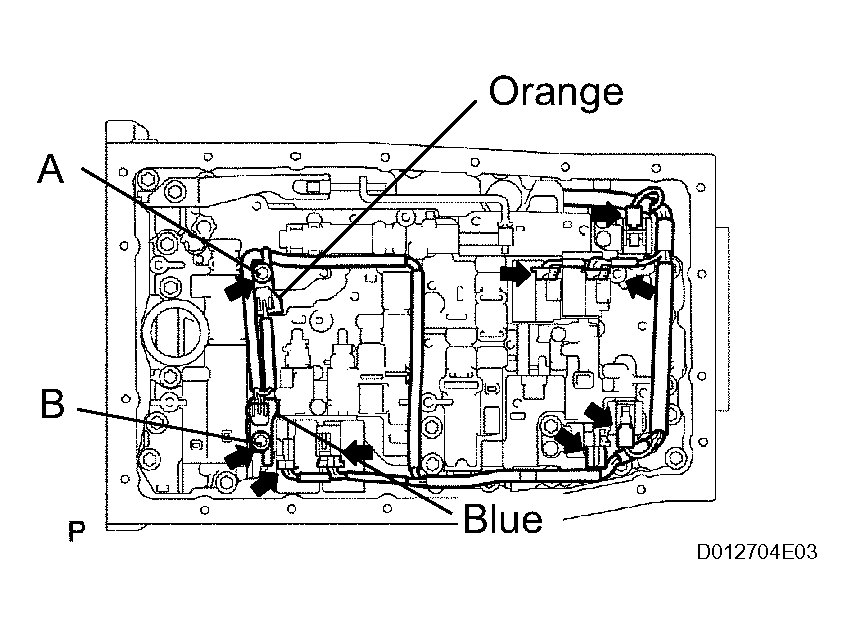

1. Connect the 7 connectors to the solenoid valves.
2. Install the clamp with the 2 bolts.

   Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf) for bolt A

   11 N*m (110 kgf*cm, 8 ft.*lbf) for bolt B

   HINT:

   Each bolt length is indicated below.

   Standard bolt length:

   36 mm (1.42 in.) for bolt A

   12 mm (0.47 in.) for bolt B

3. Connect the ATF temperature sensor.

Fig 2: Identifying Clamp With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new O-ring and the oil strainer with the 4 bolts.

   Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

   Fig 3: Identifying O-Ring And Oil Strainer With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Remove the gasket and be careful not to spill oil on the contacting surfaces of the transmission case and oil pan.

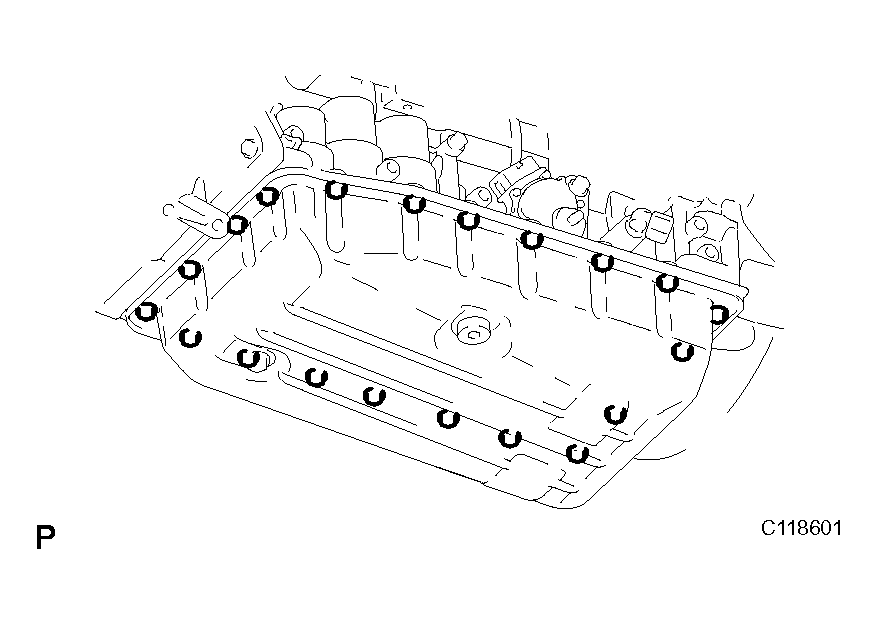

1. Install the oil pan with the 20 bolts.

   Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)

Fig 4: Identifying Oil Pan With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform initialization (INITIALIZATION ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

1. Add AUTOMATIC TRANSMISSION FLUID  .

1. Inspect the AUTOMATIC TRANSMISSION FLUID  .
