Valve Body Assembly: Disassembly

REMOVE SHIFT SOLENOID VALVE
1. Remove the bolt, lock plate, 2 pins and shift solenoid valve SLT and SL1.
2. Remove the bolt, lock plate, 2 pins and shift solenoid valves SLU and SL2.
3. Remove the 2 bolts and shift solenoid valve SR.
4. Remove the bolt and shift solenoid valve S1.
5. Remove the bolt and shift solenoid valve S2.

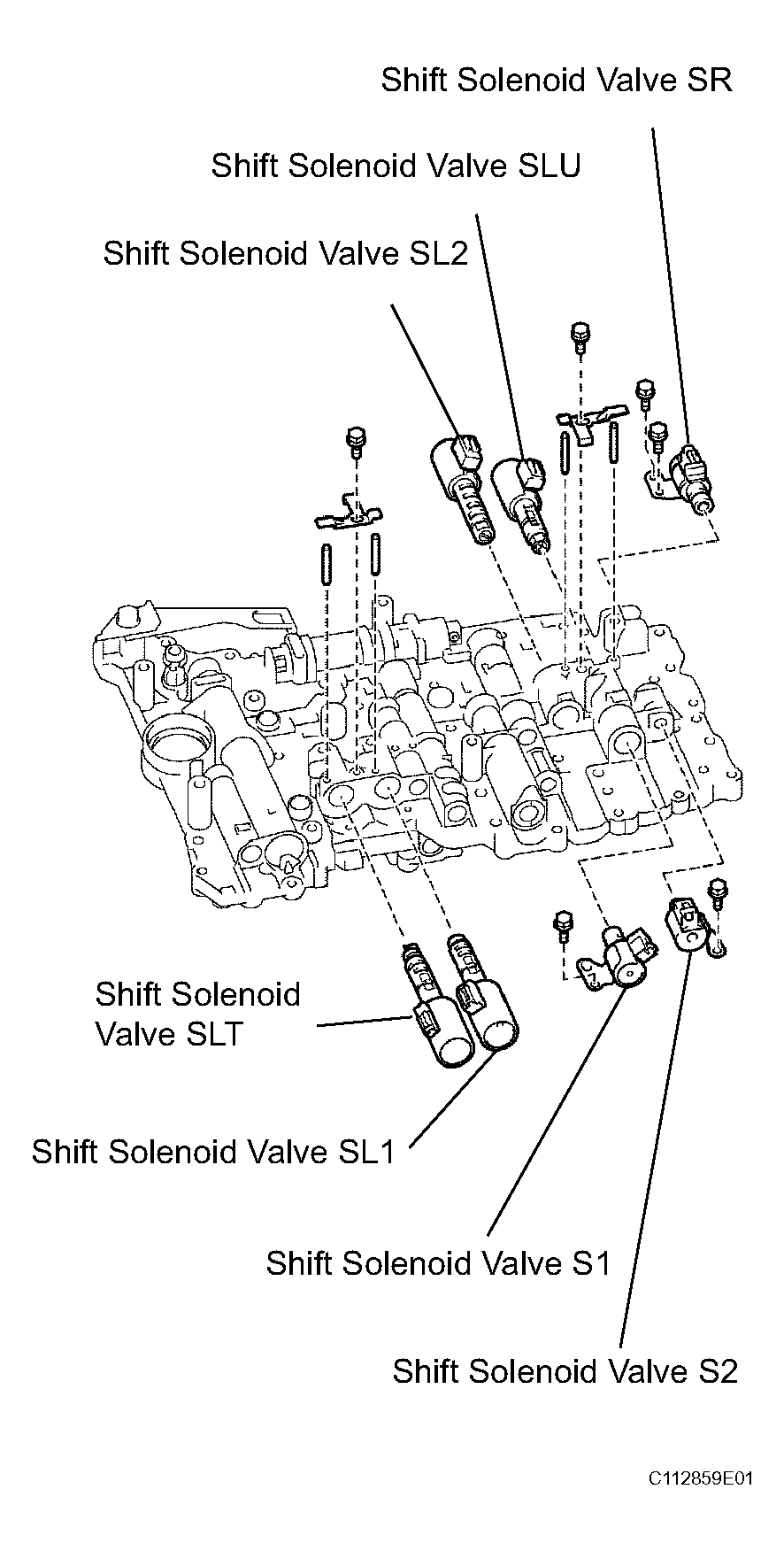

Fig 1: Identifying Shift Solenoid Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
