Valve Body Assembly: Reassembly

Install the shift solenoid valve S2 with the bolt.
Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)
Install the shift solenoid valve S1 with the bolt.
Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)
Install the shift solenoid valve SR with the 2 bolts.
Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)
Install the shift solenoid valve SLU and SL2 with the 2 pins, lock plate and bolt.
Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)
Install the shift solenoid valve SLT and SL1 with the 2 pins, lock plate and bolt.
Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)

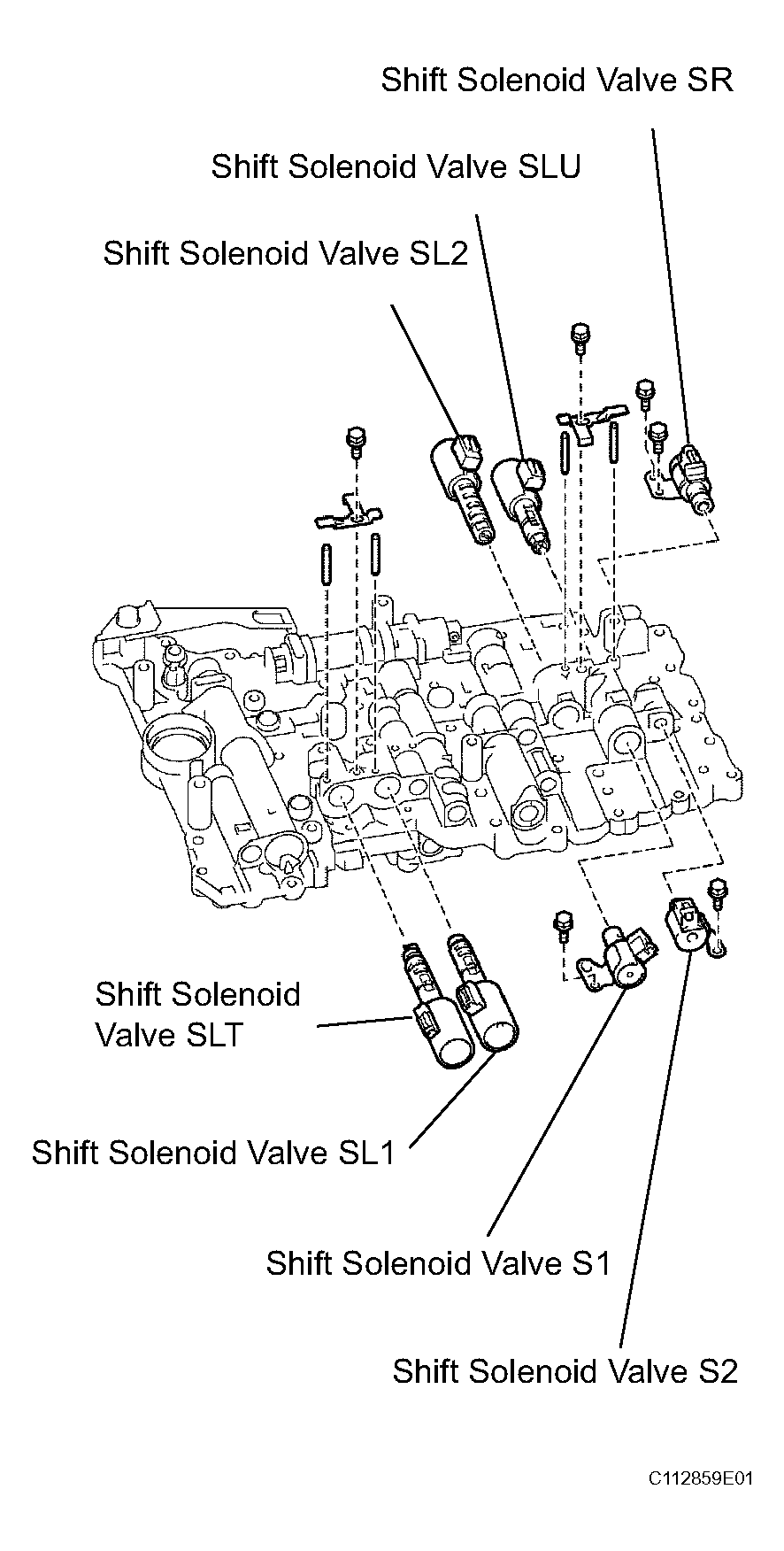

Fig 1: Identifying Shift Solenoid Valve
