Valve Body: Disassembly

  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. Remove the 19 bolts.
    2. Remove the valve body.

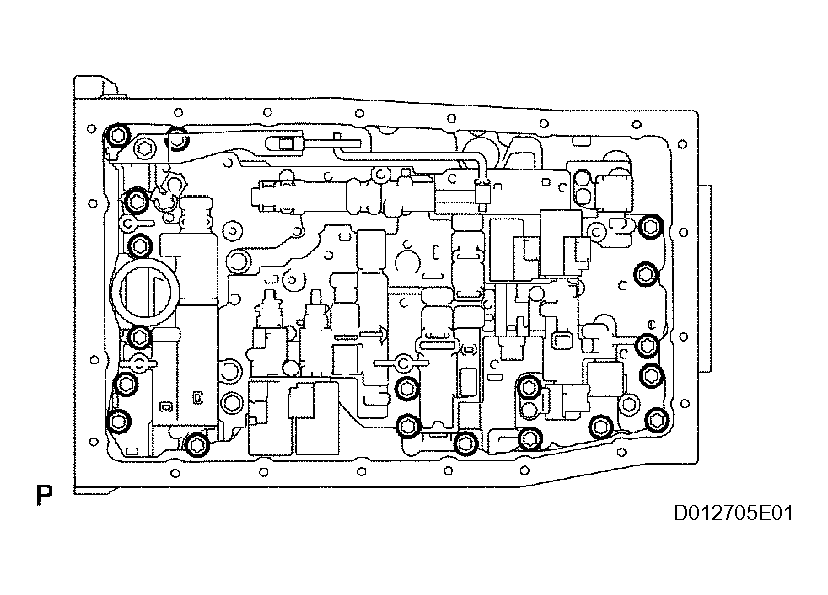

    Fig 1: Identifying Transmission Valve Body Assembly
    G04063053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT SOLENOID VALVE SR
    1. Remove the 2 bolts and shift solenoid valve SR.

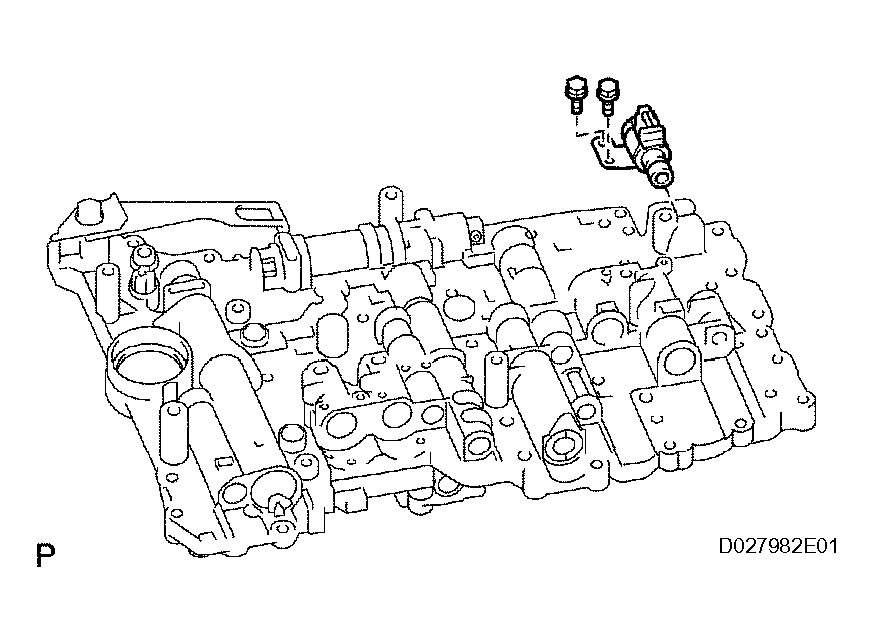

    Fig 2: Identifying Shift Solenoid Valve SR
    G04063054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE SLU
    1. Remove the bolt, 2 straight pins and solenoid lock plate.
    2. Remove the shift solenoid valve SLU.

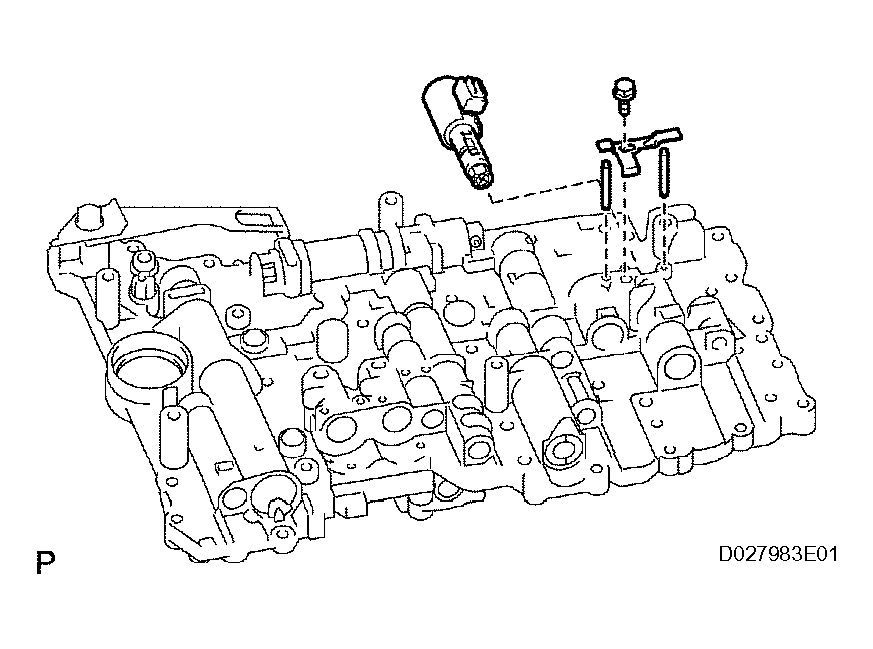

    Fig 3: Identifying Shift Solenoid Valve SLU
    G04063055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE SL2

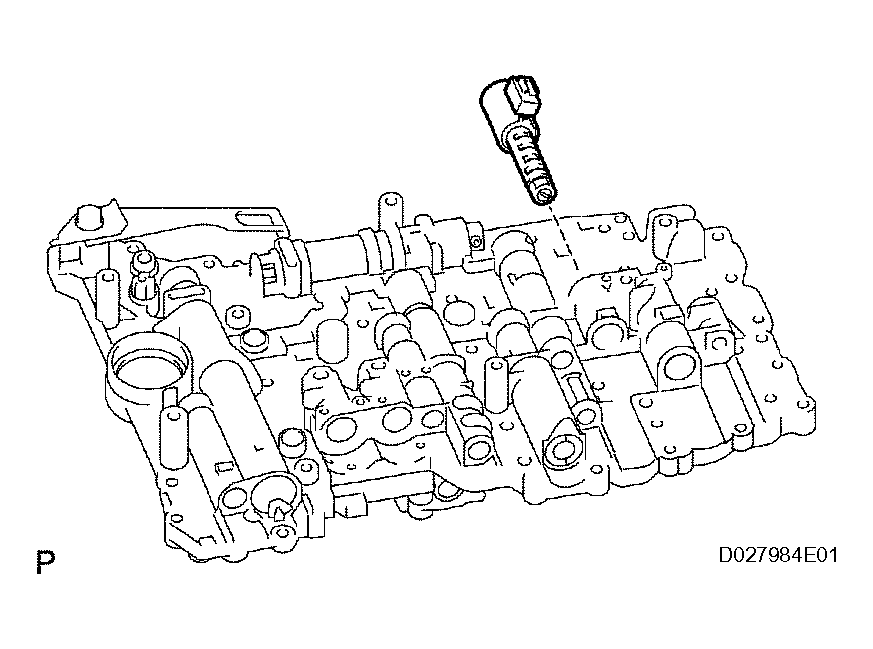

    Fig 4: Identifying Shift Solenoid Valve SL2
    G04063056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the bolt, 2 straight pins and solenoid lock plate.
    2. Remove the shift solenoid valve SLT.

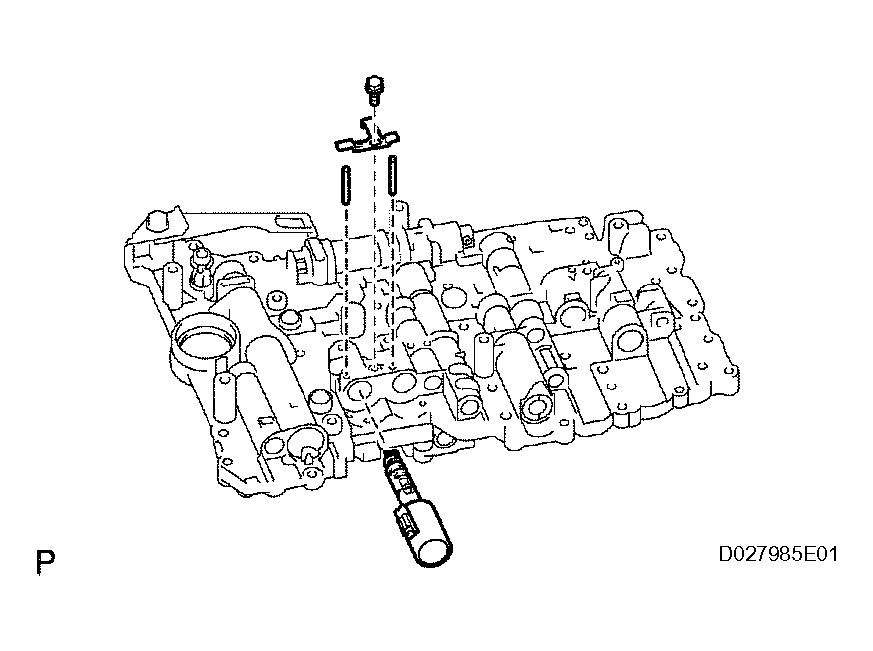

    Fig 5: Identifying Shift Solenoid Valve SLT
    G04063057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT SOLENOID VALVE SL1
    1. Remove the shift solenoid valve SL1.

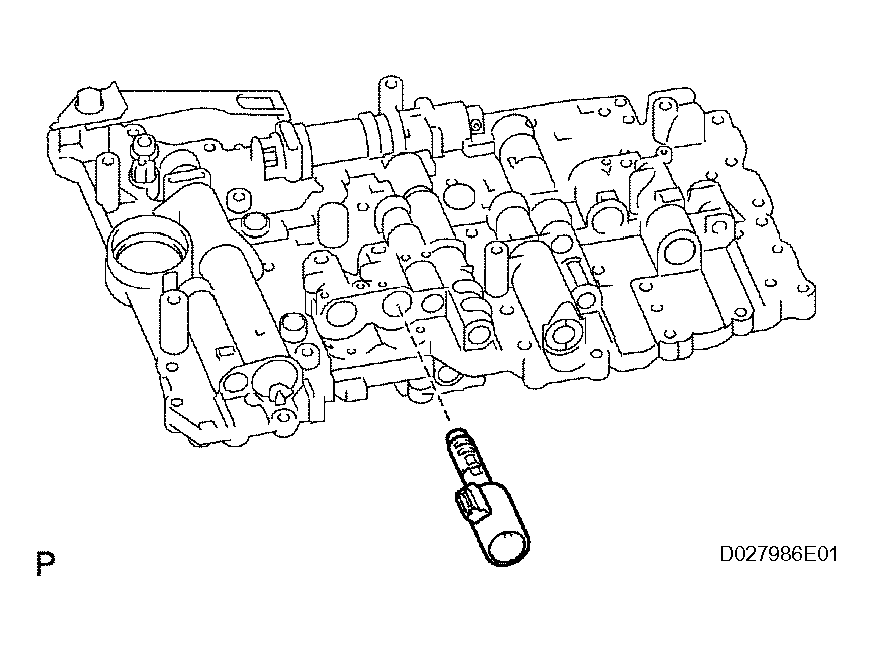

    Fig 6: Identifying Shift Solenoid Valve SL1
    G04063058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SHIFT SOLENOID VALVE S1
    1. Remove the bolt and shift solenoid valve S1.

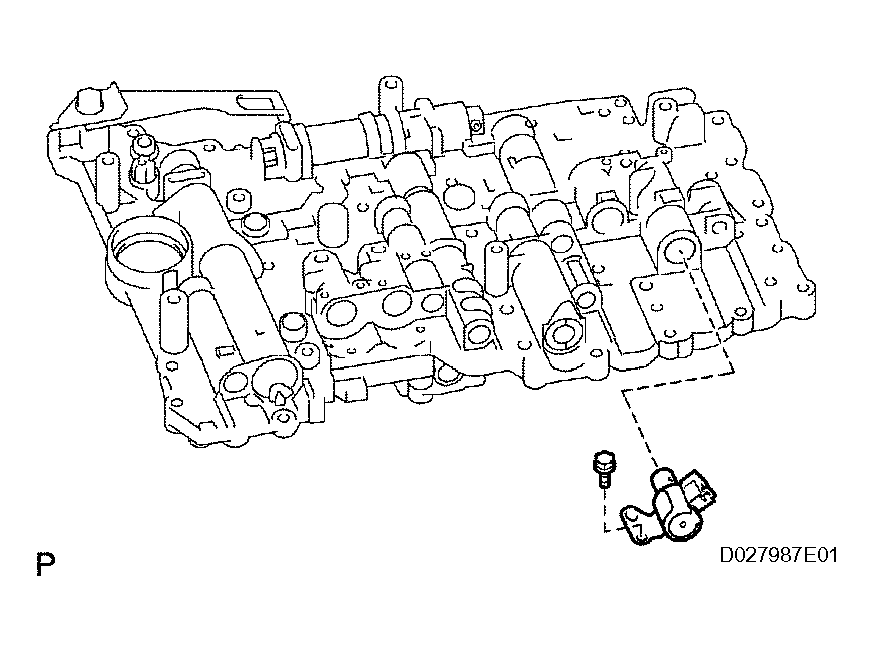

    Fig 7: Identifying Shift Solenoid Valve S1
    G04063059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT SOLENOID VALVE S2
    1. Remove the bolt and shift solenoid valve S2.
    2. Remove the O-ring from the shift solenoid valve S2.
