Valve Body: Reassembly

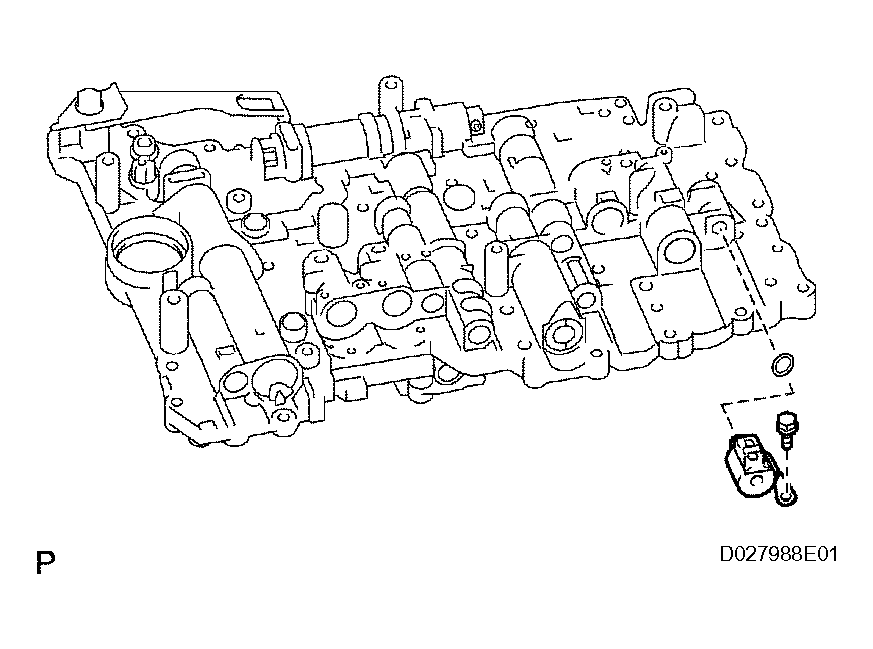

INSTALL SHIFT SOLENOID VALVE S2
1. Install the O-ring to the shift solenoid valve S2.
2. Install the shift solenoid valve S2 with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

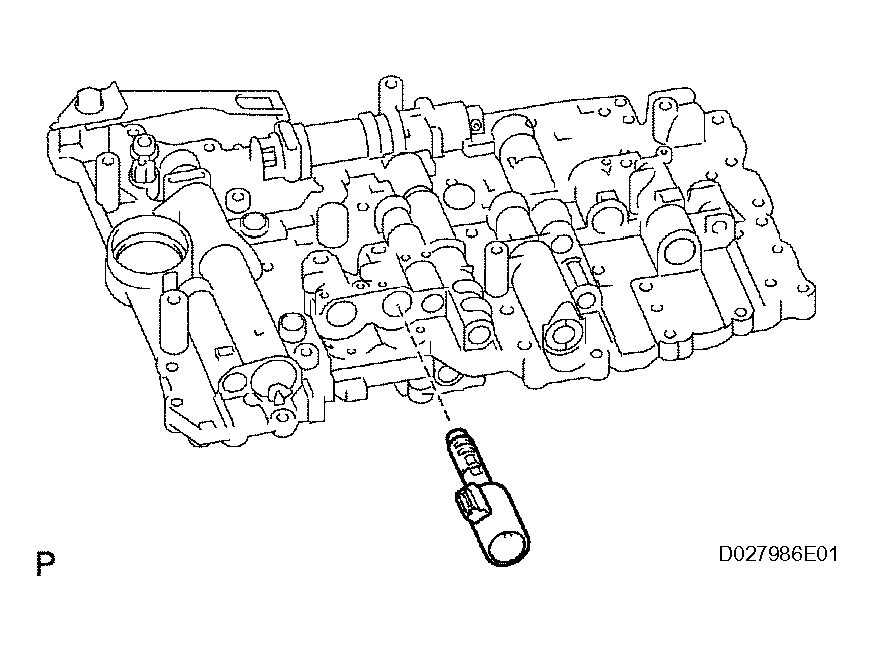

Fig 1: Identifying Shift Solenoid Valve S2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

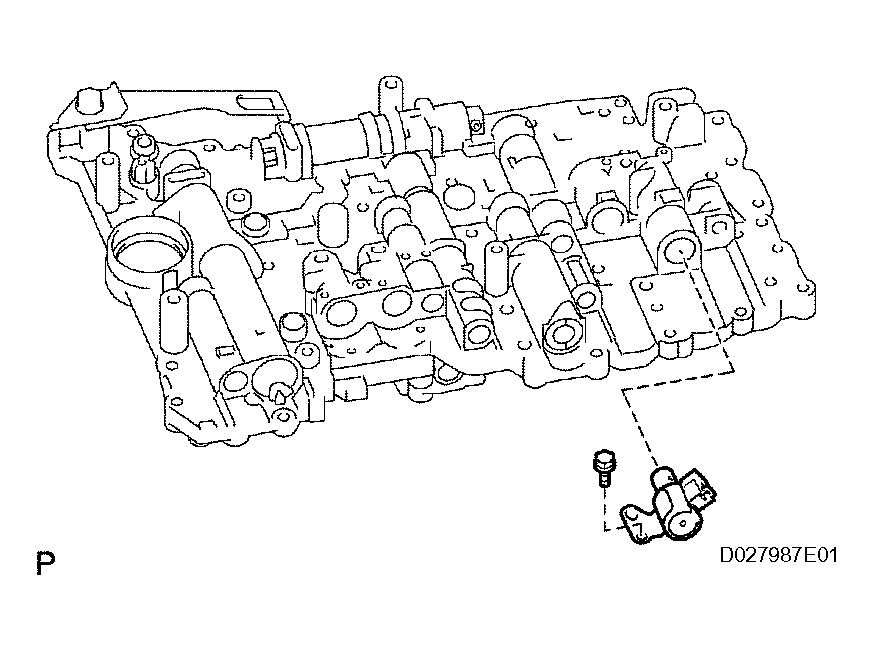

INSTALL SHIFT SOLENOID VALVE S1
1. Install the O-ring to the shift solenoid valve S1.
2. Install the shift solenoid valve S1 with the bolt.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
Fig 2: Identifying Shift Solenoid Valve S2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Shift Solenoid Valve S1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL1

Fig 4: Identifying Shift Solenoid Valve Sl1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

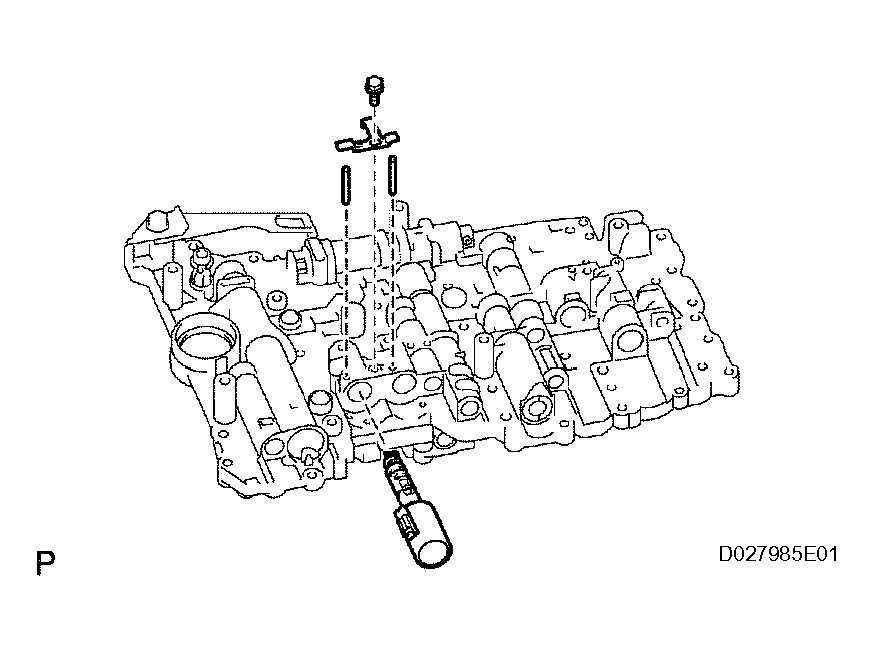

INSTALL SHIFT SOLENOID VALVE SLT
1. Install the shift solenoid valve SLT.
2. Install the, 2 straight pins and solenoid lock plate with the bolt.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
Fig 5: Identifying Shift Solenoid Valve SLT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

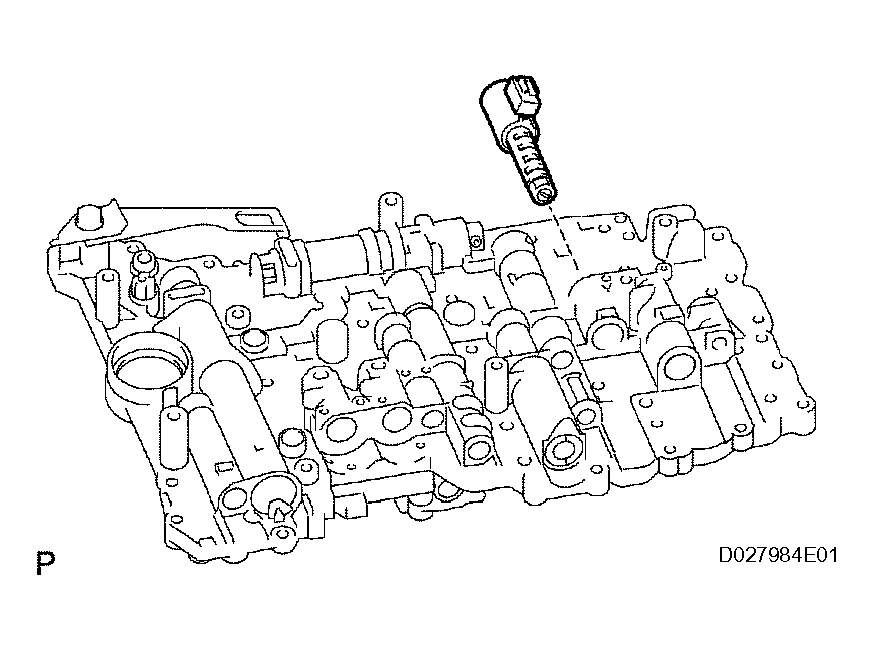

INSTALL SHIFT SOLENOID VALVE SL2
1. Install the shift solenoid valve SL2.
Fig 6: Identifying Shift Solenoid Valve SL2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

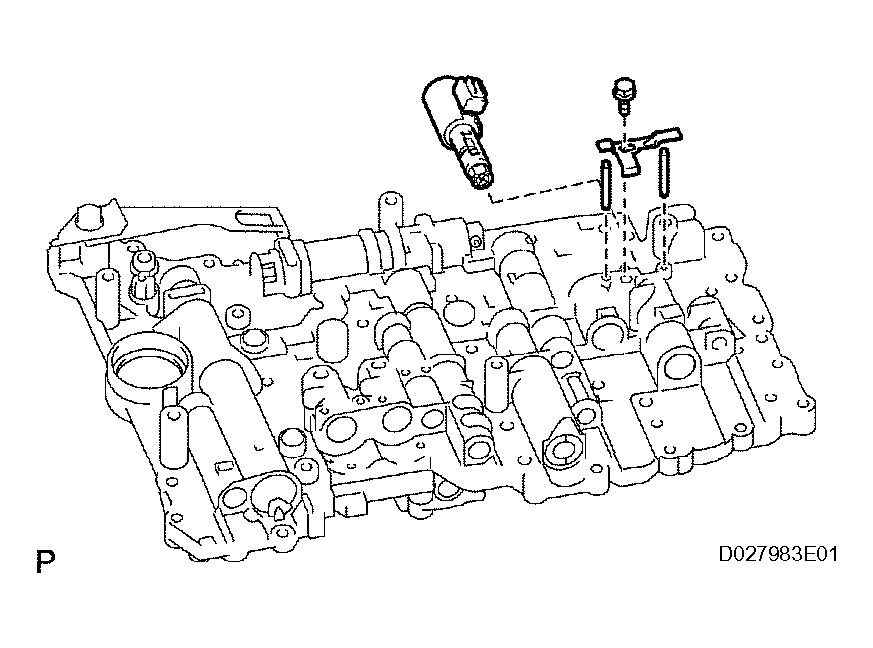

INSTALL SHIFT SOLENOID VALVE SLU
1. Install the shift solenoid valve SLU.
2. Install the bolt, 2 straight pins and solenoid lock plate.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
Fig 7: Identifying Shift Solenoid Valve SLU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

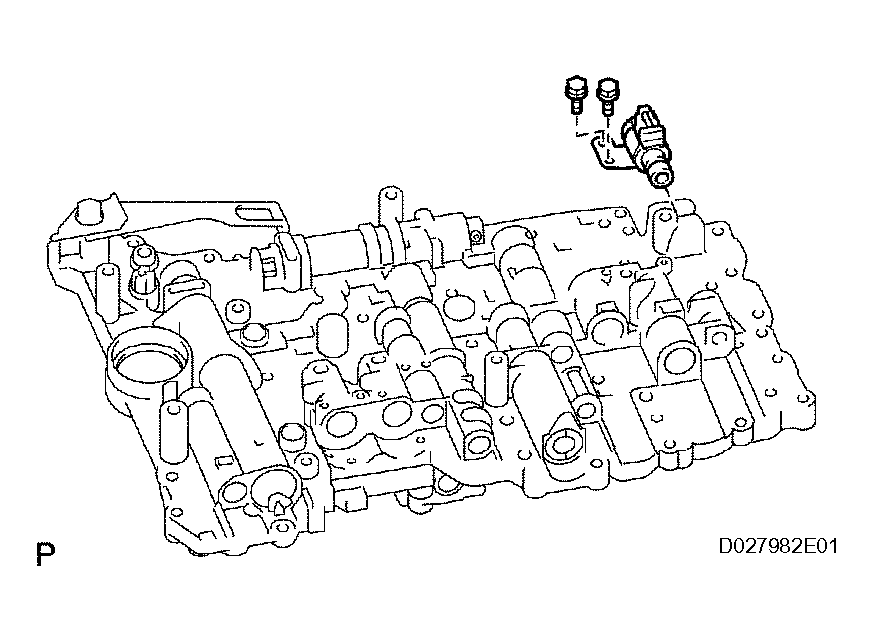

INSTALL SHIFT SOLENOID VALVE SR
1. Install the and shift solenoid valve SR with the 2 bolts.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
Fig 8: Identifying Shift Solenoid Valve SR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION VALVE BODY ASSEMBLY

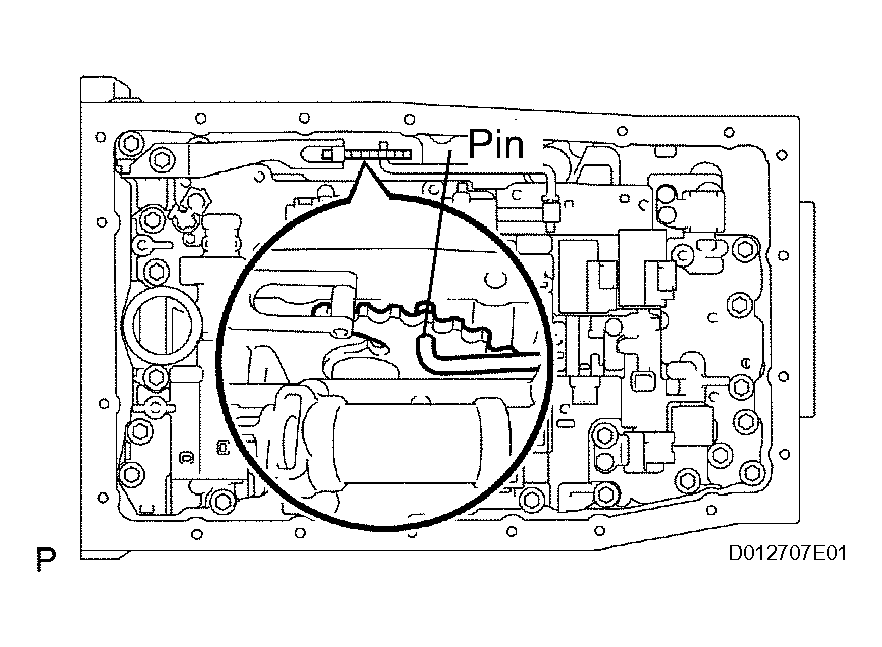

1. Align the groove of the manual valve with the pin of the lever.

  Fig 9: Identifying Transmission Valve Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

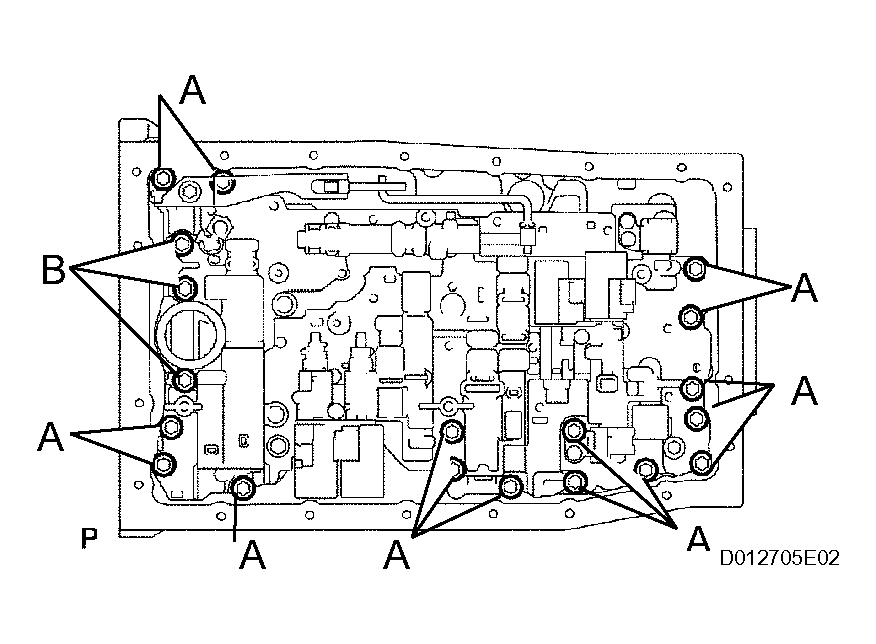

2. Install the 19 bolts.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

  HINT:

  Each bolt length is indicated below.

  Standard bolt length:

  25 mm (0.98 in.) for bolt A

  36 mm (1.42 in.) for bolt B

  Fig 10: Identifying Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
