Center Differential Lock Switch: Inspection

  1. INSPECT DIFFERENTIAL LOCK INDICATOR SWITCH
    1. Check the continuity between each terminal.

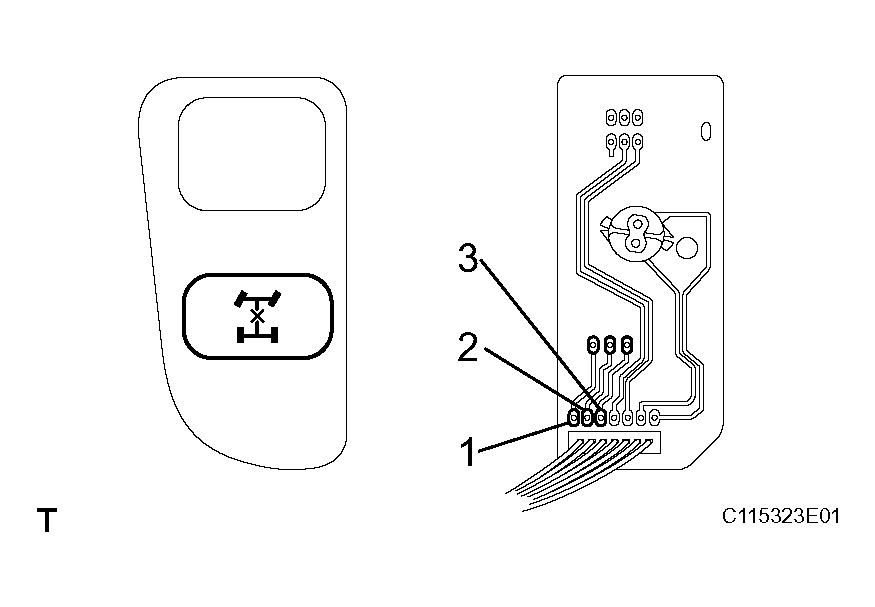

    Fig 1: Identifying Differential Lock Indicator Switch Terminals
    G04063231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

    TESTER CONNECTION AND SPECIFIED CONDITION

    Center Differential Lock Switch Condition Tester Connection Specified Condition
    ON 1 - 2 No continuity
    ON 1 - 3 No continuity
    ON 2 - 3 Continuity
    OFF 1 - 2 Continuity
    OFF 1 - 3 No continuity
    OFF 2 - 3 No continuity
