Front Extension Housing: Disassembly

1. Using a snap ring expander, remove the snap ring.
2. Using SST, remove the drive clutch hub.

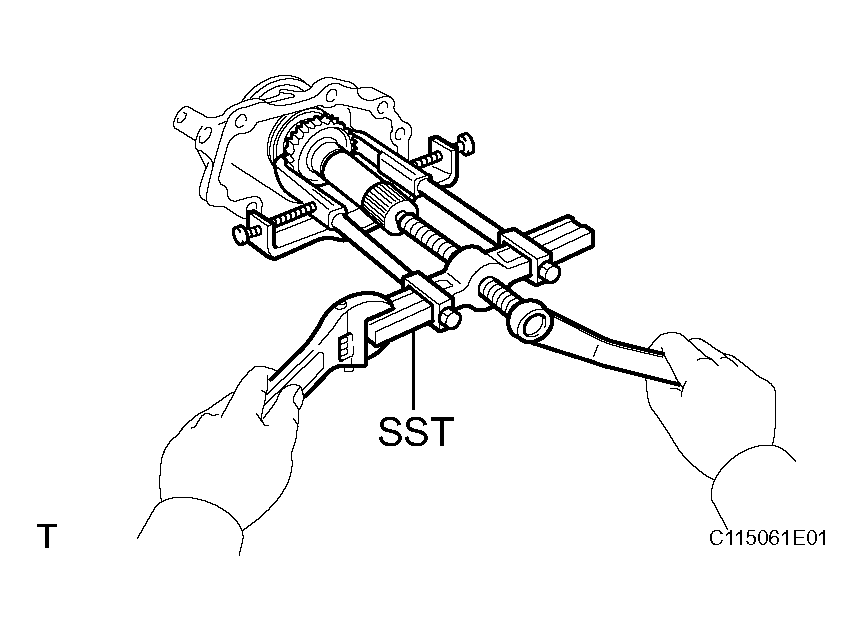

Fig 1: Identifying Drive Clutch Hub

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04021, 09957-04010, 09958-04011)

1. Using a plastic-faced hammer, tap out the output shaft.

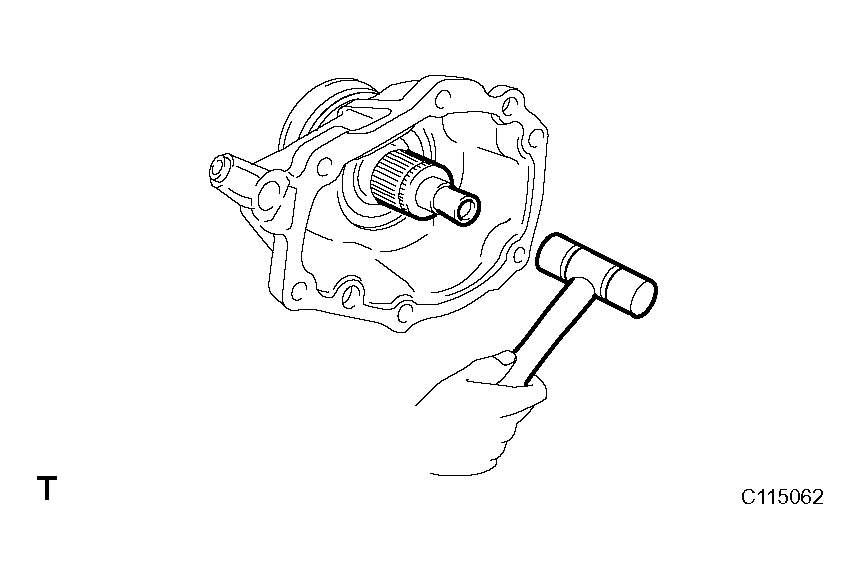

Fig 2: Identifying Front Output Shaft

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, remove the dust deflector from the output shaft.

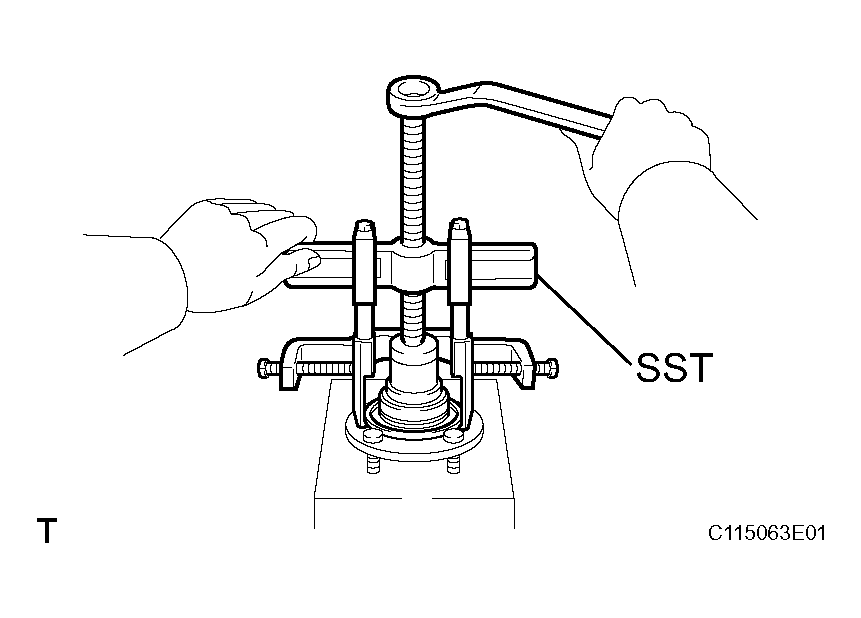

   Fig 3: Identifying Dust Deflector And Output Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04051, 09957-04010, 09958-04011)

2. Using a screwdriver and a hammer, tap the dust deflector and remove it from the extension housing.

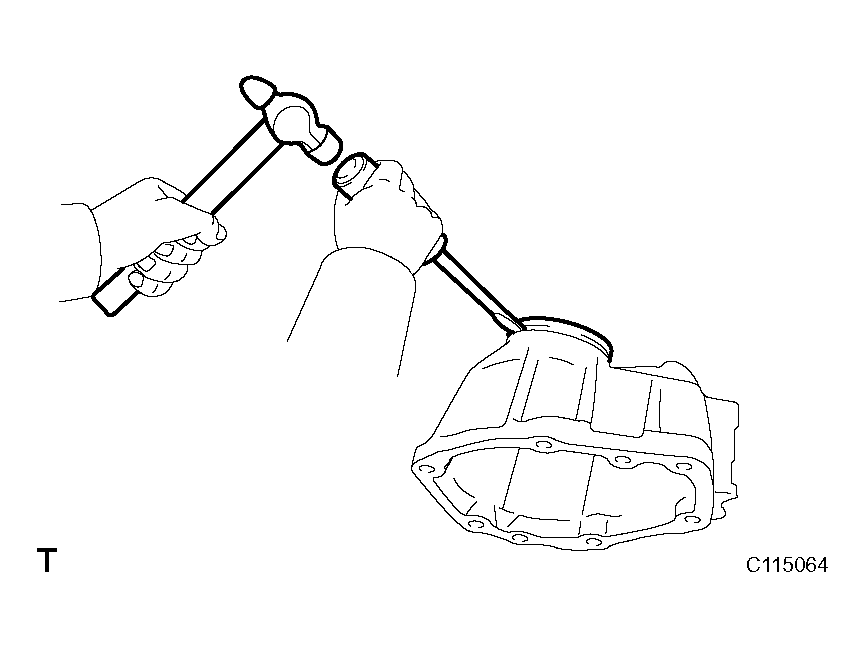

Fig 4: Identifying Dust Deflector And Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, pry out the oil seal from the front extension housing.

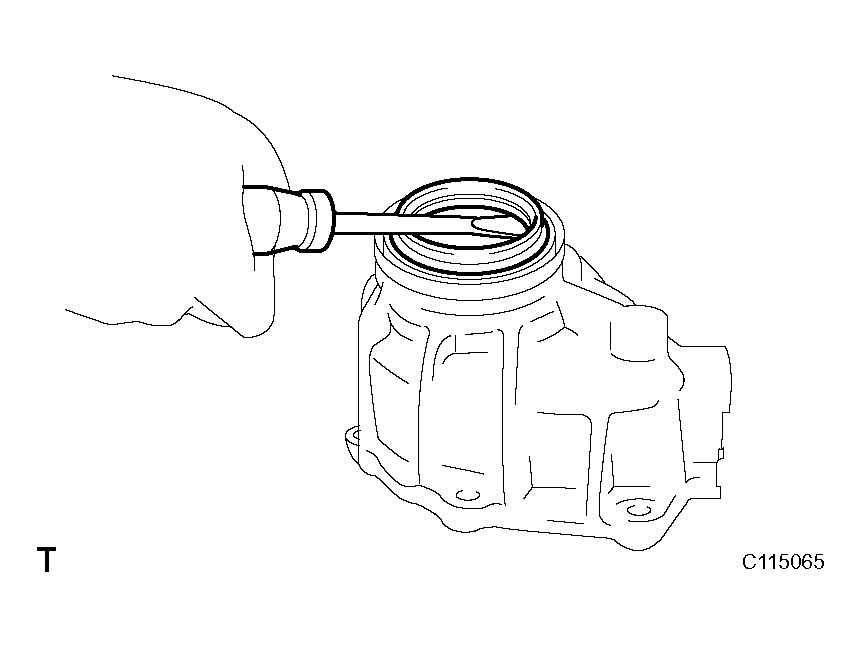

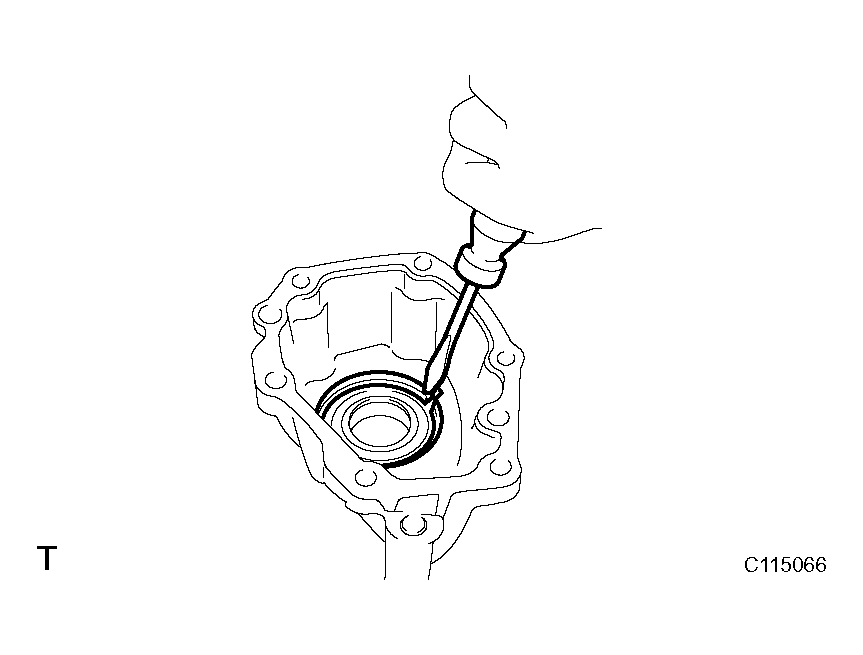

Fig 5: Identifying Oil Seal And Front Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the snap ring.
   Fig 6: Identifying Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, press out the ball bearing.

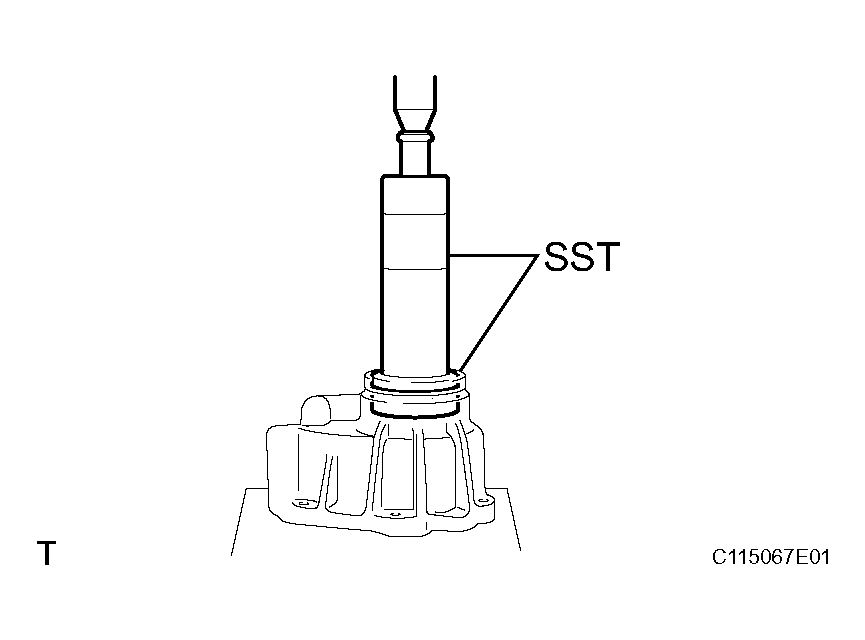

Fig 7: Identifying Ball Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09316-60011 (09316-00011, 09316-00071)
