Input Shaft: Disassembly

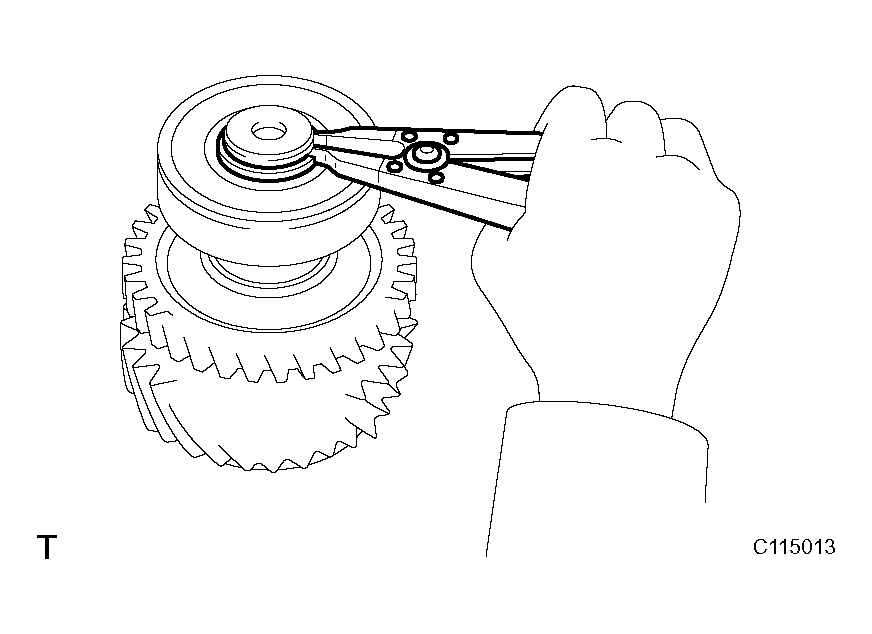

1. Using a snap ring expander, remove the snap ring.
   Fig 1: Identifying Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

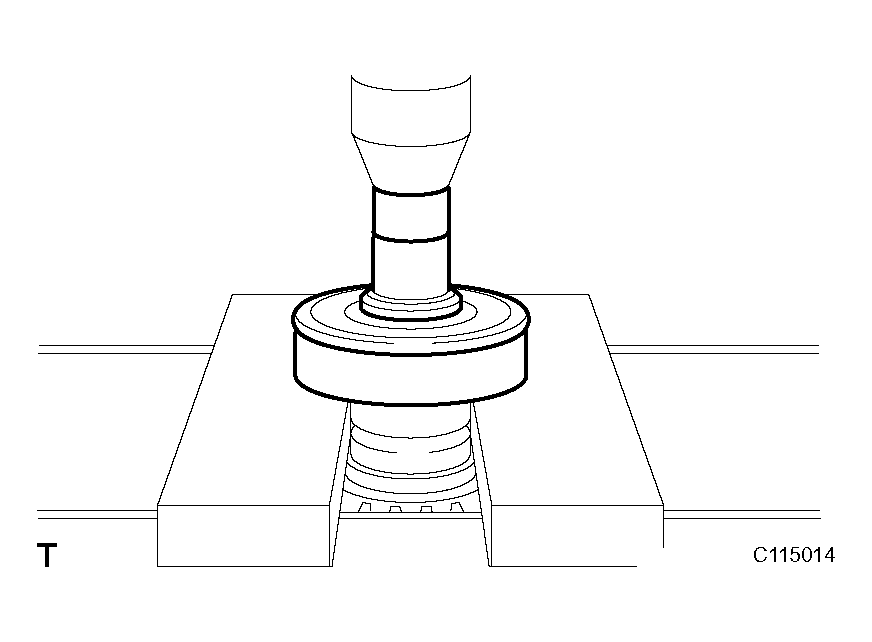

2. Using a socket wrench and press, press out the rear ball bearing.

Fig 2: Identifying Rear Ball Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a snap ring expander, remove the snap ring.

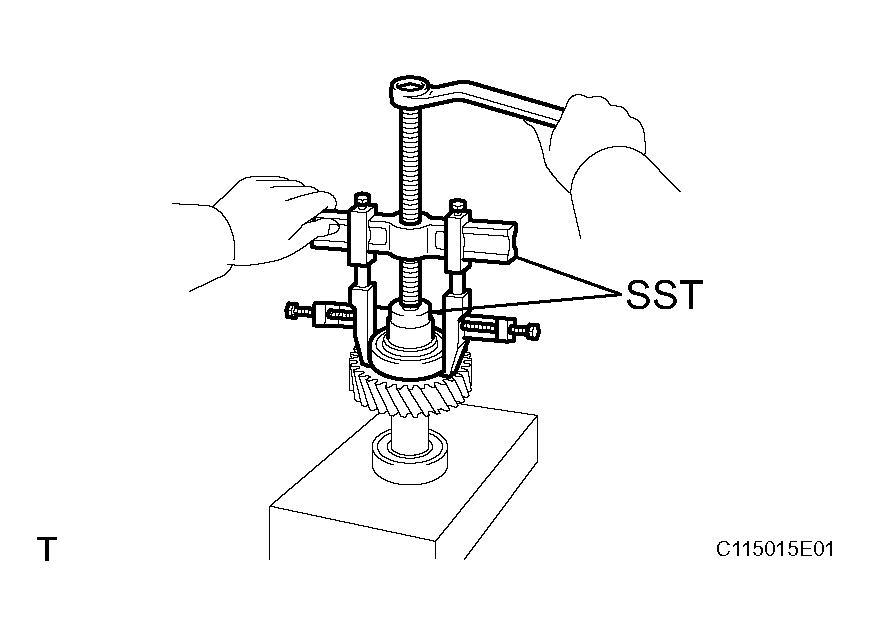

2. Using SST, remove the front ball bearing.

Fig 3: Identifying Front Ball Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04011, 09957-04010, 09958-04011), 09950-60010 (09951-00400)
