Input Shaft: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL FRONT BALL BEARING
   1. Using SST and a press, press in a new ball bearing.

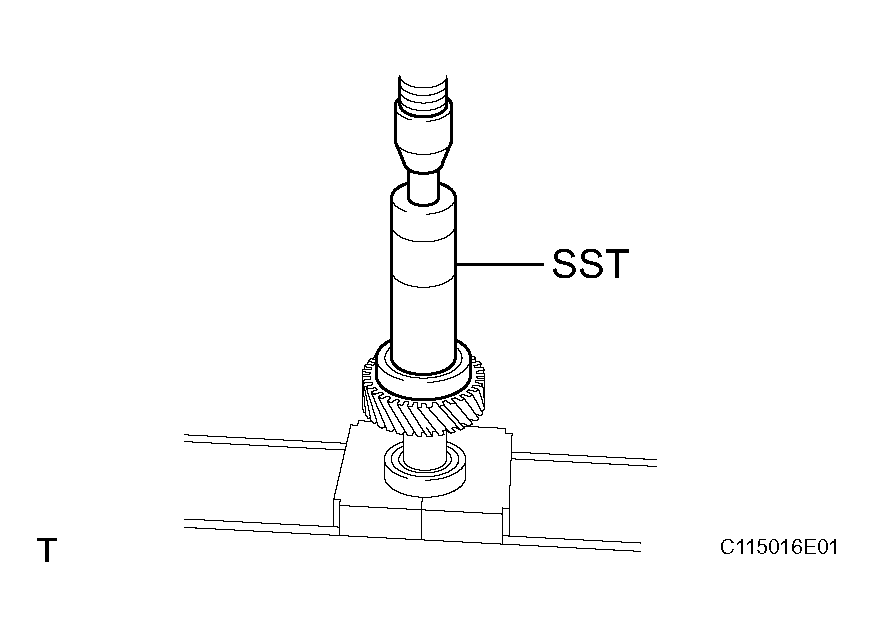

      Fig 1: Identifying Front Ball Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09316-60011 (09316-00011)

   2. Select a snap ring that will allow the minimum axial play.

      Standard snap ring thickness

      STANDARD SNAP RING THICKNESS SPECIFICATION



      Mark	Thickness mm (in.)	Mark	Thickness mm (in.)
      A	2.90 (0.1141)	D	3.05 (0.1201)
      B	2.95 (0.1161)	E	3.10 (0.1220)
      C	3.00 (0.1181)	F	3.15 (0.1240)

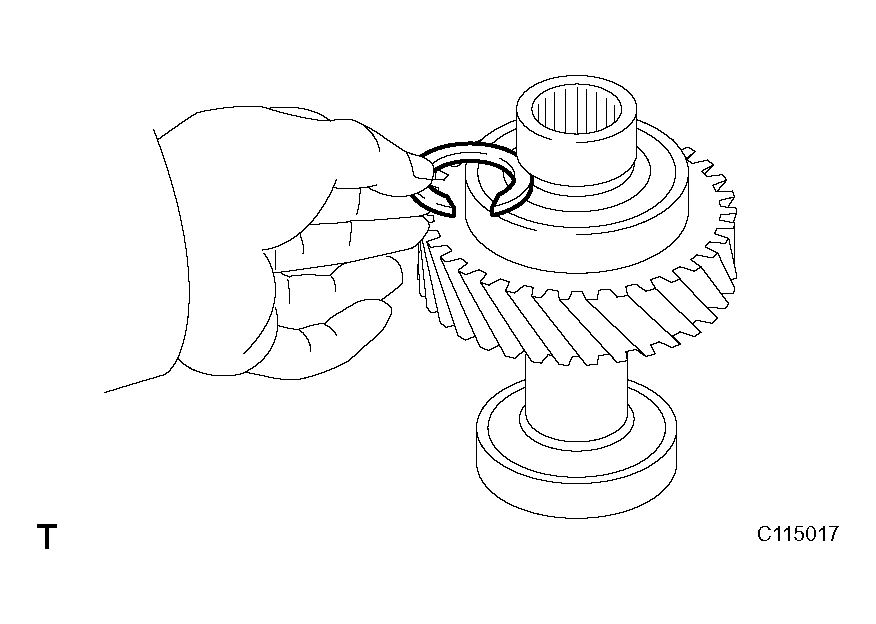

      Fig 2: Identifying Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.
2. INSTALL REAR BALL BEARING
   1. Using SST and a press, press in a new ball bearing.

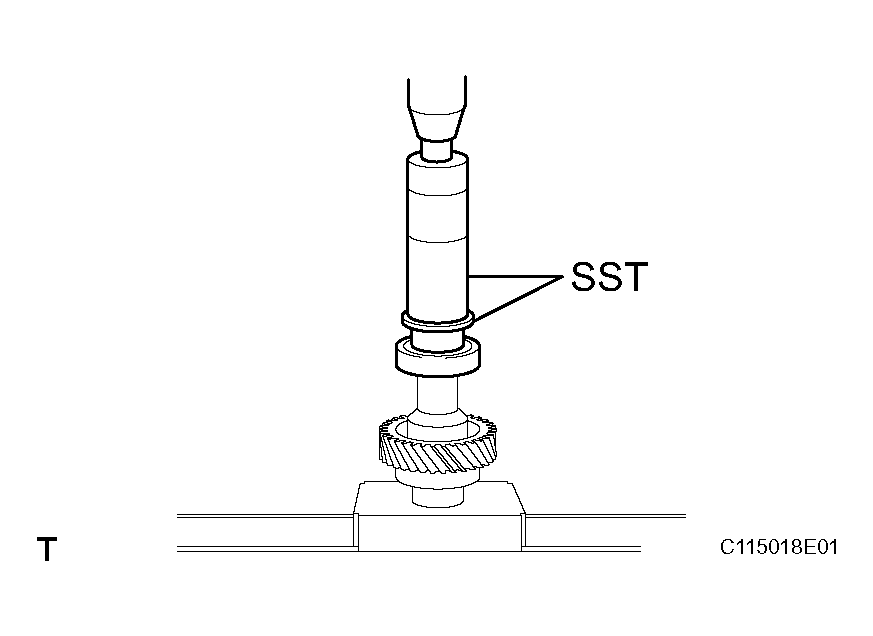

      Fig 3: Identifying Rear Ball Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09316-60011 (09316-00011, 09316-00031)

   2. Select a snap ring that will allow the minimum axial play.

      Standard snap ring thickness

      STANDARD SNAP RING THICKNESS SPECIFICATION



      Mark	Thickness mm (in.)	Mark	Thickness mm (in.)
      A	2.00 (0.0787)	D	2.30 (0.0906)
      B	2.10 (0.0827)	E	2.40 (0.0945)
      C	2.20 (0.0866)	-	-

      Fig 4: Identifying Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.
