Rear Extension Housing: Components

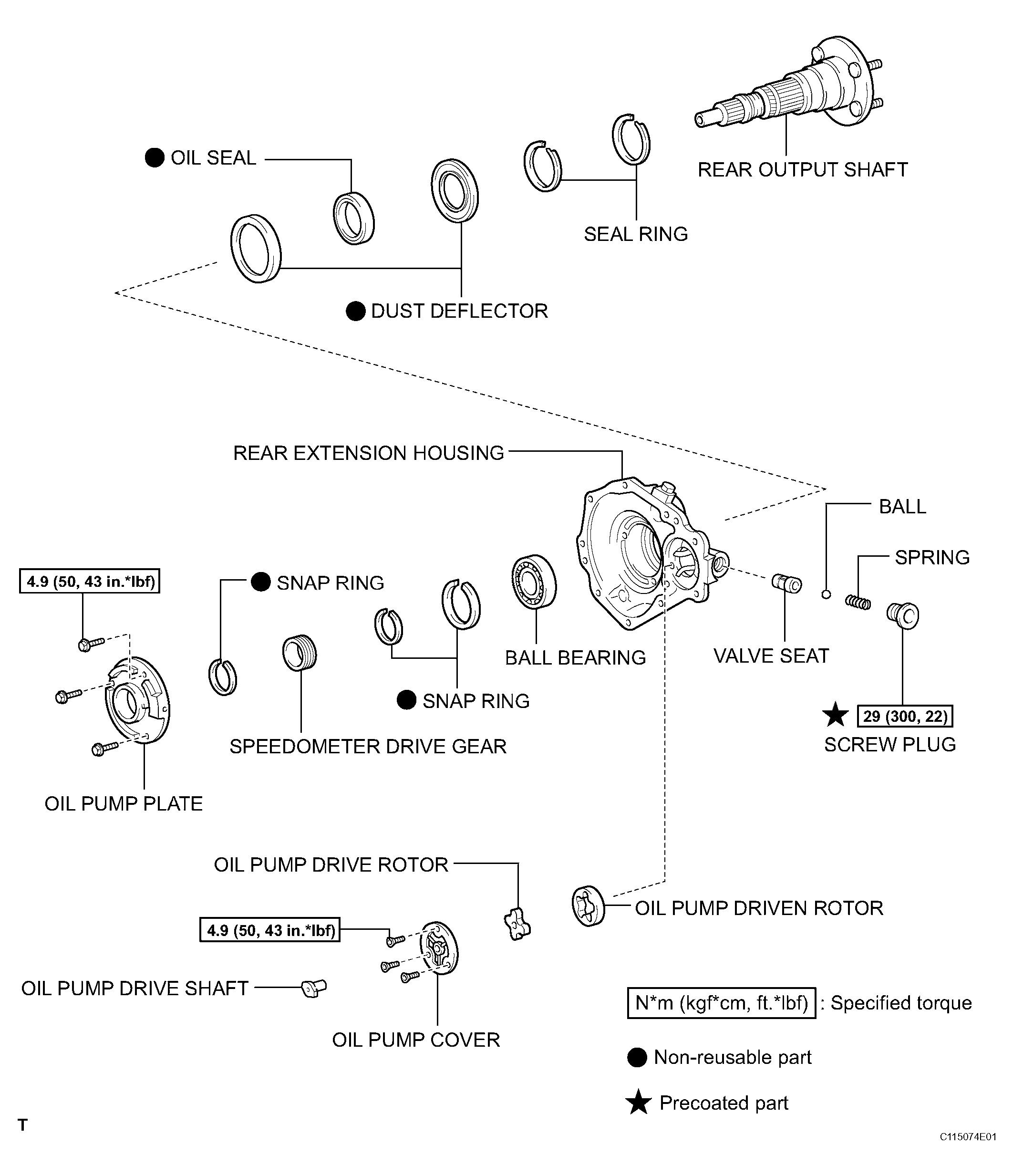

Fig 1: Rear Extension Housing Replacement Components With Torque Specifications
G04063207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
