Rear Extension Housing: Disassembly

1. Using a T30 "torx" socket, remove the 3 screws.
2. Install the 2 suitable bolts to the pump cover.

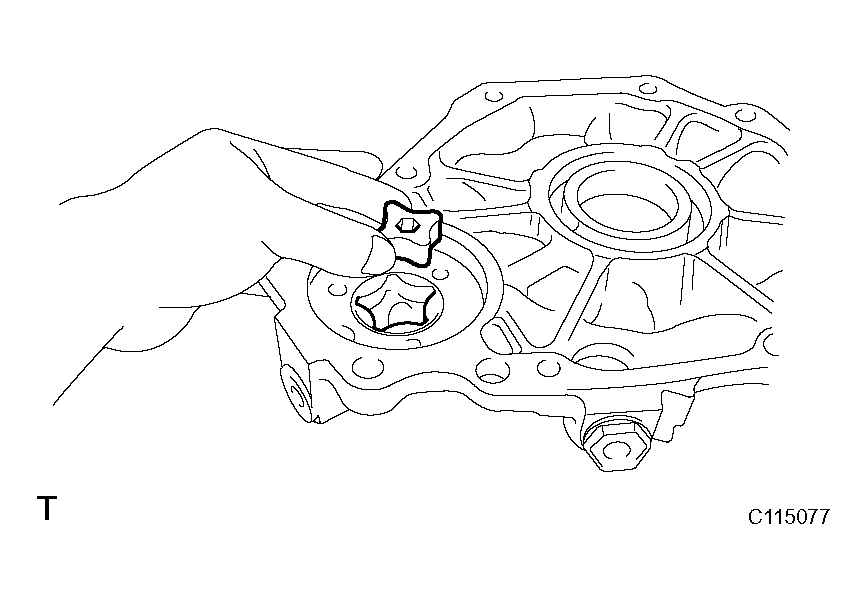

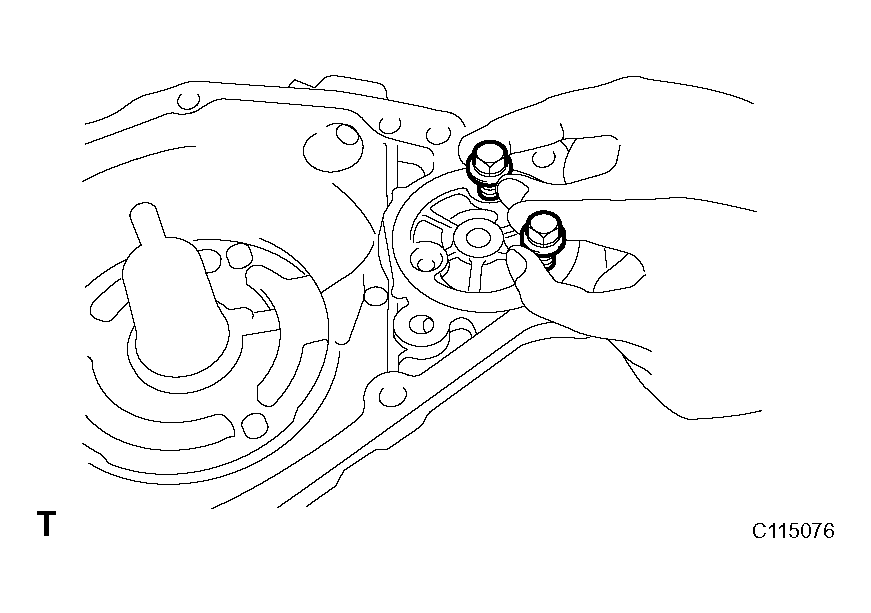

   Fig 2: Identifying Oil Pump Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the pump cover from the rear extension housing.

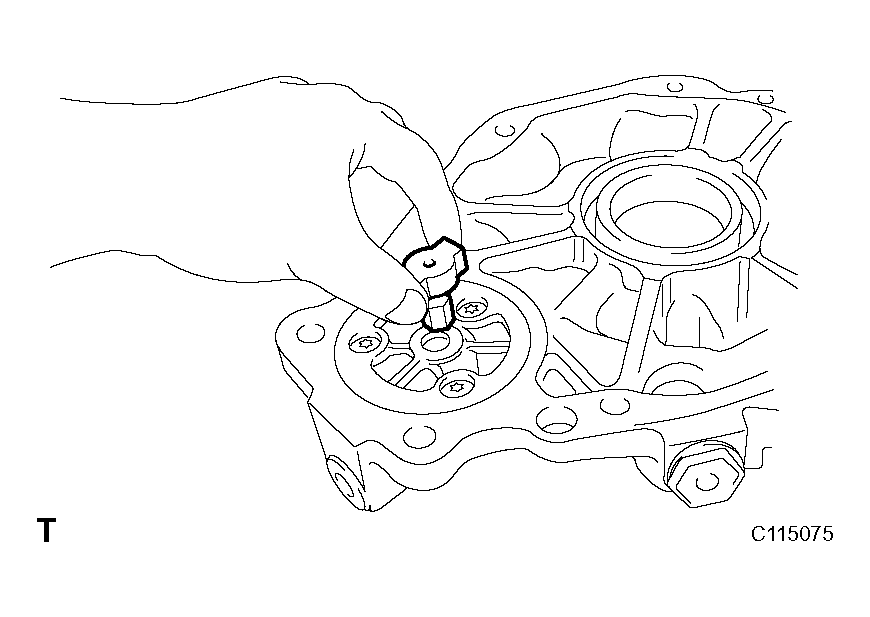

1. Remove the drive rotor from the driven rotor.

Fig 3: Removing Drive Rotor From Driven Rotor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

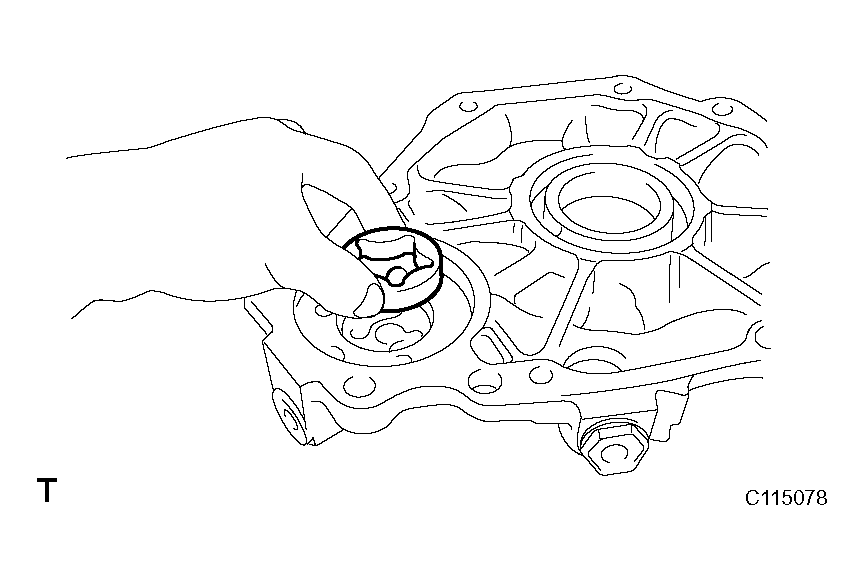

1. Remove the driven rotor from the rear extension housing.

Fig 4: Removing Driven Rotor From Rear Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

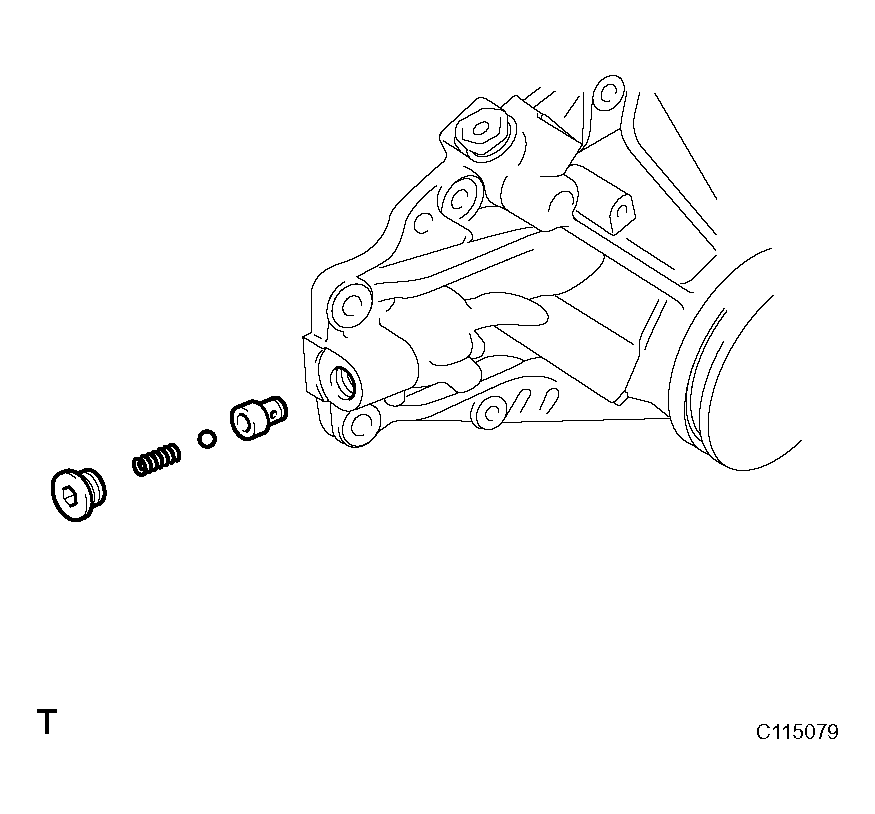

1. Using a hexagon wrench, remove the screw plug.
2. Using a magnetic finger, remove the spring, ball and valve seat from the rear extension housing.

Fig 5: Removing Spring, Ball And Valve Seat From Rear Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

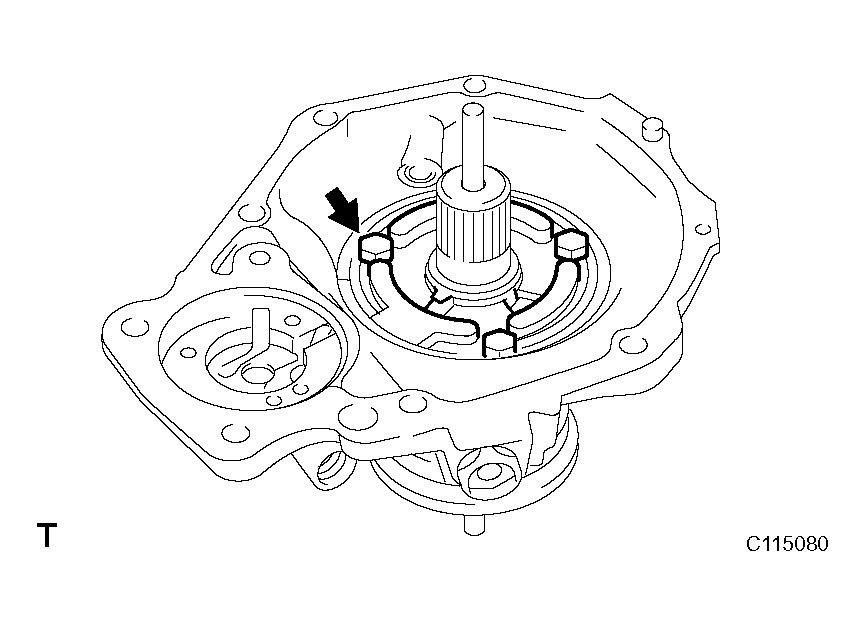

1. Remove the 3 bolts and oil pump plate.

Fig 6: Identifying Oil Pump Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a snap ring expander, remove the snap ring.
2. Remove the speedometer drive gear.

1. Using a snap ring expander, remove the snap ring.

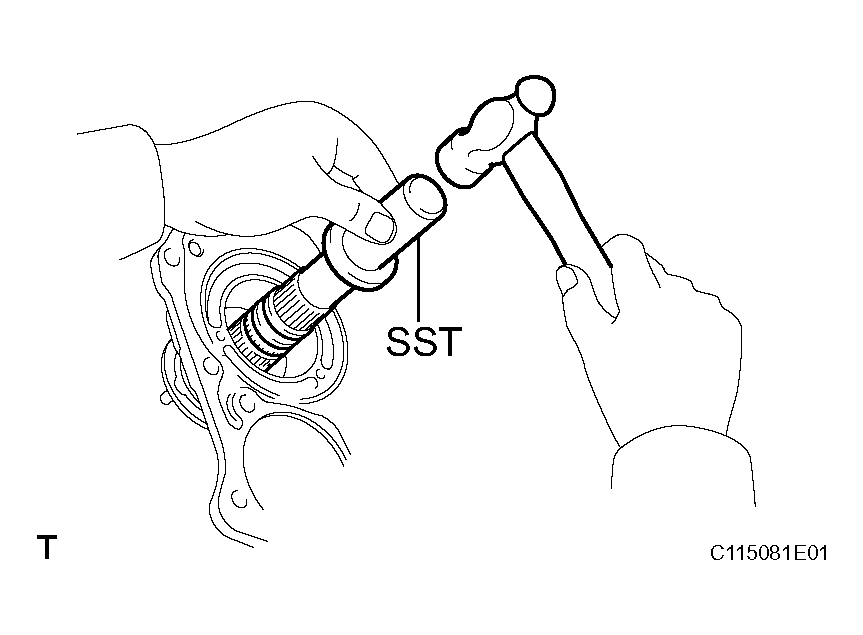

2. Using SST and a hammer, tap out the rear output shaft.
   Fig 7: Identifying Rear Output Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   SST 09325-12010

3. Remove the 2 seal rings from the rear output shaft.

1. Using a screwdriver and hammer, tap out the rear extension housing dust deflector.
2. Using a screwdriver and hammer, tap out the rear output shaft dust deflector.

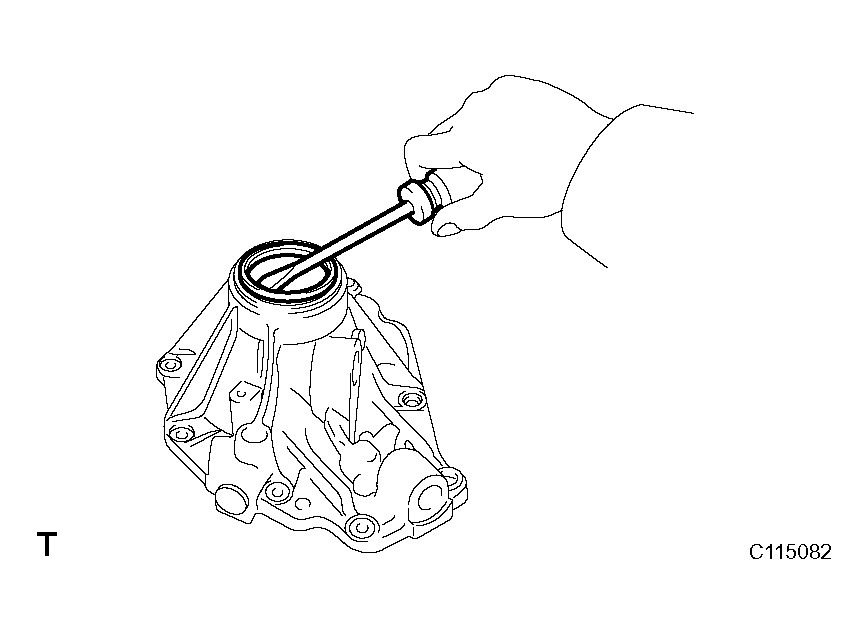

1. Using a screwdriver, pry out the oil seal from the rear extension housing.

Fig 8: Removing Oil Seal From Rear Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the snap ring.

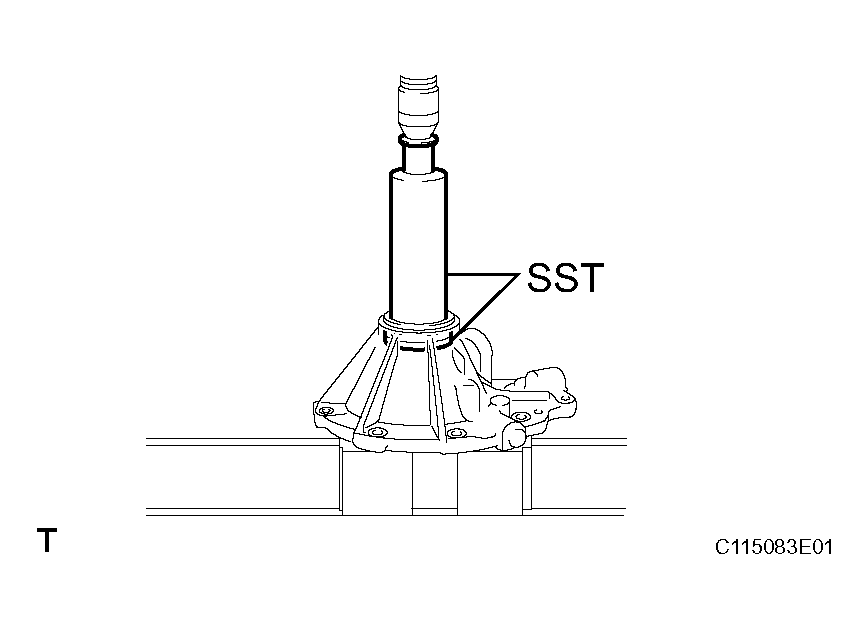

2. Using SST and a press, press out the ball bearing from the rear extension housing.

Fig 9: Removing Ball Bearing From Rear Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09316-60011 (09316-00011, 09316-00021)
