Transfer Indicator Switch: Inspection

  1. INSPECT TRANSFER INDICATOR SWITCH
    1. Check that continuity exists between terminals 1 and 2 when pushing the ball at the tip of the switch.

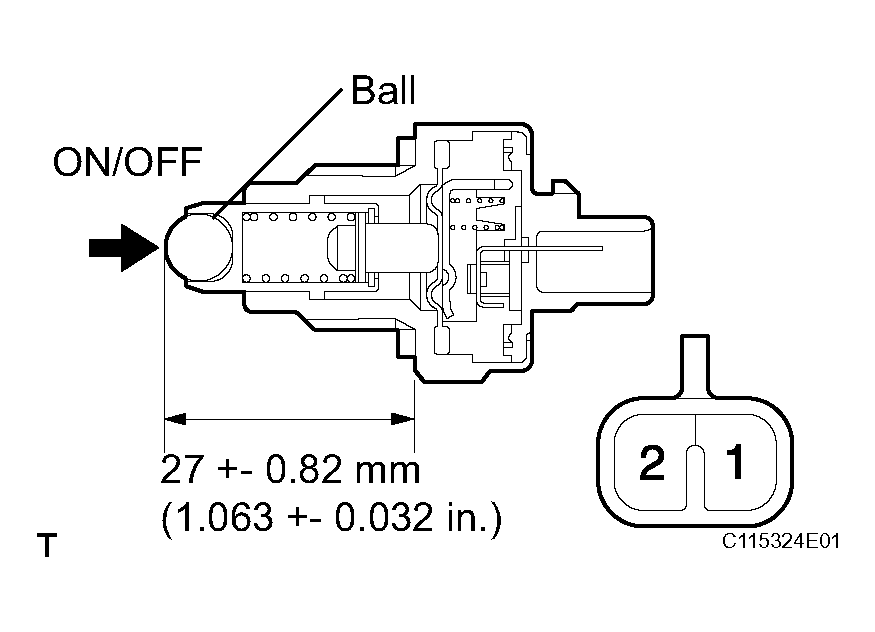

    Fig 1: Identifying Transfer Indicator Switch Terminals
    G04063140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
