Impact Sensor
Center Airbag Sensor Assembly:

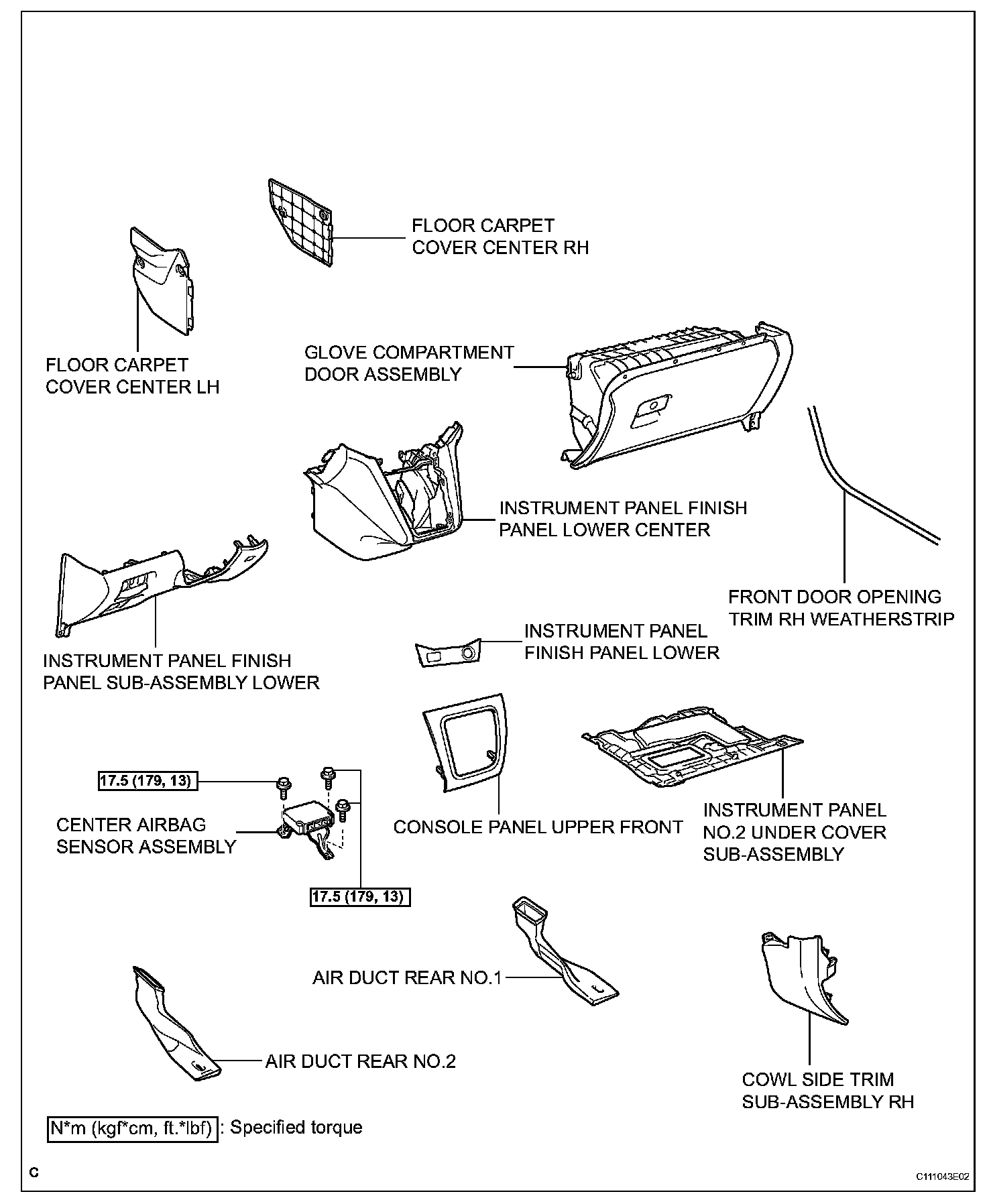

Center Airbag Sensor Assembly:

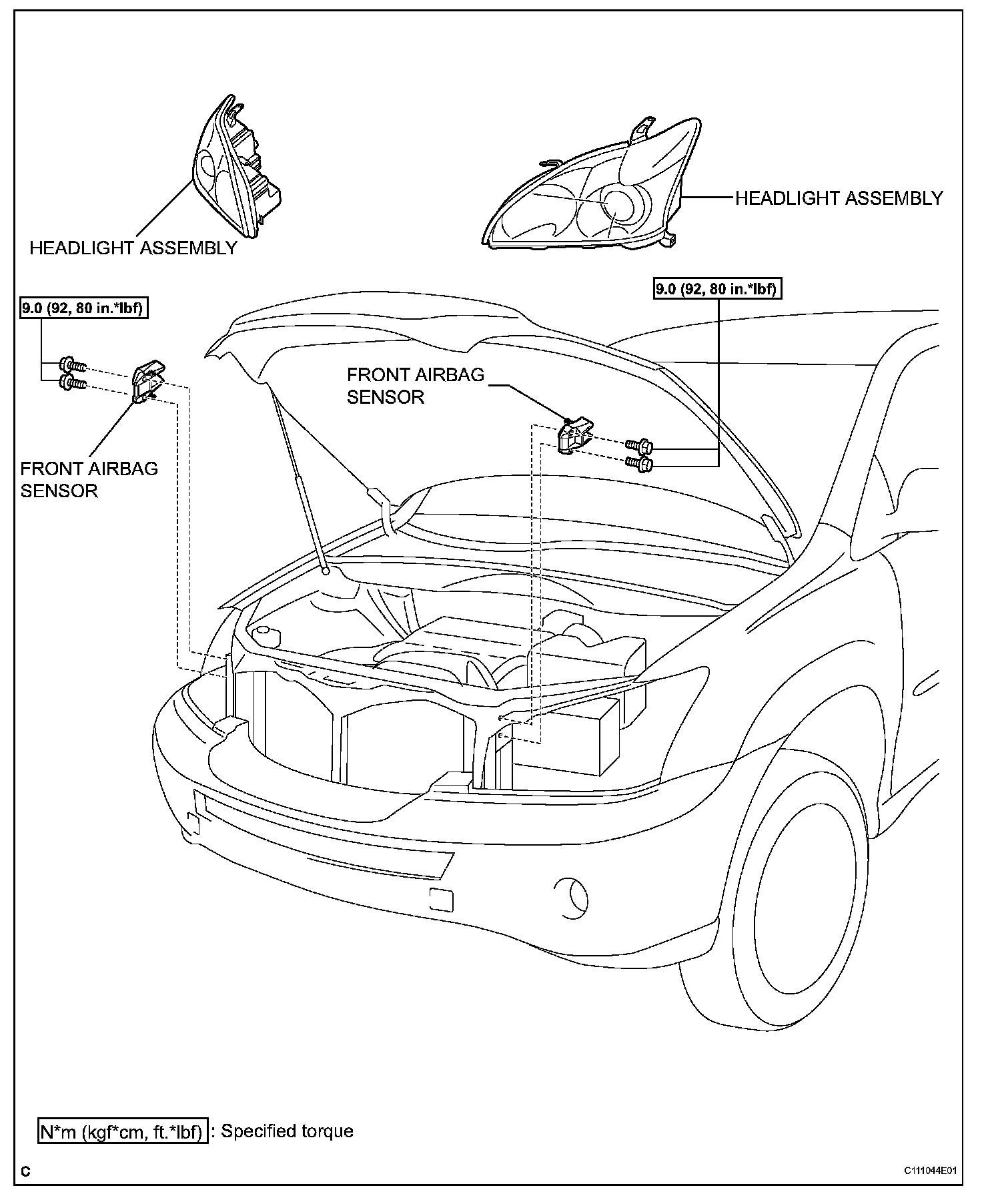

Front Airbag Sensor:

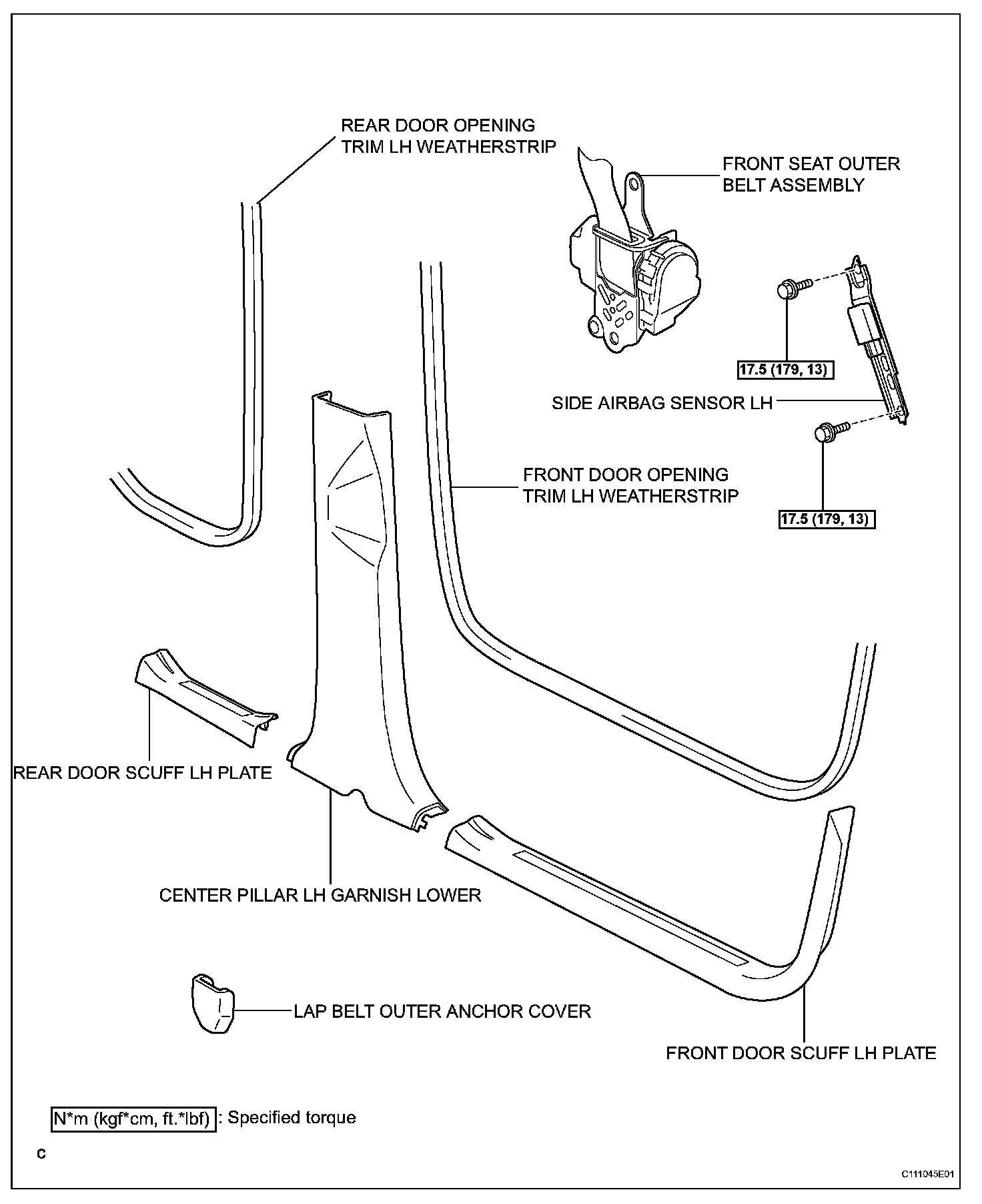

Side Airbag Sensor:

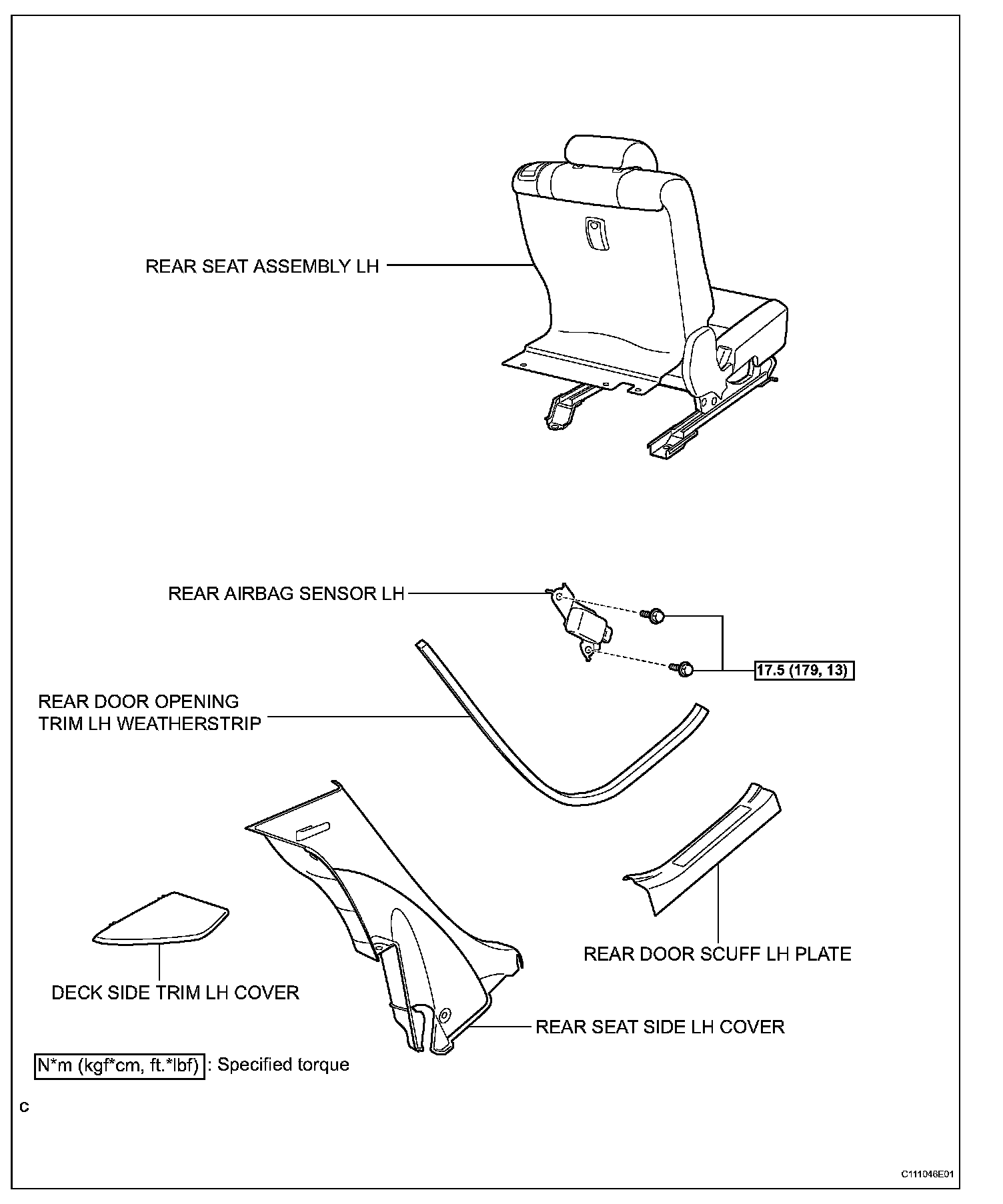

Rear Airbag Sensor:
