Using Intelligent Tester

USING INTELLIGENT TESTER

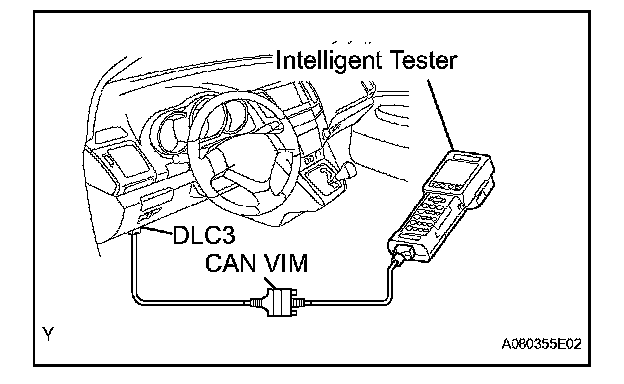

a. Connect the intelligent tester to the DLC3.
b. Monitor the ECU data by following the prompts on the tester screen.

HINT: The intelligent tester has a "Snapshot" function which records the monitored data. Refer to the intelligent tester operator's manual for further details.
