Wiper Control Module: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
4. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

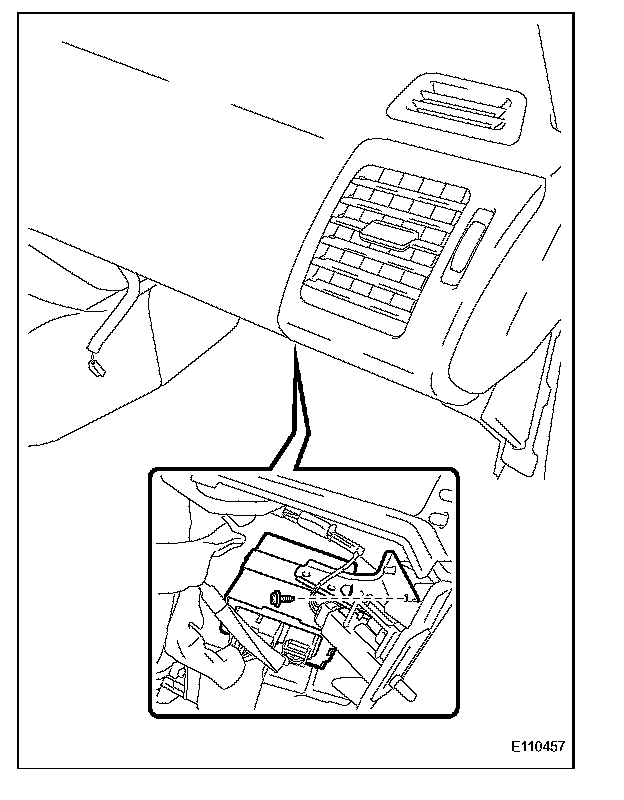

6. REMOVE WIPER ECU
a. Disconnect the connector.
b. Remove the screw and the wiper ECU.

INSTALLATION

1. INSTALL WIPER ECU
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
5. INSTALL FRONT DOOR SCUFF PLATE RH
6. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
7. PERFORM INITIALIZATION
