Multi-Display Controller: Components

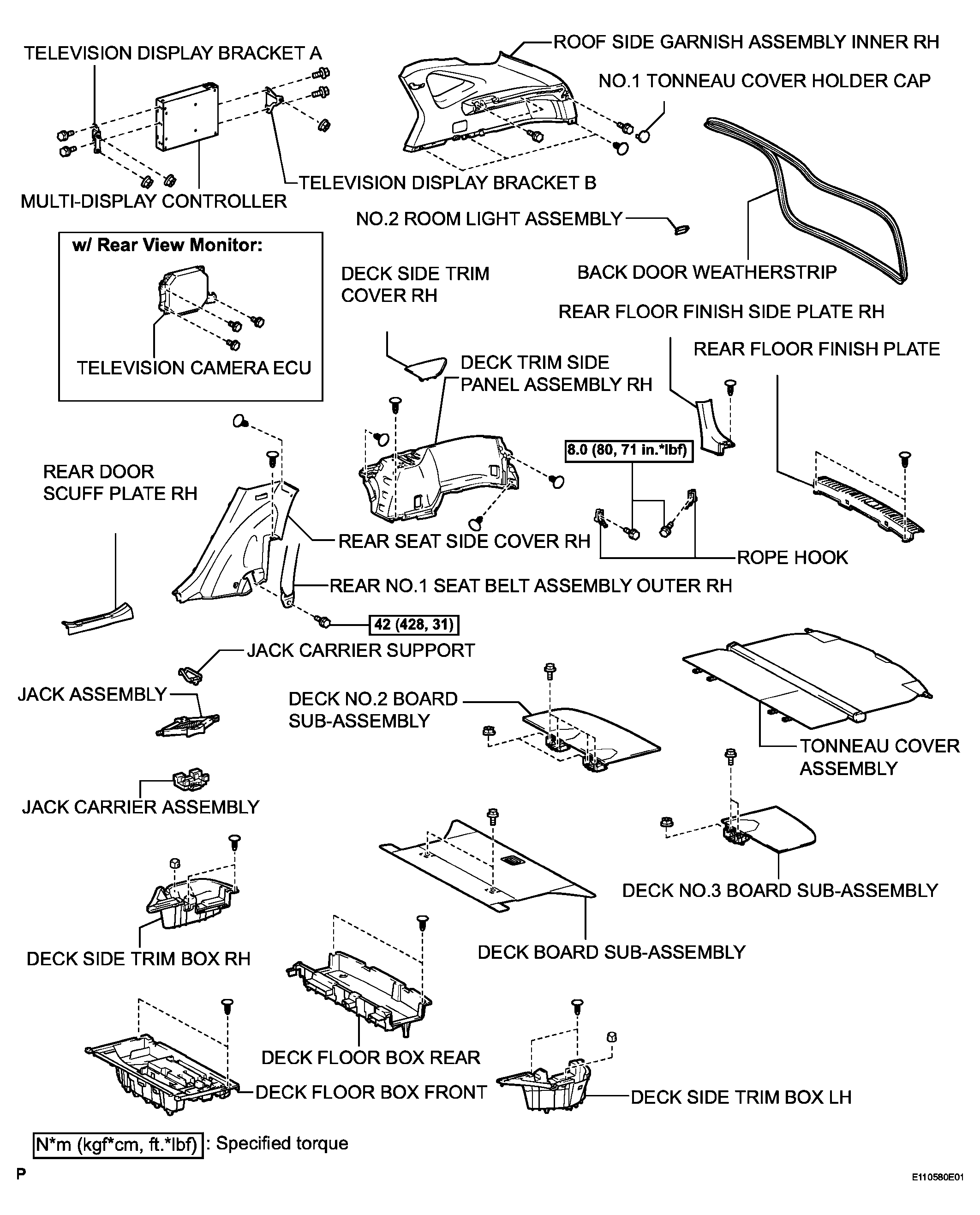

Fig 1: Exploded View Of Multi-Display Controller With Torque Specifications
G04092776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
