Navigation Check Mode

HINT:

• This mode displays GPS satellite information.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DTC CHECK/CLEAR   )
2. NAVIGATION CHECK
   1. Select "Navigation Check" from the "Diagnosis MENU" screen.

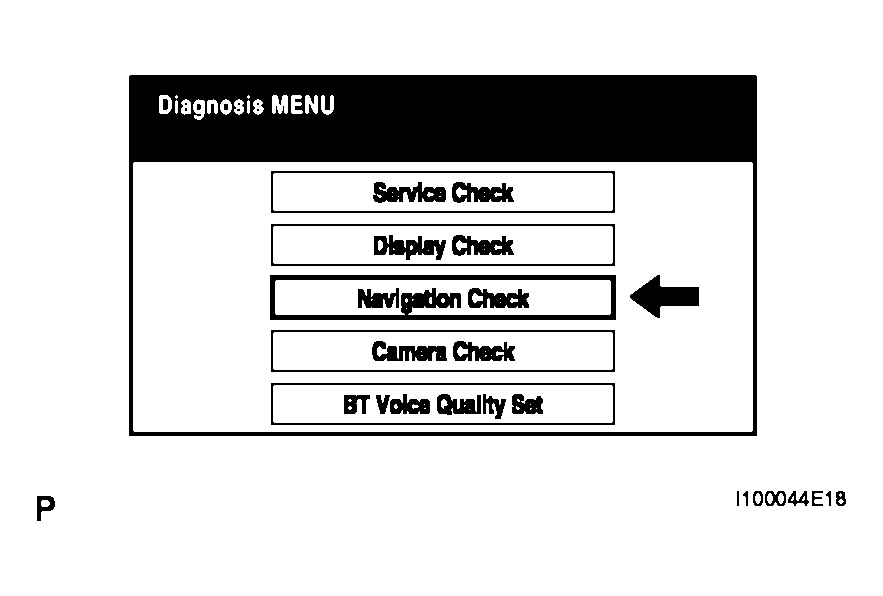

   Fig 1: Multi-Display Screen - Diagnosis MENU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. GPS INFORMATION
   1. Select "GPS Information" from the "Navigation Check" screen.

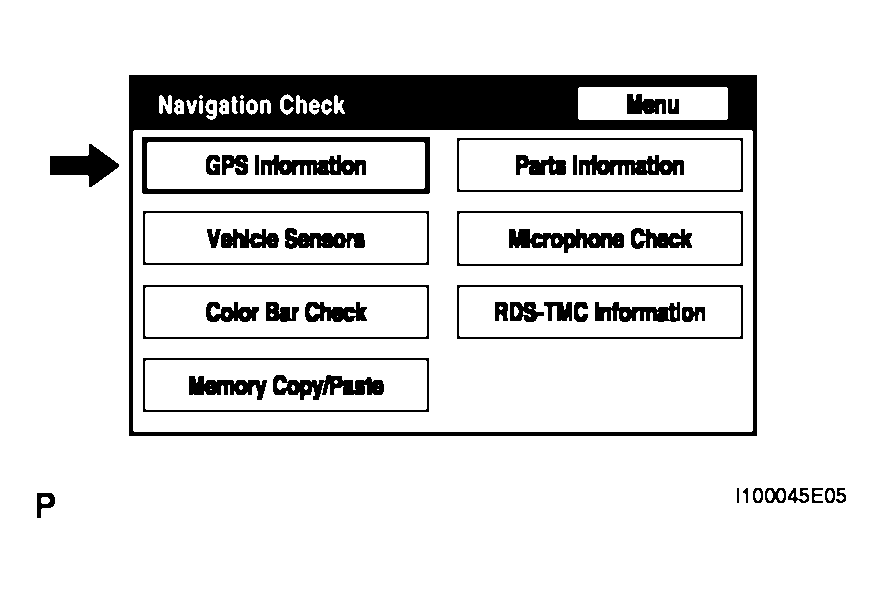

      Fig 2: Multi-Display Screen - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When GPS information is displayed, check the GPS conditions.

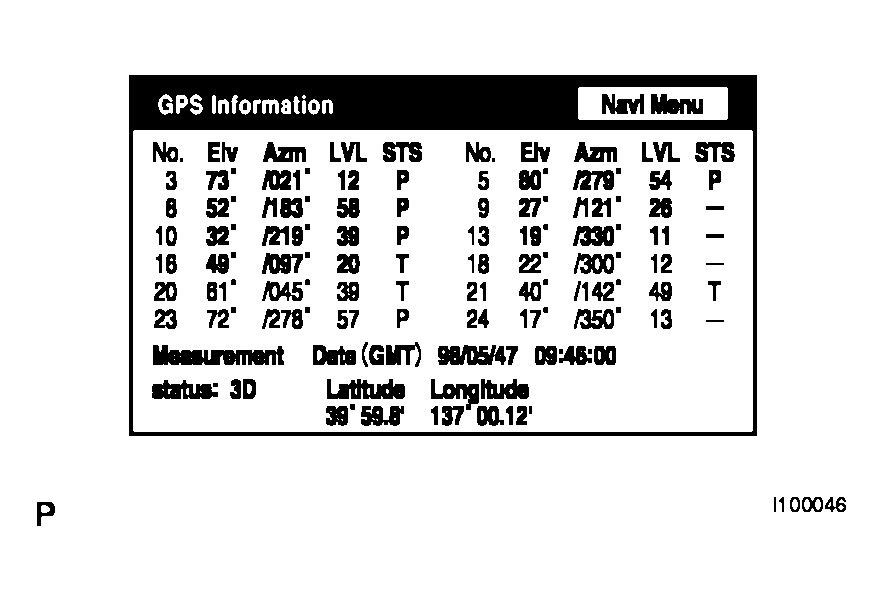

      Fig 3: Multi-Display Screen - GPS Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This screen is updated once per second when input signals to the vehicle are changed.

4. VEHICLE SENSORS
   1. Select "Vehicle Sensors" from the "Navigation Check" screen.

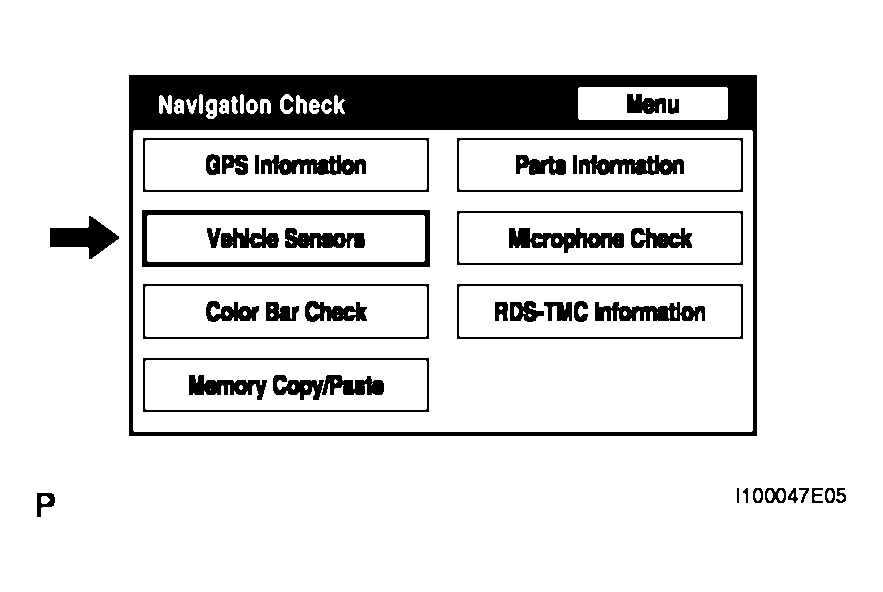

      Fig 4: Multi-Display Screen - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check all the signals and sensors when vehicle signal information is displayed.

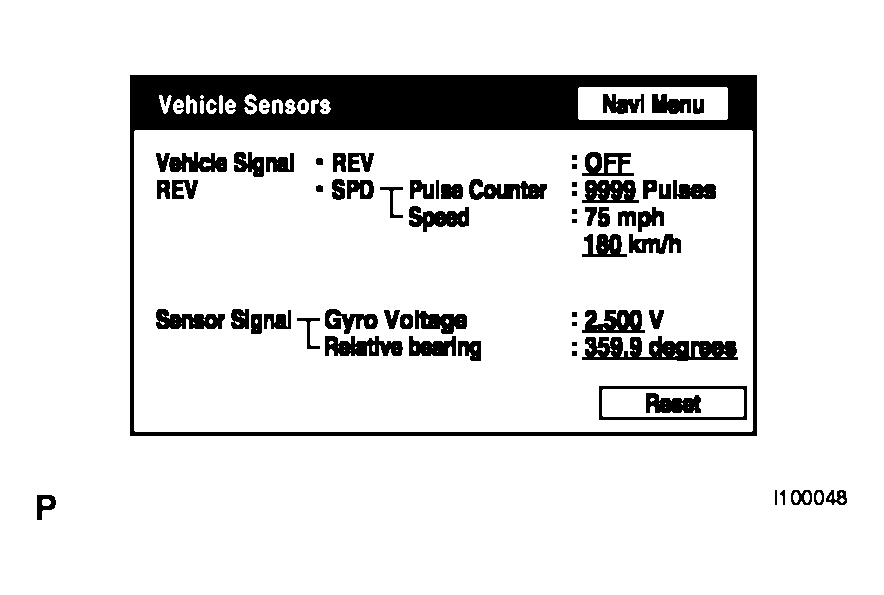

      Fig 5: Multi-Display Screen - Vehicle Sensors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This screen is updated once per second when input signals to the vehicle are changed.

5. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "Navigation Check" screen.

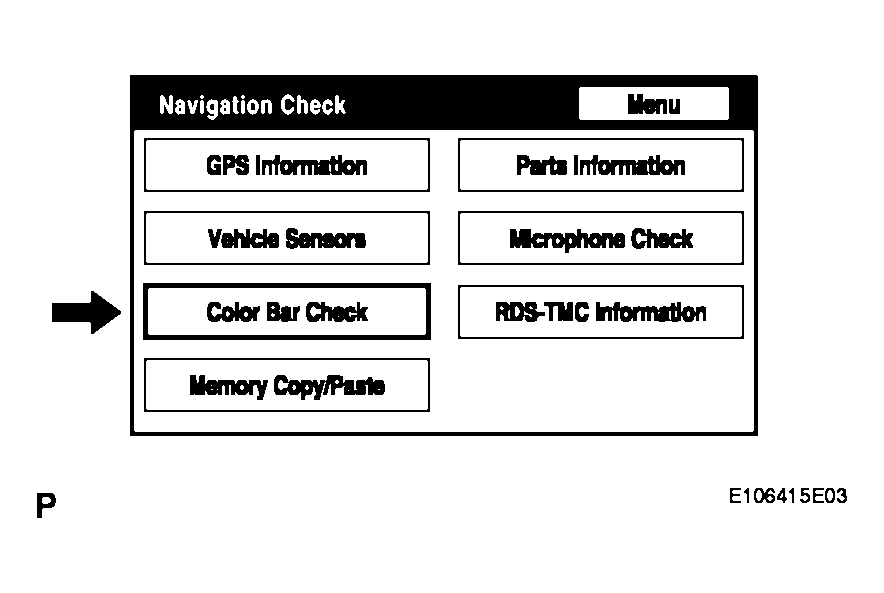

      Fig 6: Multi-Display Screen - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.

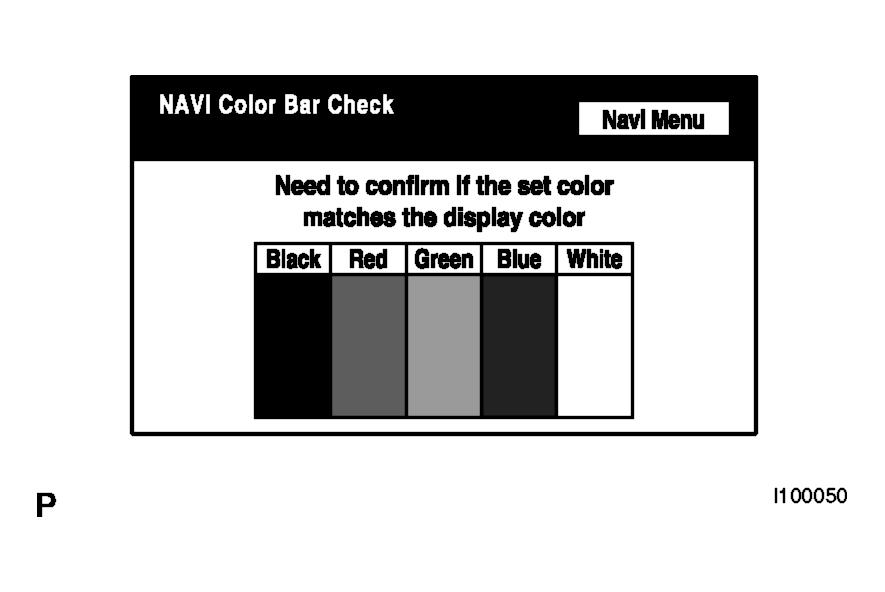

      Fig 7: Multi-Display Screen - NAVI Color Bar Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Colors will not be displayed full-screen as in "Display Check Mode".

6. PARTS INFORMATION
   1. Select "Parts Information" from the "Navigation Check" screen.

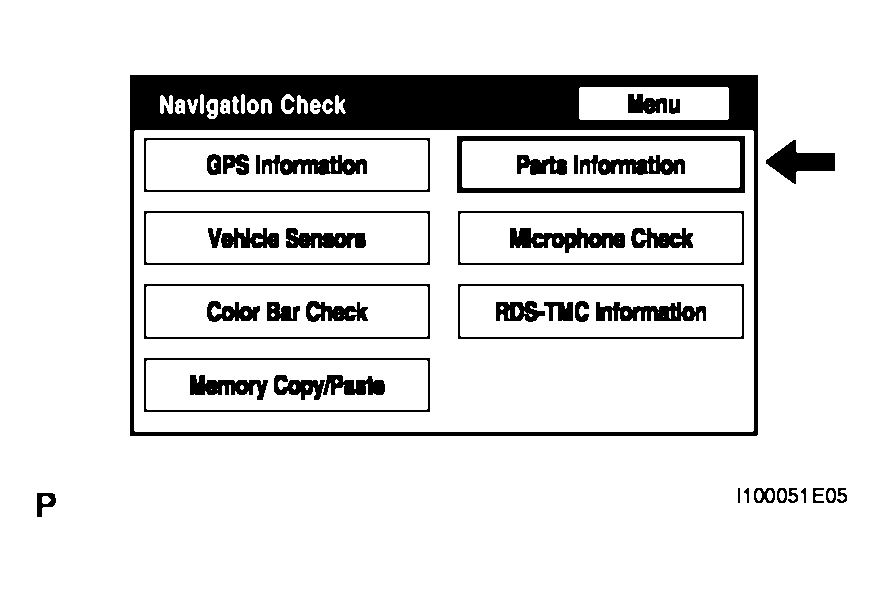

      Fig 8: Multi-Display Screen - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the navigation and disc information when the "Parts Information" screen is displayed.

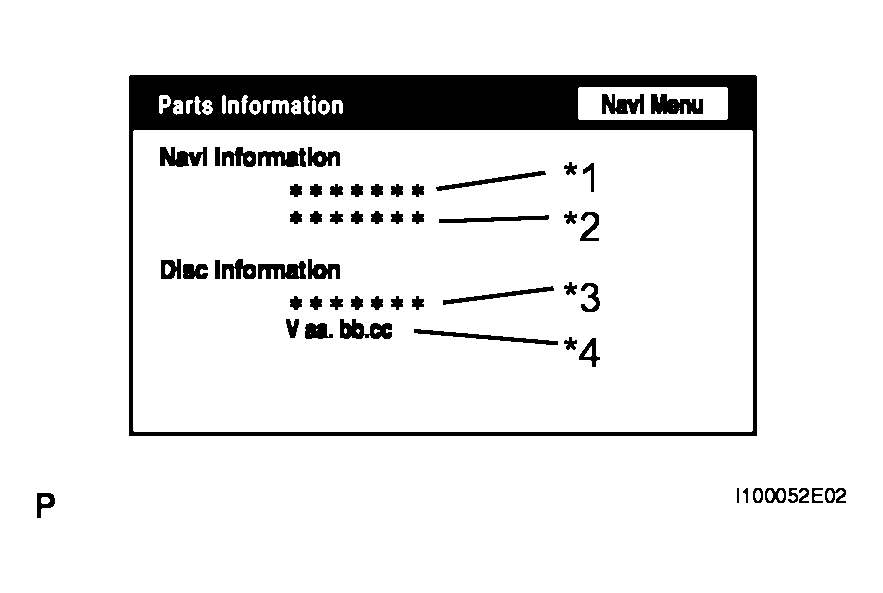

   Fig 9: Multi-Display Screen - Parts Information

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   DISPLAY CONTENTS REFERENCE



   Display	Contents
   Navigation Manufacturer/*1	Navigation ECU manufacturer is displayed.
   Navigation Version/*2	Navigation ECU version is displayed.
   Disc Manufacturer/*3	Map disc manufacturer is displayed.
   Disc Version/*4	Map disc version is displayed.

7. MICROPHONE CHECK
   1. Select "Microphone Check" from the "Navigation Check" screen.

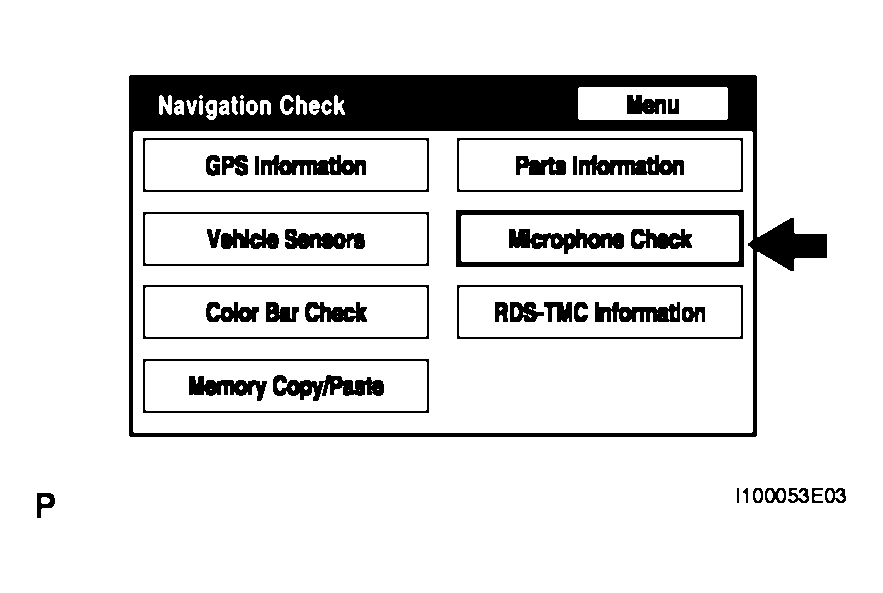

      Fig 10: Multi-Display Screen - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Perform the microphone check by following the directions on the "Microphone Check" screen.

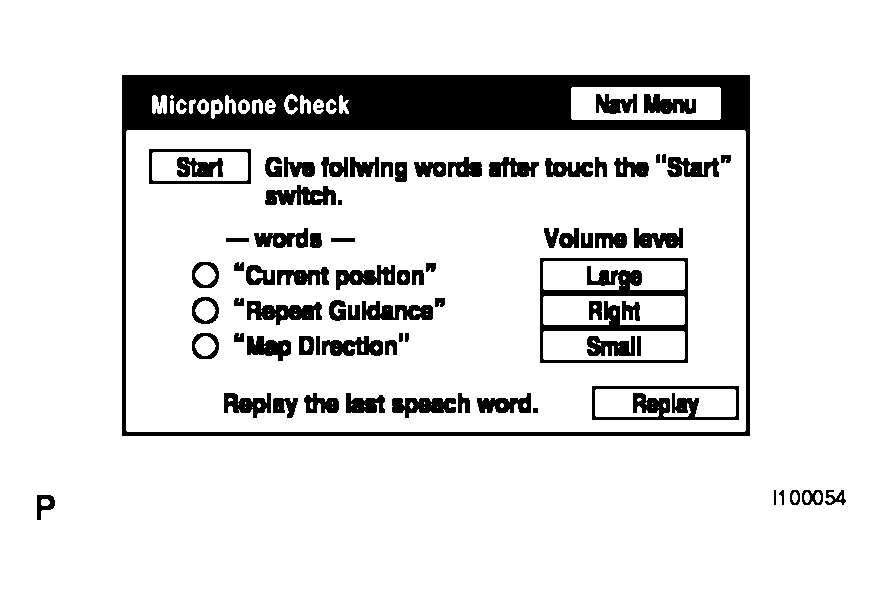

   Fig 11: Multi-Display Screen - Microphone Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
