DTC Check/Clear

DTC CHECK/CLEAR (USING INTELLIGENT TESTER:)
1. DTC check
  1. Connect the intelligent tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Read the DTCs on the tester screen.
2. DTC clear
  1. Connect the intelligent tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Clear the DTCs following the prompts on the tester screen.
    HINT:

    Refer to the intelligent tester operator's manual for further details.

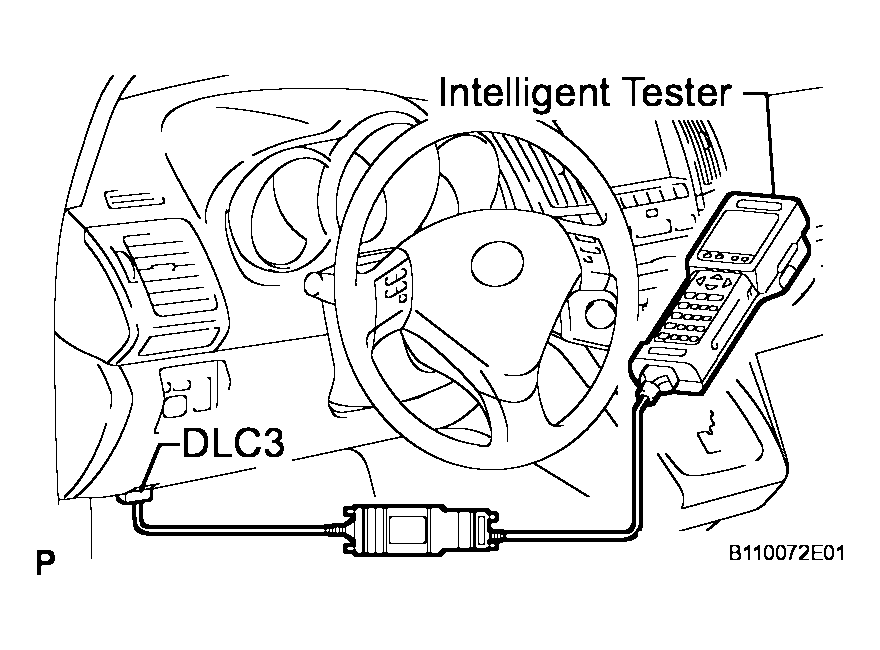

Fig 1: Connecting Intelligent Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
