Height Control Sensor: Components

Fig 1: Exploded View Of Height Control Sensor Components (1 Of 3)
G04090282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

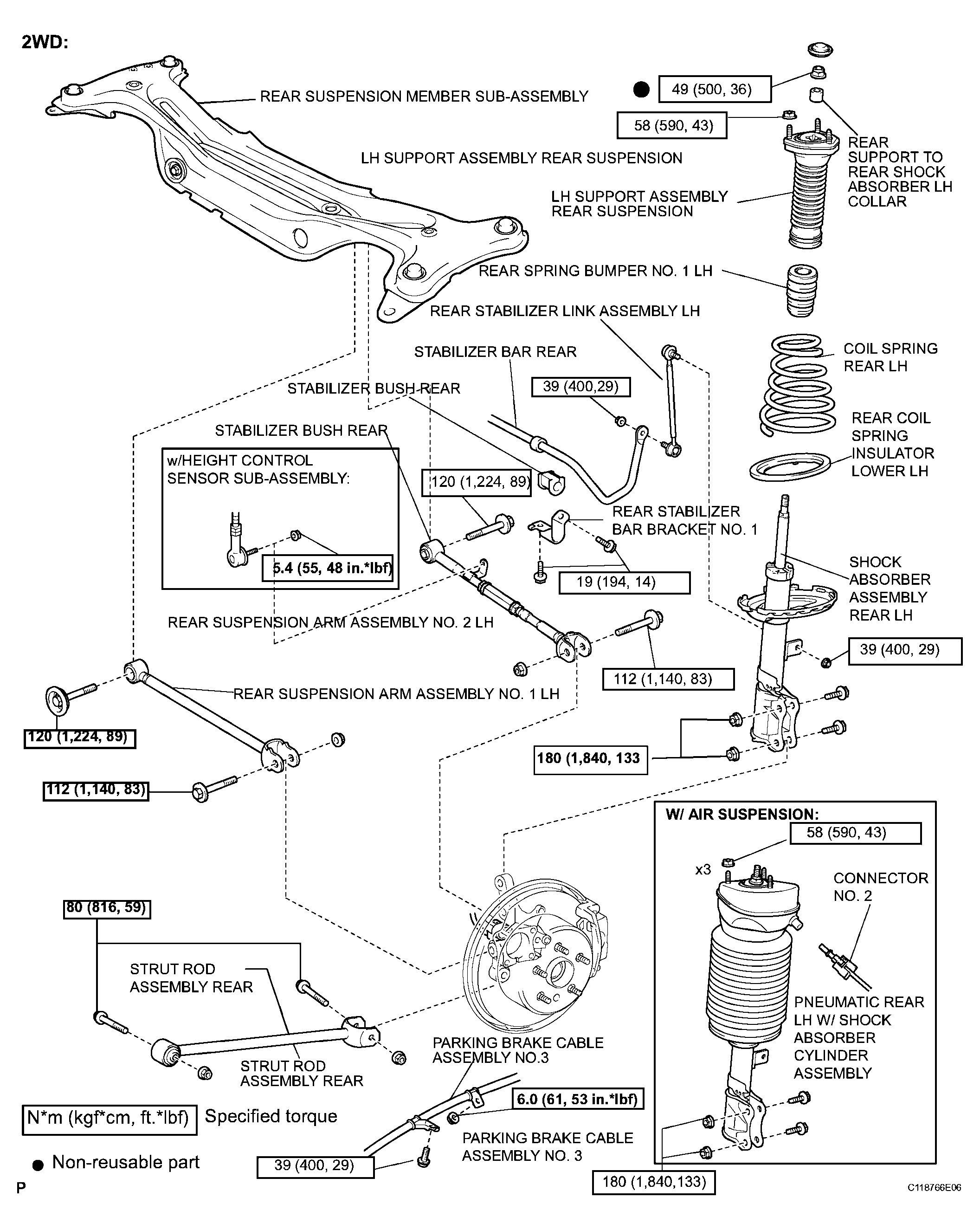

Fig 2: Exploded View Of Height Control Sensor Components With Torque Specifications (2 Of 3)
G04090283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

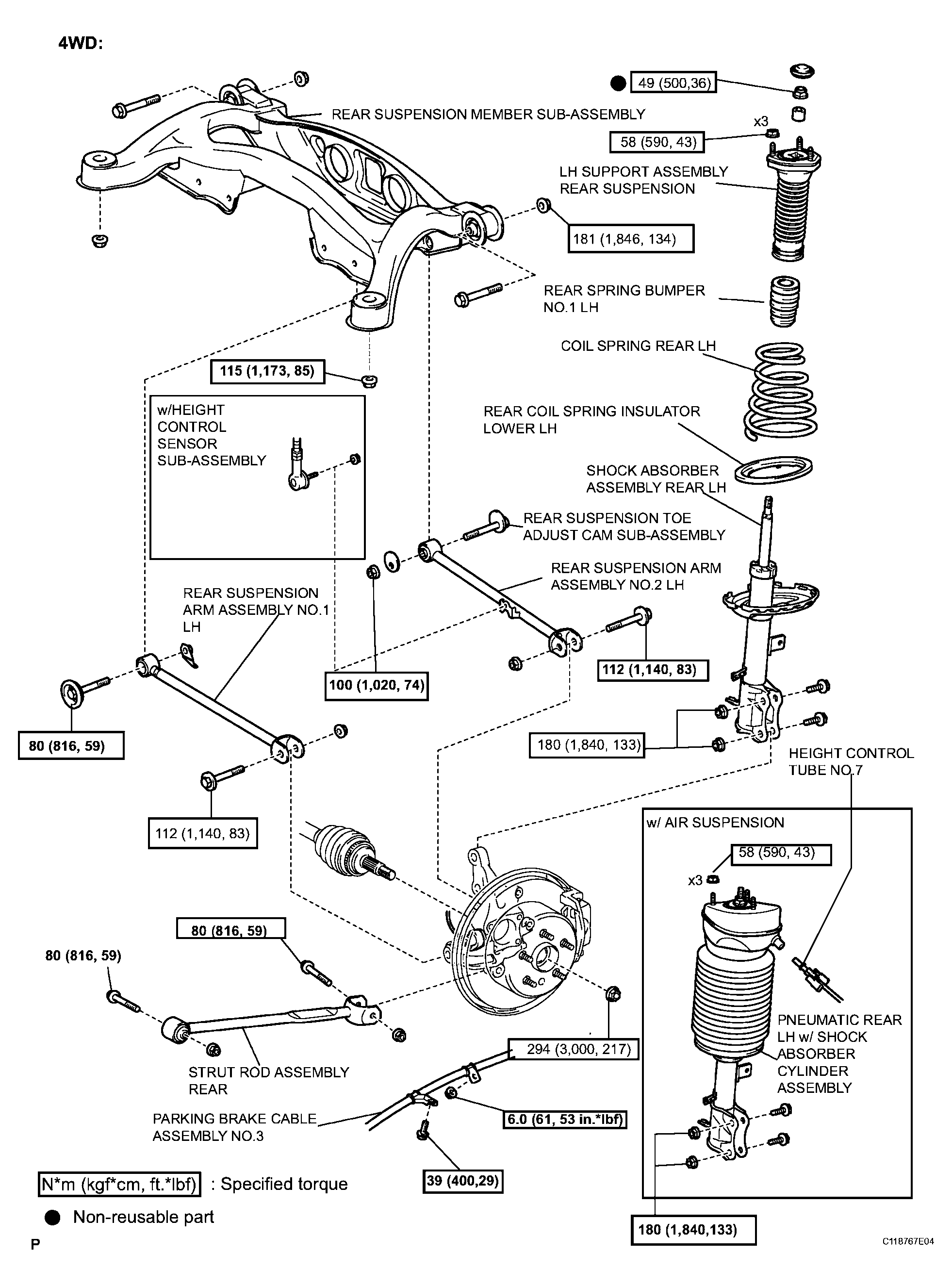

Fig 3: Exploded View Of Height Control Sensor Components With Torque Specifications (3 Of 3)
G04090284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
