Steering Angle Sensor: Removal

PRECAUTION
HINT:

See PRECAUTION
SEPARATE BATTERY NEGATIVE TERMINAL
HINT:

See AIRBAG SYSTEM
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE STEERING PAD ASSEMBLY (See REMOVAL )
REMOVE STEERING WHEEL ASSEMBLY (for Manual Tilt) (See REMOVAL )
REMOVE STEERING WHEEL ASSEMBLY (for Power Tilt and Power Telescopic) (See REMOVAL )
REMOVE STEERING COLUMN COVER (for Manual Tilt) (See REMOVAL )
REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See REMOVAL )
REMOVE SPIRAL CABLE (See REMOVAL )
REMOVE STEERING SENSOR
1. Release 6 claw fittings and remove the steering sensor from the spiral cable.

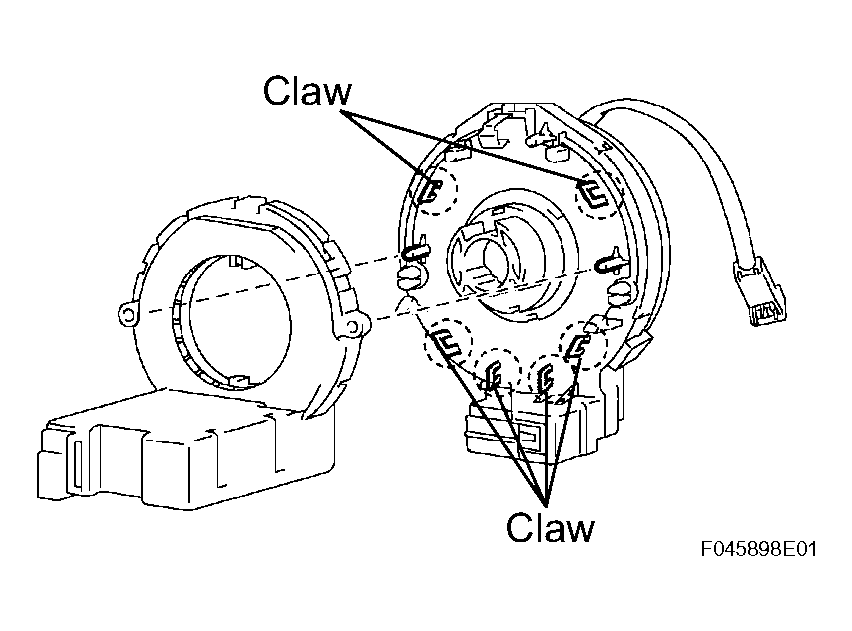

Fig 1: Removing Steering Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
