Parts Location

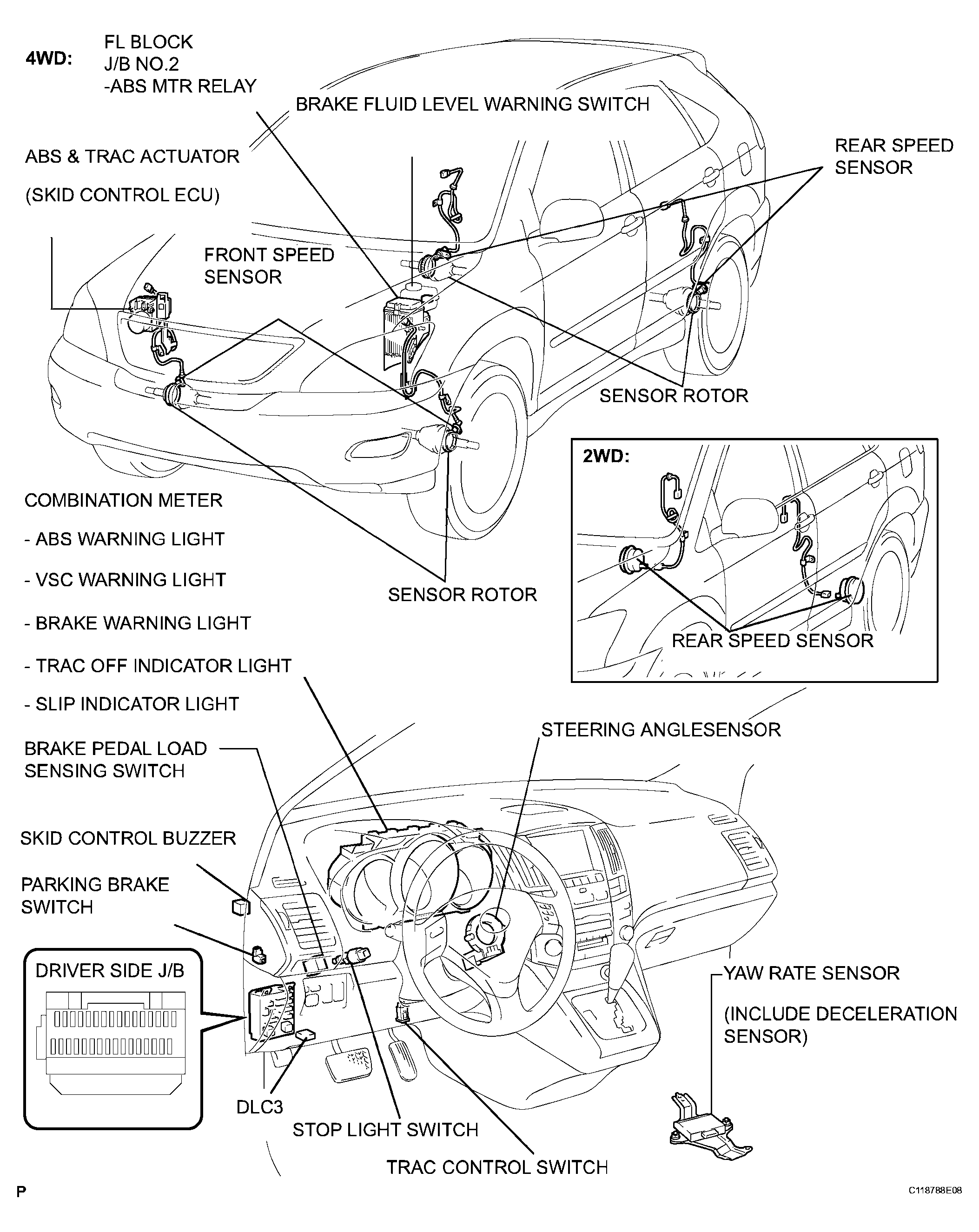

Fig 1: Identifying Vehicle Stability Control System Parts Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
