Power Point Socket: Components

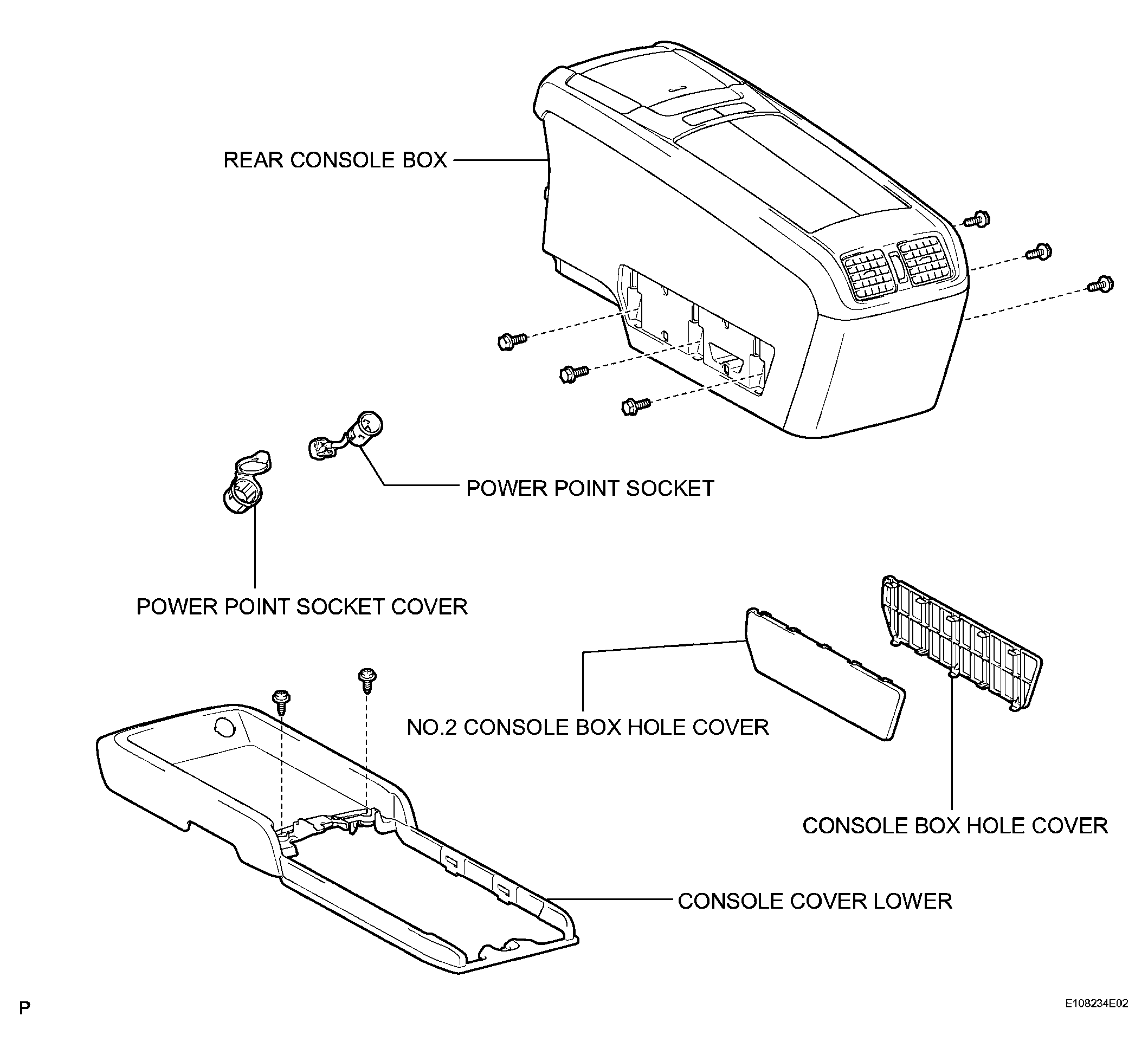

Fig 1: Identifying Power Point Socket Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
