Combination Meter: Installation

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Install the combination meter assembly with the 4 screws.

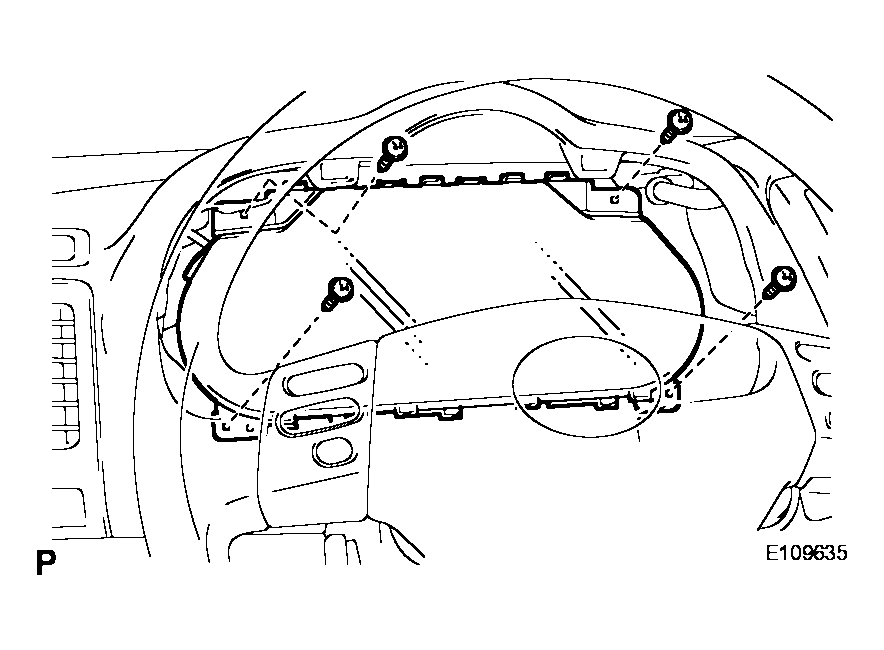

    Fig 1: Installing Combination Meter Assembly With Screws
    G04092552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the 4 clips and install the instrument cluster finish panel sub-assembly.

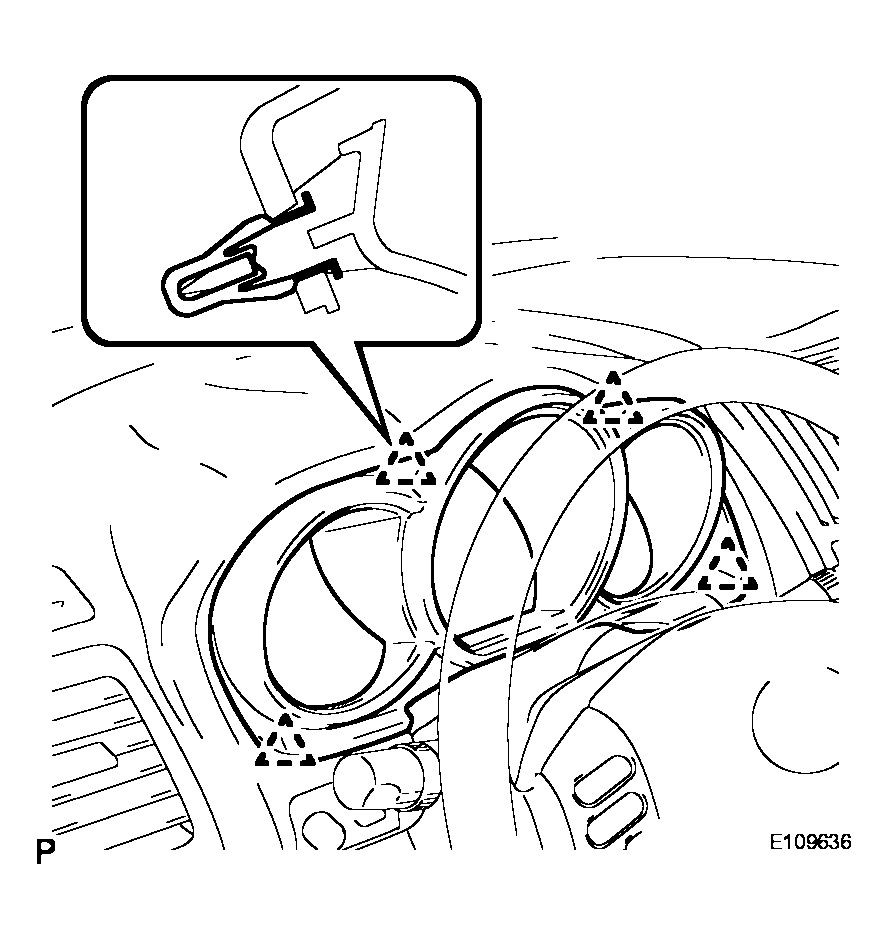

      2. Fig 2: Installing Instrument Cluster Finish Panel Sub-Assembly
      G04092553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.
