Combination Meter: Reassembly

  1. INSTALL COMBINATION METER GLASS
    1. Engage the 8 claws and install the combination meter glass.

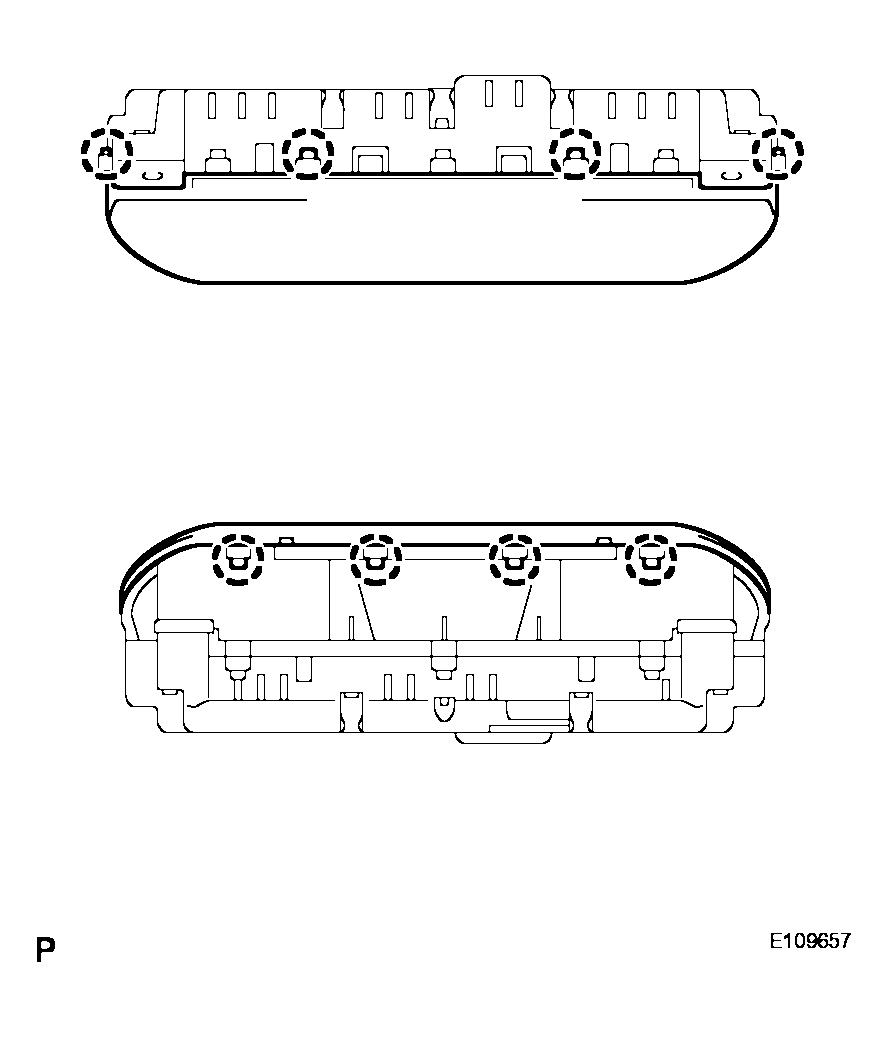

    Fig 1: Installing Combination Meter Glass With Claws
    G04092551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
