Light Control Rheostat: Inspection

INSPECT LIGHT CONTROL RHEOSTAT

Remove the light control rheostat with connector still connected.

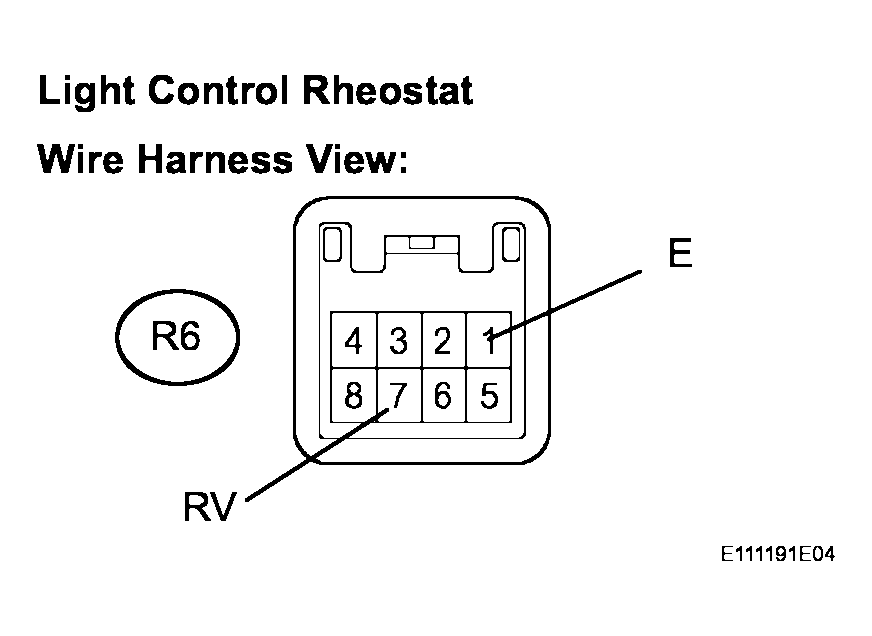

Fig 1: Identifying Light Control Rheostat Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
R6-1 (E) - R6-7 (RV)	Light control rheostat position is MIN.	Below 1 Ω
R6-1 (E) - R6-7 (RV)	Light control rheostat position is between MIN. and MAX.	8 to 12 kΩ
R6-1 (E) - R6-7 (RV)	ODO/TRIP switch is OFF --> ON	10 kΩ or higher --> Below 1 Ω

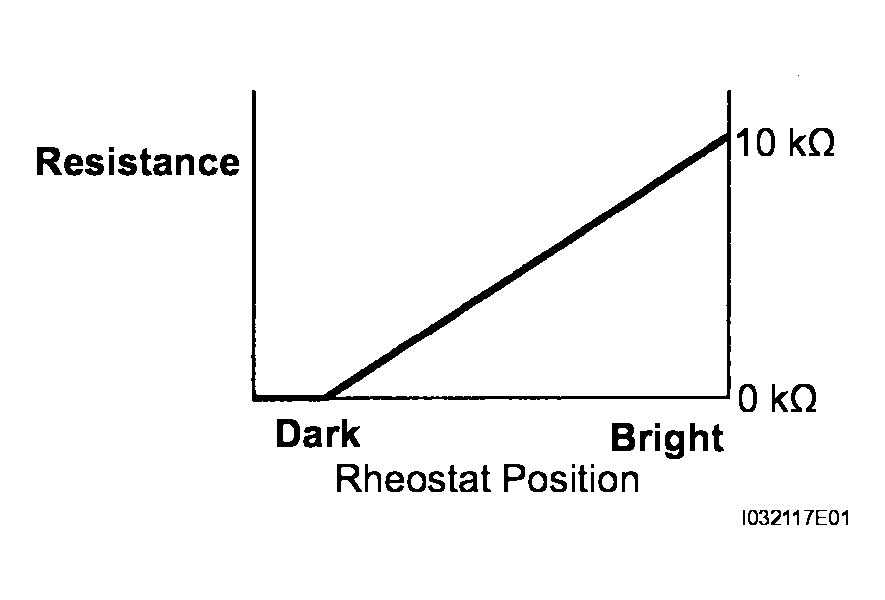

Fig 2: Rheostat Position Graph

HINT:

If the value is not as specified, replace the light control rheostat.
