Crankshaft Position Sensor: Removal

REMOVE ENGINE UNDER COVER ASSEMBLY (See REMOVAL )
REMOVE ENGINE UNDER COVER NO. 1 (See REMOVAL )
REMOVE FRONT FENDER APRON SEAL RH

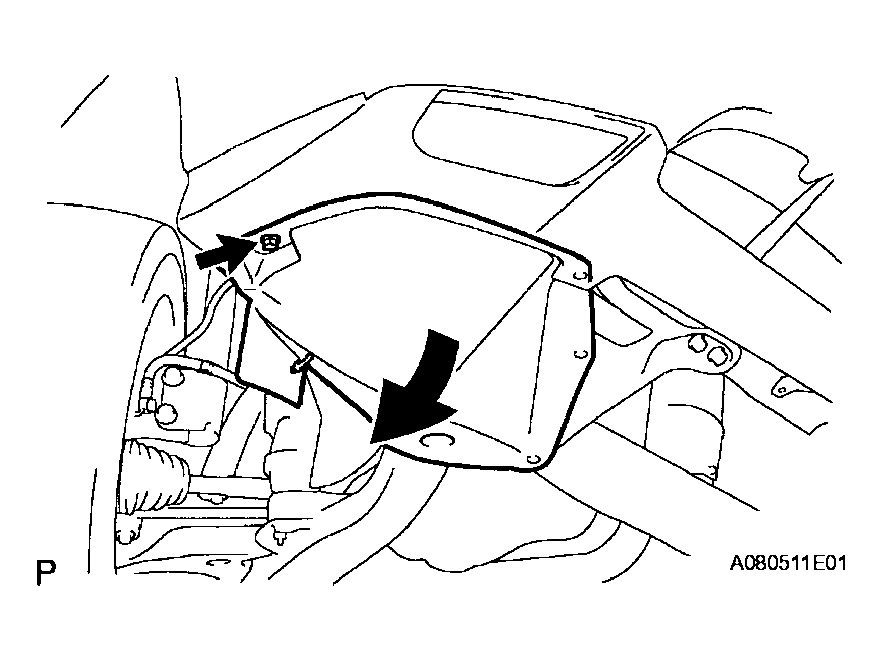

1. Remove the screw, and then open the front fender liner.

  Fig 1: Removing Front Femder Liner Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

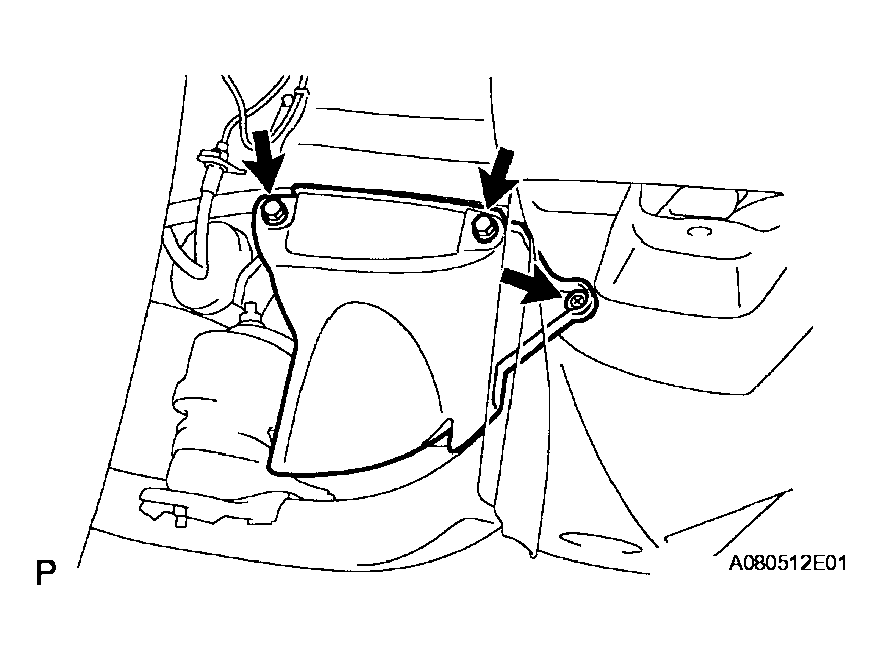

2. Remove the clip and 2 bolts, and then remove the front fender apron seal.
Fig 2: Removing Front Fender Apron Seal Clip And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt, and then remove the crankshaft position sensor.

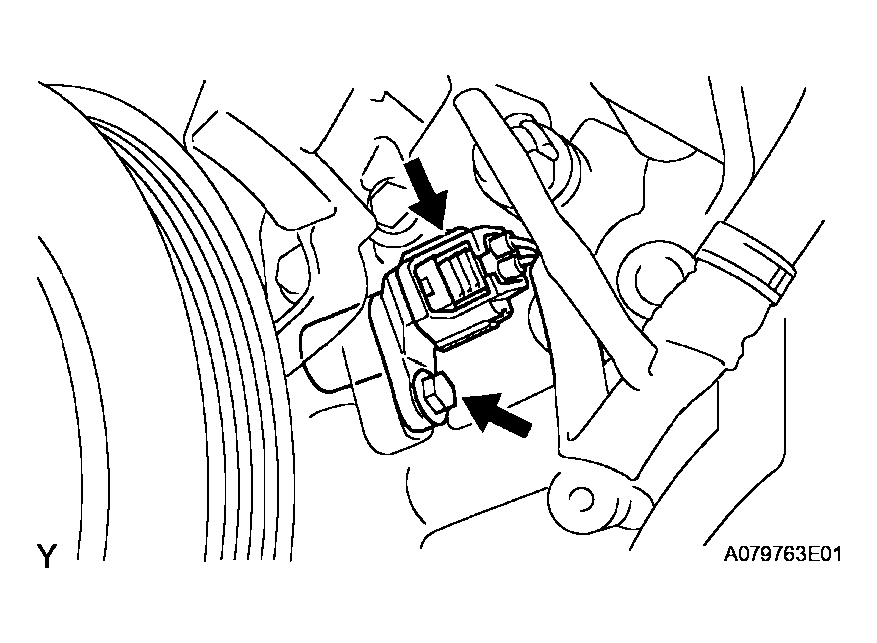

Fig 3: Removing Crankshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
