EFI Relay: Inspection

  1. INSPECT EFI RELAY
    1. Continuity inspection.
      1. Using an ohmmeter, check for resistance between the terminals.

      Resistance

      EFI RELAY

      Terminals Specified Condition
      3-5 10 kΩ or higher
      3-5 Below 1 Ω (Apply battery voltage terminals 1 and 2)

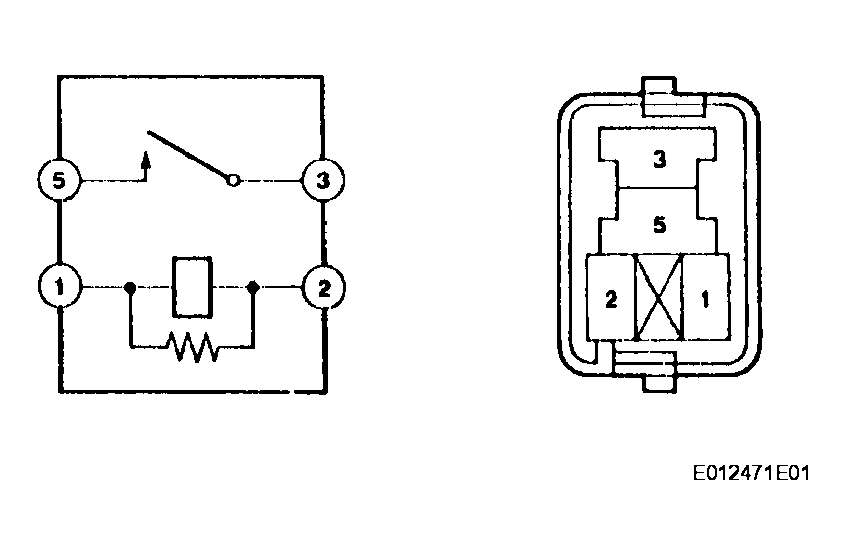

      Fig 1: Inspecting EFI Relay
      G04087522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
