Throttle Body: Inspection
- INSPECT THROTTLE BODY ASSEMBLY
- Resistance inspection

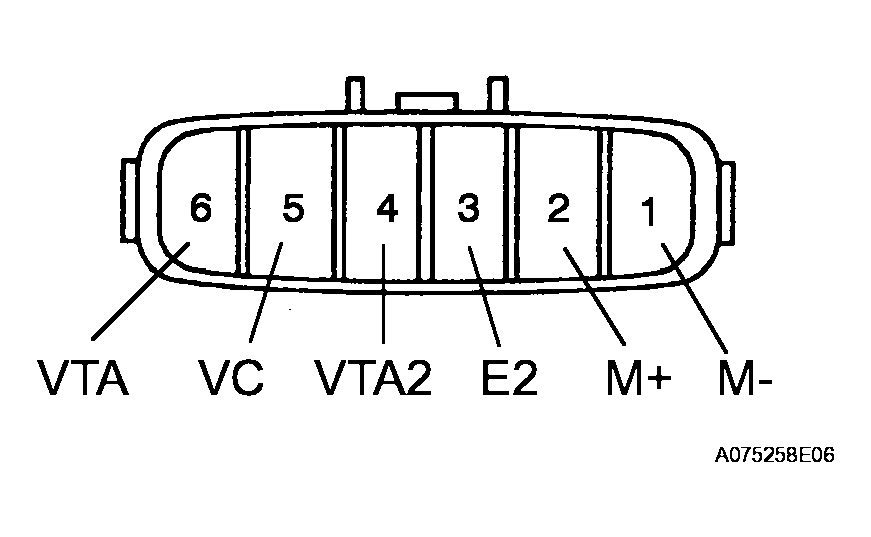

- Using an ohmmeter, measure the resistance between terminals.
Resistance
THROTTLE BODY ASSEMBLY
| Symbols (terminal No.) |
Resistance |
Temperature |
| M+ (2) - M- (1) |
0.3 to 100 Ω |
20°C (68°F) |
| VC (5) - E2 (3) |
1.2 to 3.2 kΩ |
20°C (68°F) |
