VVT Sensor: Installation

INSTALL VVT SENSOR
1. Apply a light coat of engine oil to the O-ring on the VVT sensor.
2. Install the 2 VVT sensors with the 2 bolts.
  Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)
3. Connect the 2 VVT sensor connectors.
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )
INSTALL AIR CLEANER INLET NO. 2 (See INSTALLATION )
CHECK CONNECTION OF VACUUM HOSE
HINT:

See INSTALLATION .
INSTALL ENGINE UNDER COVER NO. 2
1. w/ engine under cover No. 2.

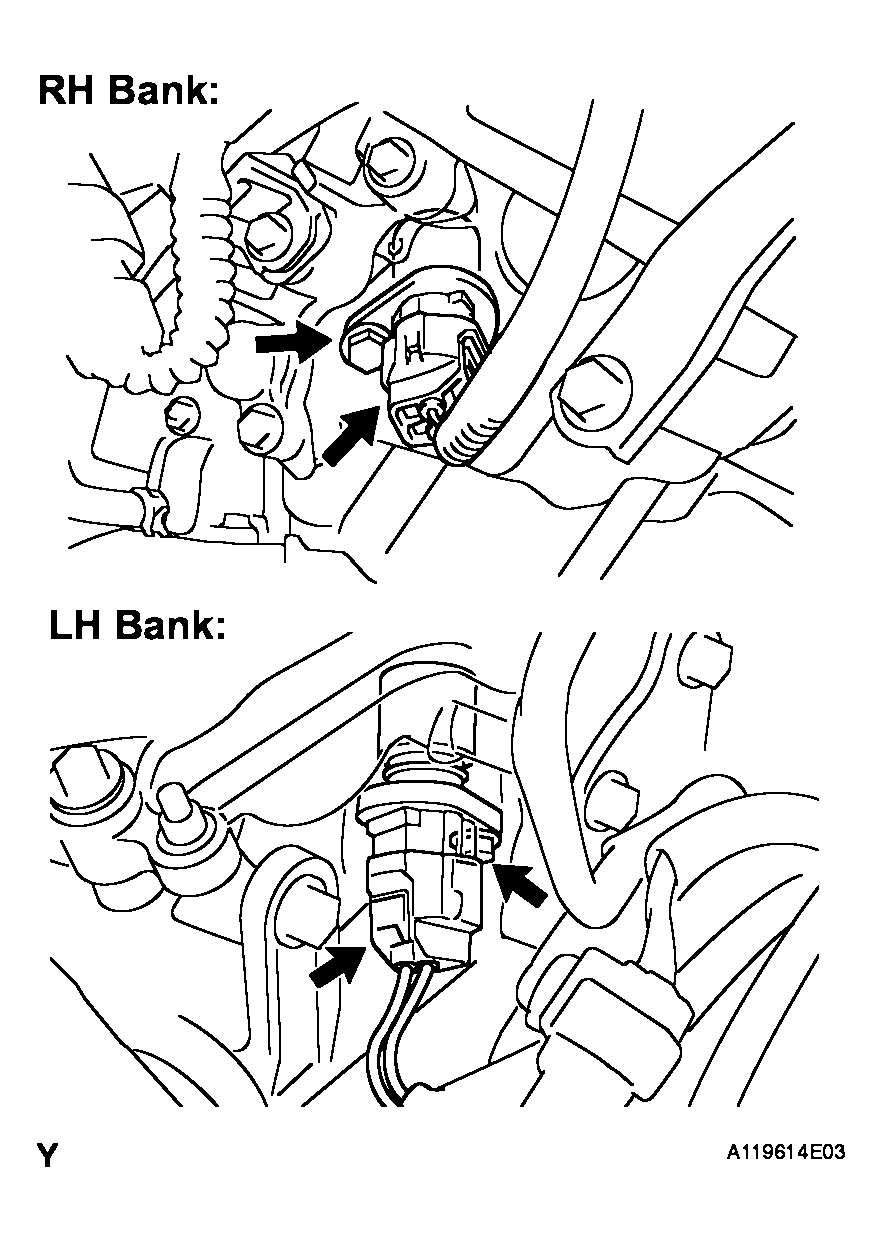

Fig 1: Installing VVT Sensors (LH Bank/RH Bank)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
