Vehicle Identification And Serial Numbers

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label as shown.

      A: Vehicle Identification Number Plate

      B: Certification Label

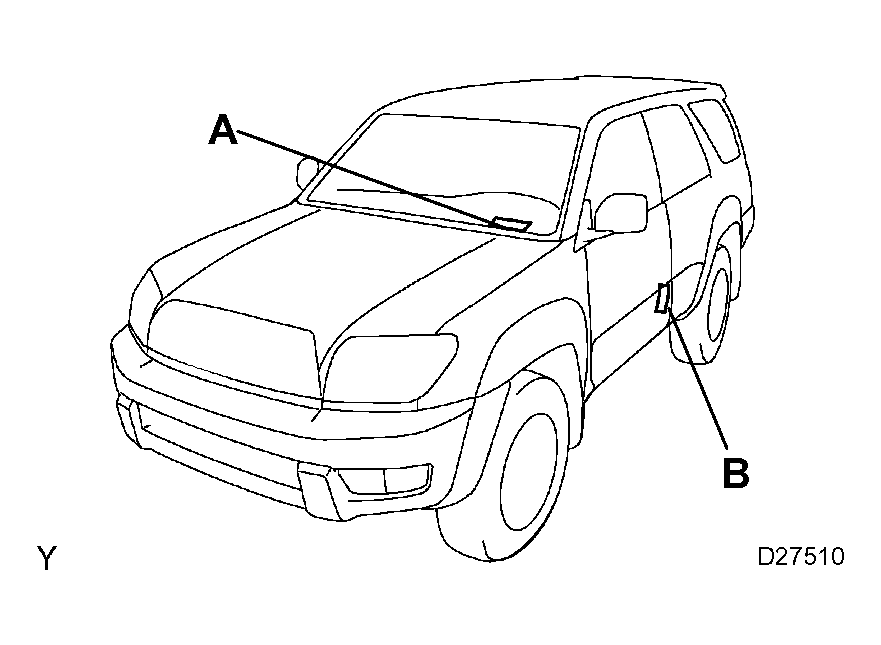

      Fig 1: Identifying Vehicle Number Plate
      G04334667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine, and the transmission serial number is stamped on the housing as shown.

      A: Engine Serial Number

      B: Transmission Serial Number

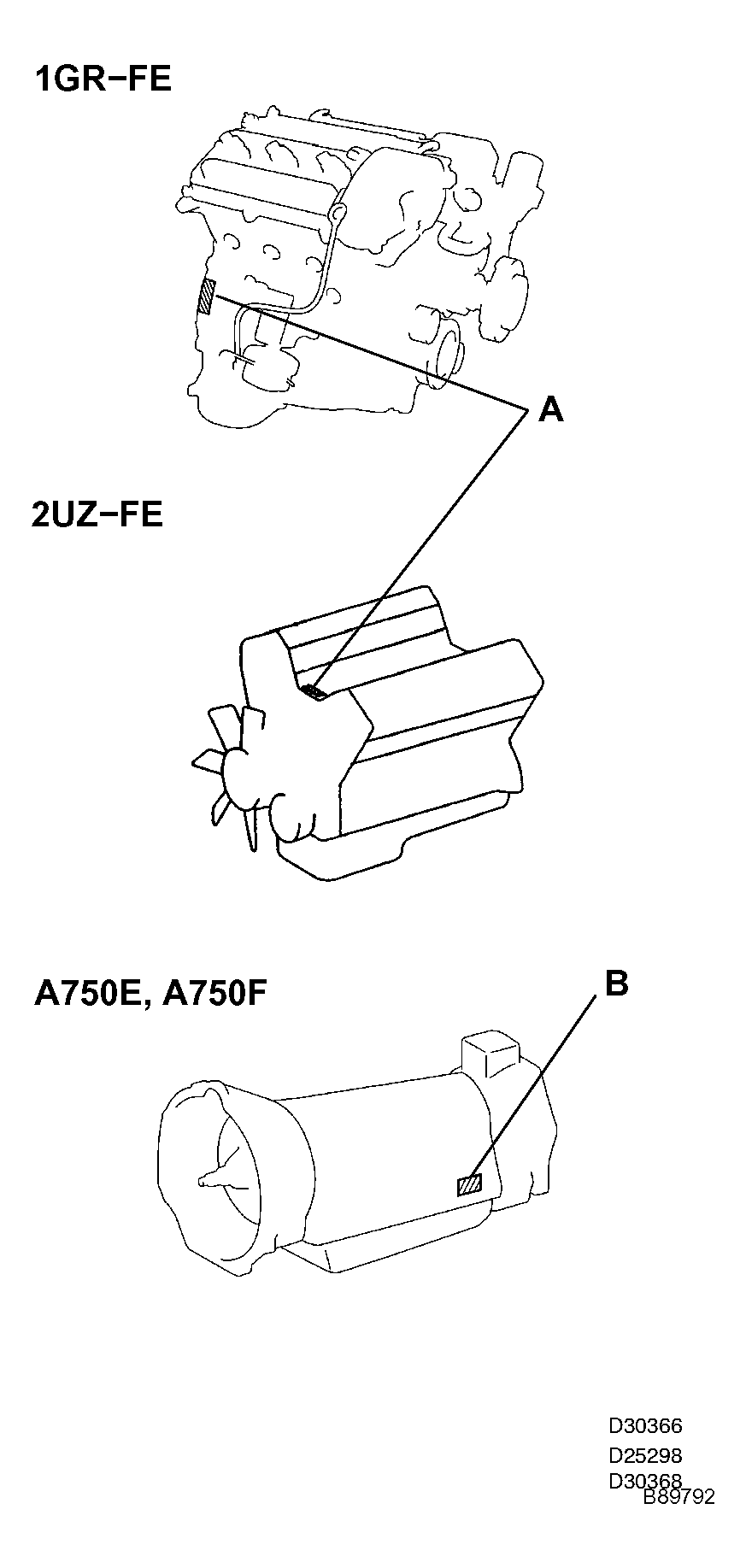

      Fig 2: Identifying Engine Serial Number & Transmission Serial Number
      G04334668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
