Amplifier Microphone ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE ROOF CONSOLE BOX ASSY (See REPLACEMENT )
REMOVE AMPLIFIER MICROPHONE ASSY
1. Remove the 4 screws.

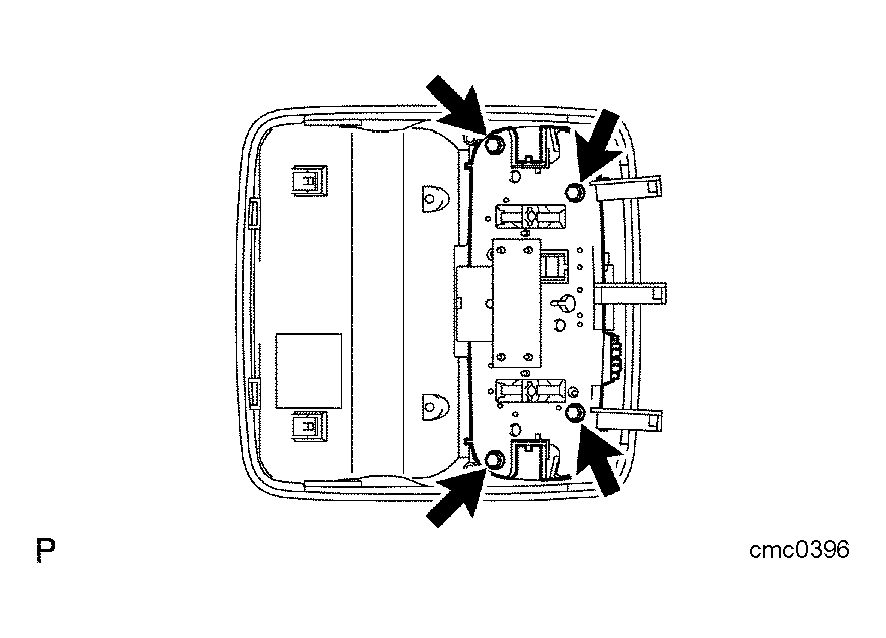

  Fig 1: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector.
3. Disengage the 2 claws and remove the amplifier microphone assy.

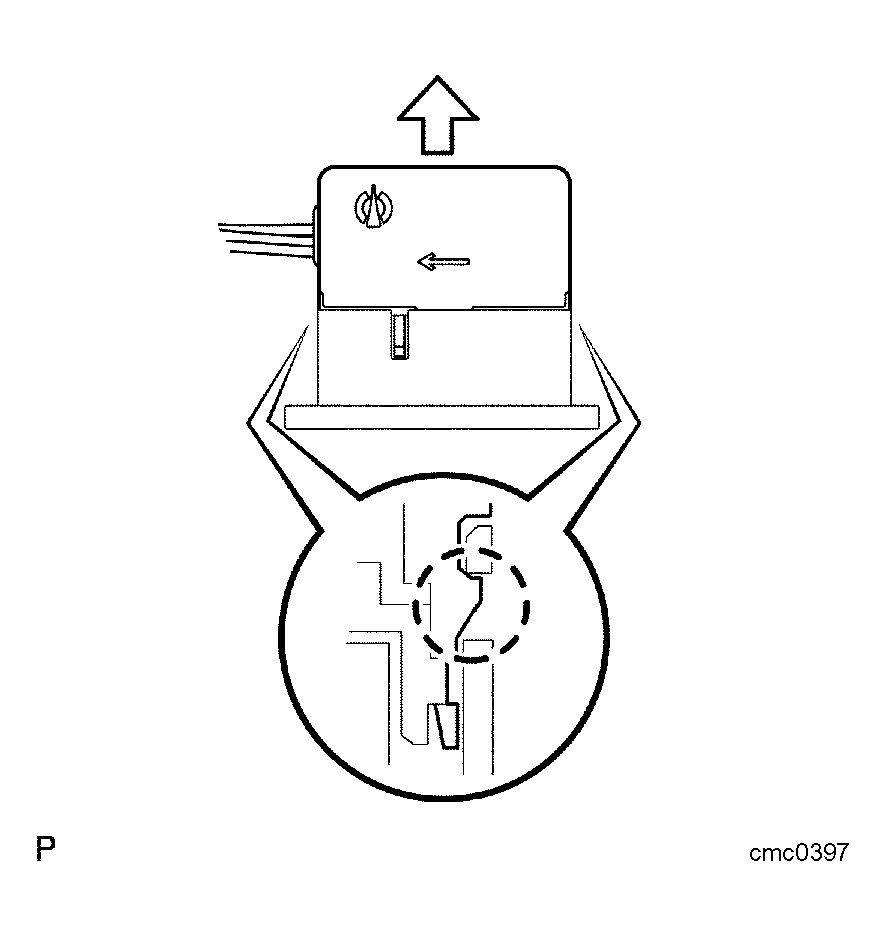

  Fig 2: Removing Claws & Amplifier Microphone Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
