Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Room R/B | On left side of engine compartment. See Figure. |
| Fusible Link Block | In engine room R/B. See Figure. |
| Instrument Panel J/B | Left side of dash. See Figure. |
| Overhead J/B | Front center of roof. See Figure. |
| J/B No. 2 | In engine room R/B. See Figure. |
| J/B No. 3 | Left side of dash. See Figure. |
| J/B No. 4 | Right side of dash. See Figure. |
| R/B No. 1 | Left side of dash. See Figure. |
| R/B No. 3 | Right side of engine compartment. See Figure. |

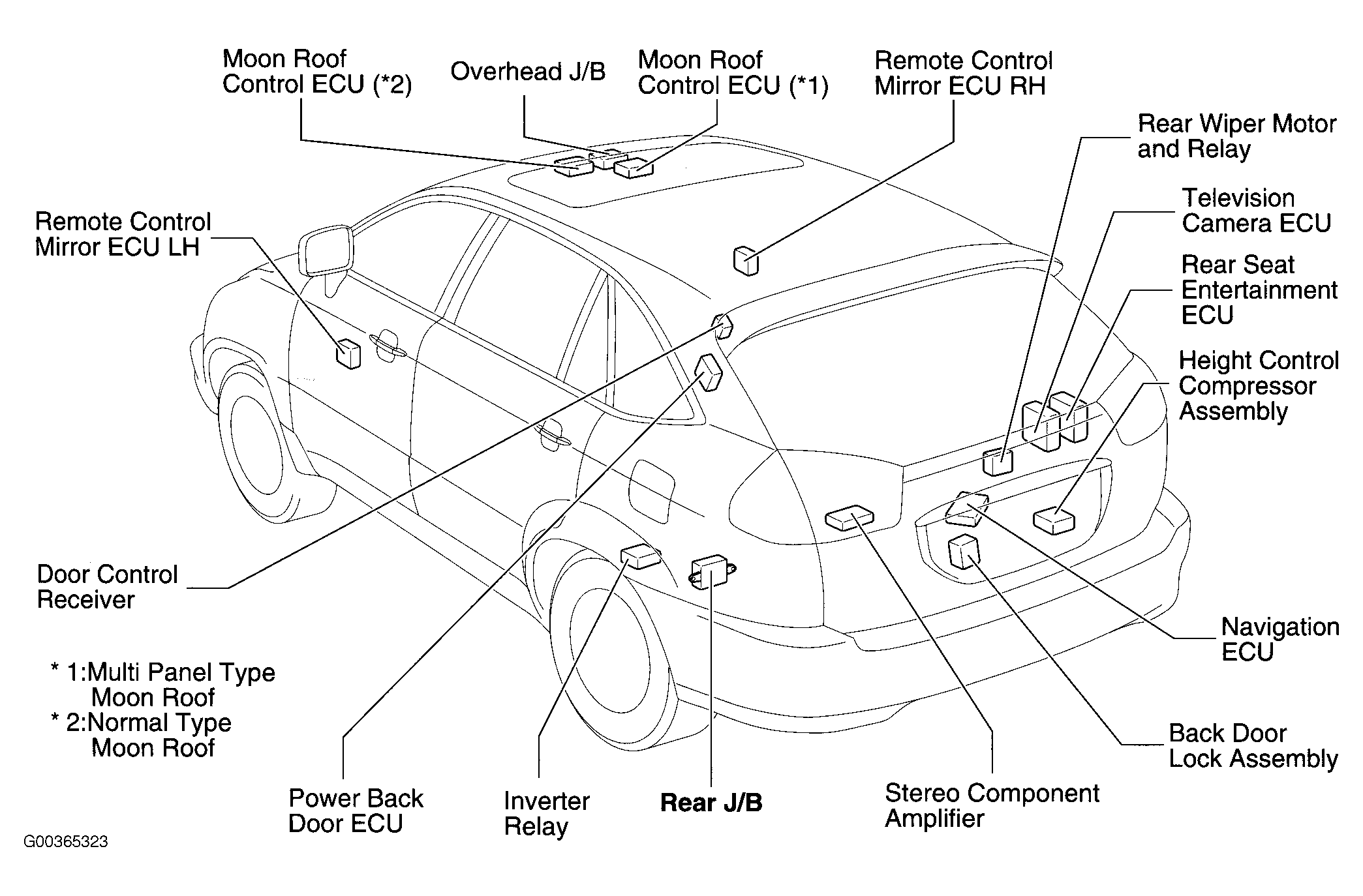

| Rear J/B | Left rear side of cargo area. See Figure. |
