Front Seat Inner Belt Assembly: Inspection

INSPECT FRONT SEAT INNER BELT ASSEMBLY RH

Disconnect the front seat inner belt assembly.
Measure the resistance of each terminal of the switch when the switch is operated.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
4 - 5	Seat belt is fastened	Below 1 Ω
4 - 5	Seat belt is unfastened	10 kΩ or higher

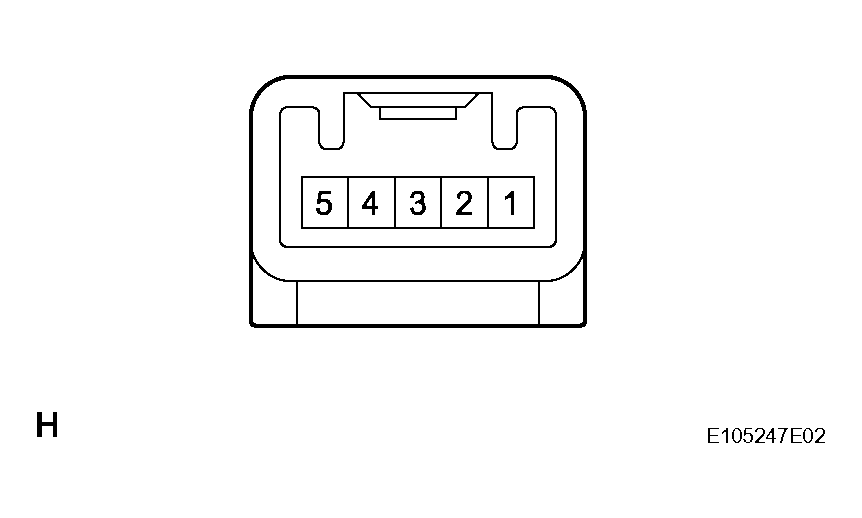

Fig 1: Identifying Front Seat Inner Belt Assembly Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

Disconnect the front seat inner belt assembly.
Measure the resistance of each terminal of the switch when the switch is operated.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
4 - 5	Seat belt is fastened	Below 1 Ω
4 - 5	Seat belt is unfastened	10 kΩ or higher

Fig 2: Identifying Front Seat Inner Belt Assembly Connector
