Height Control Valve: Installation

INSTALL HEIGHT CONTROL VALVE SUB-ASSY NO.1

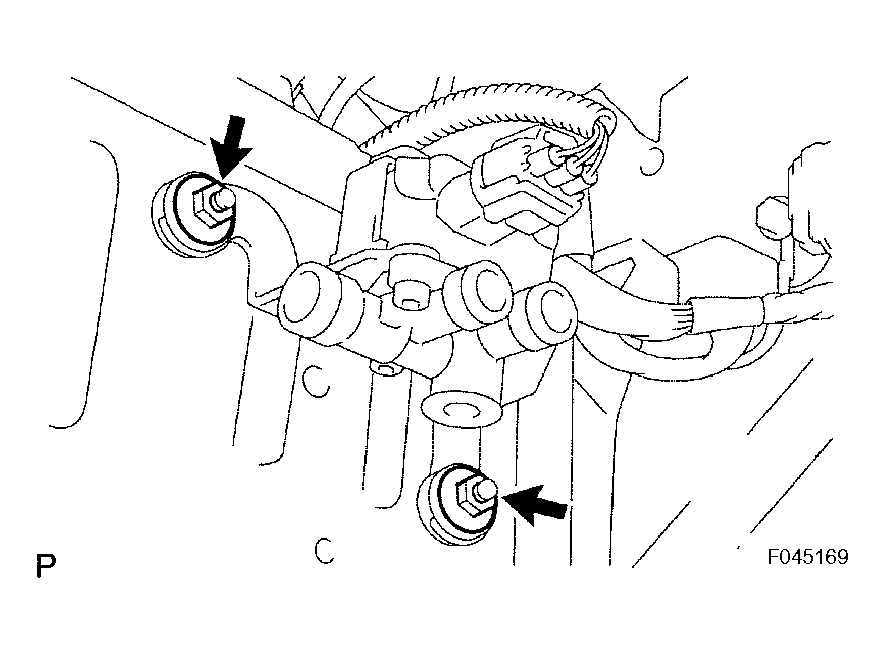

1. Install the height control valve sub-assembly No.1 with the 2 nuts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Coat 2 new O-rings with MP grease No.2 and install them on each height control tube.

  Fig 1: Installing Height Control Valve Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

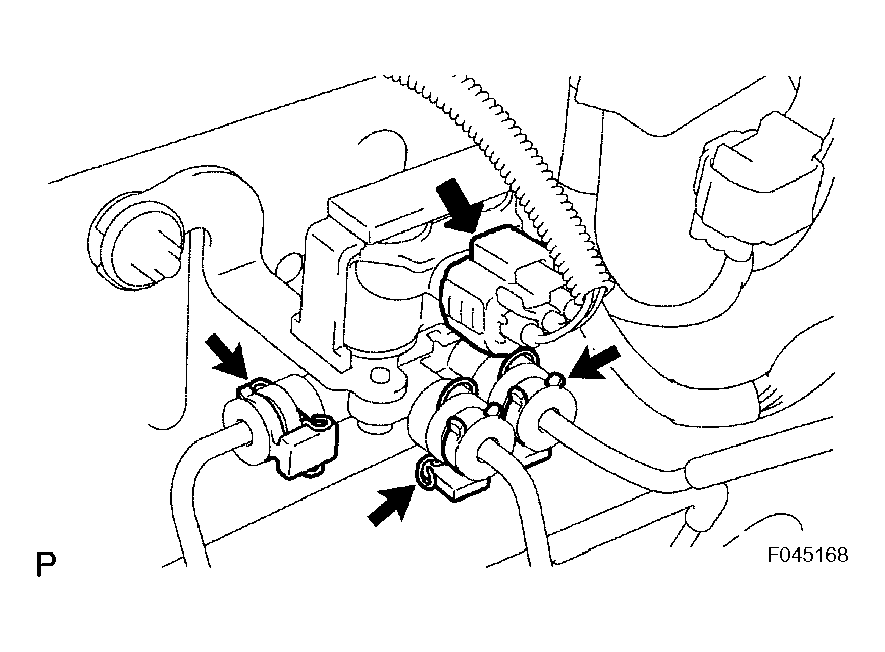

3. Connect the 3 height control tubes onto the height control valve sub-assembly No.1.
  HINT:

  For the removal procedure of the (type 3) tube, refer to PRECAUTION .
4. Connect the connector.
INSPECT AIR LEAK
INSTALL FRONT BUMPER COVER
INSTALL FRONT FENDER SPLASH SHIELD SUBASSY LH
INSTALL FRONT FENDER SPLASH SHIELD SUBASSY RH
INSTALL ENGINE UNDER COVER NO.1
INSTALL HEIGHT CONTROL VALVE SUB-ASSEMBLY NO. 2

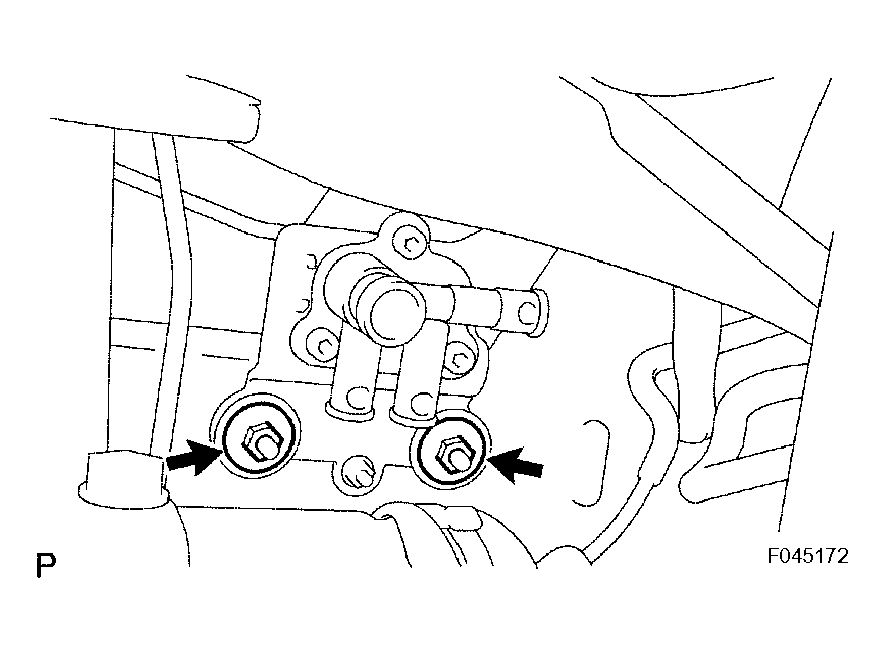

1. Install the height control valve sub-assembly No.2 with the 2 nuts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 3: Installing Height Control Valve Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the O-ring with MP grease.
3. Install the O-ring onto the height control tube.
4. Connect the height control tube.
  HINT:

  For the removal procedure of the (type 3) tube, refer to PRECAUTION

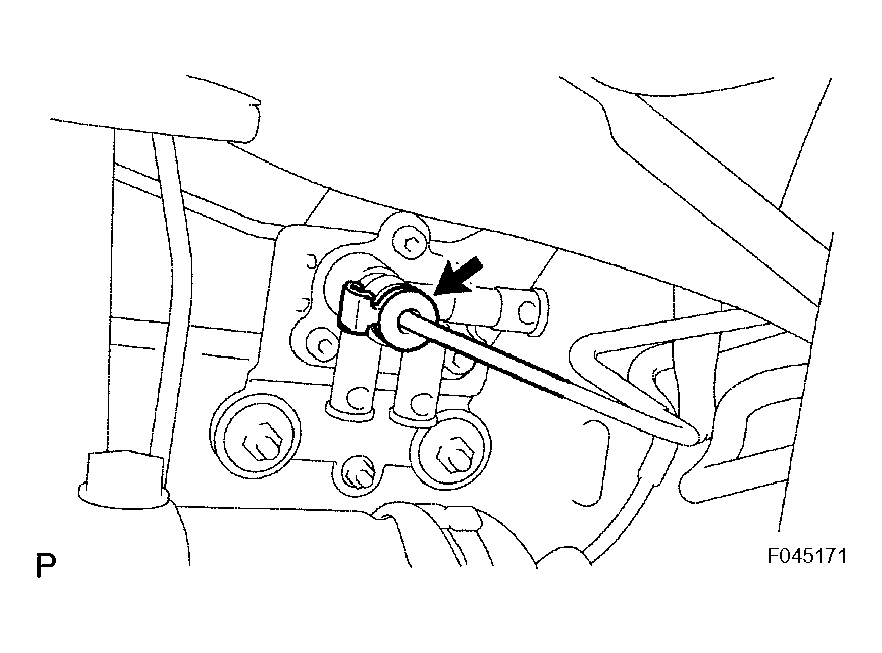

5. Install 6 new O-ring and 3 new plates to each installed part of the height control valve No.2 tube.

  Fig 4: Installing New O-Ring And Plates
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  When the height control valve No.2 is replaced with a new one, it does not require a new O-ring.

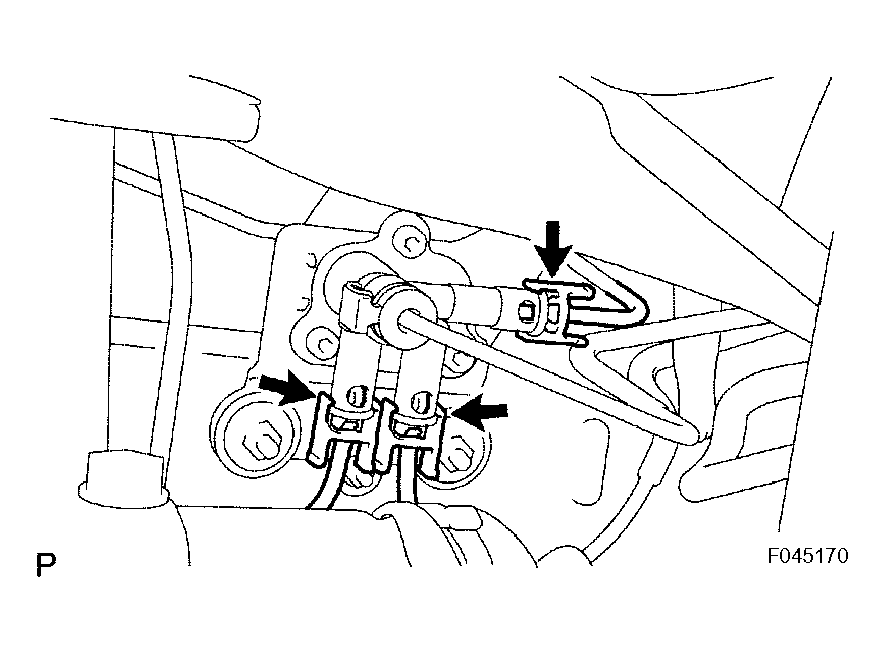

6. Install the 3 height control tubes.
  HINT:

  For the removal procedure of the (type 2) tube, refer to PRECAUTION
7. Connect the connector.
INSPECT AIR LEAK
