Pneumatic Tank With Tube: Installation

INSTALL PNEUMATIC W/TUBE TANK ASSEMBLY
1. Align the matchmark holes on the pneumatic w/ tube tank assembly with the proper positions, and install it to the body with 3 bolts.
  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
2. Coat 2 new O-rings and a new plate with MP grease.
3. Install the 2 O-rings and the plate onto the height control tube No. 2.

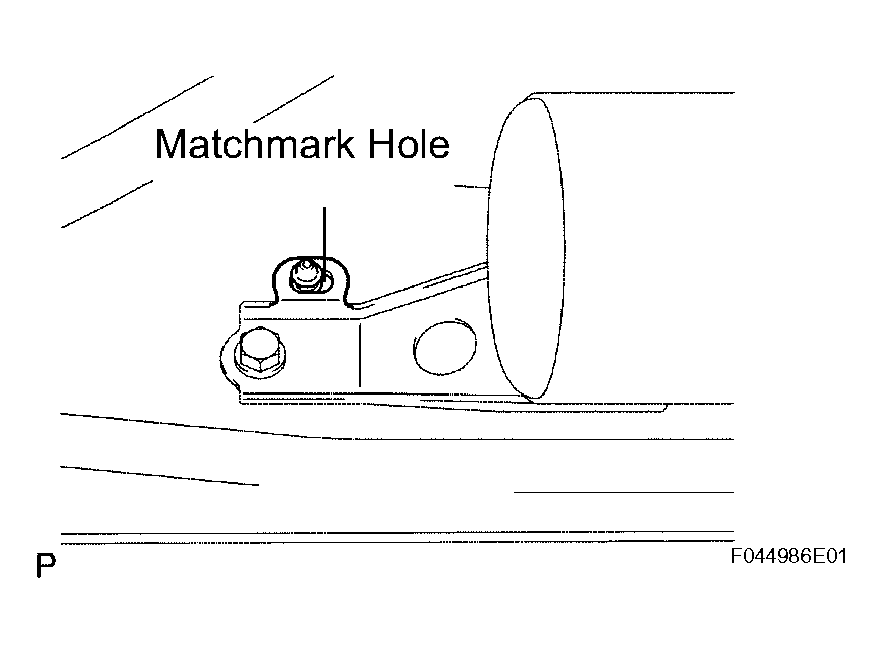

  Fig 1: Identifying Matchmarks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - For the removal procedure of the (type 2) tube, refer to PRECAUTION .
  - When the pneumatic w/ tube tank assembly is replaced with a new one, it does not require a new O-ring.

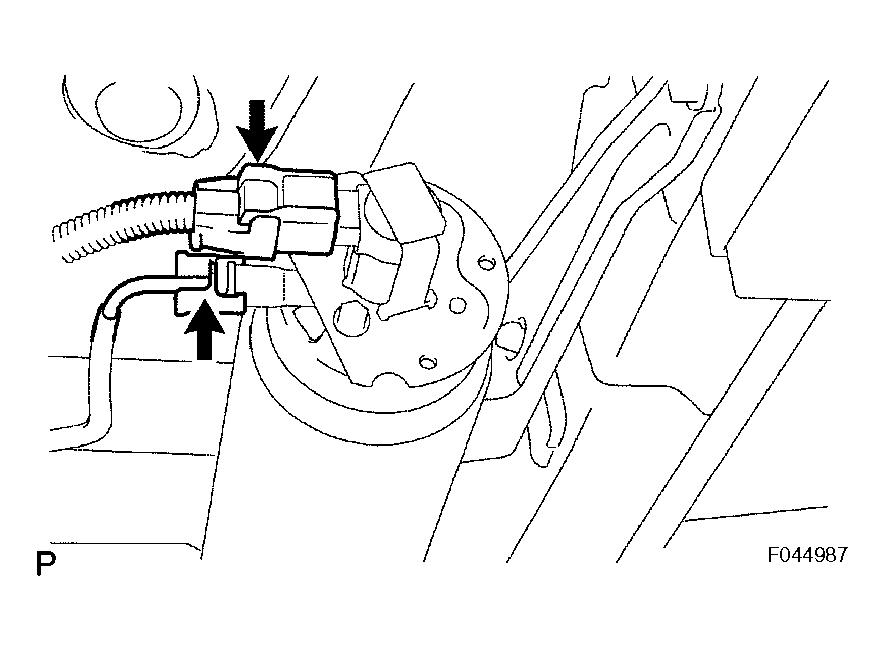

4. Connect the tube and the connector to the pneumatic w/ tube tank assembly.

  Fig 2: Connecting Tube And Connector To Pneumatic W/ Tube Tank Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

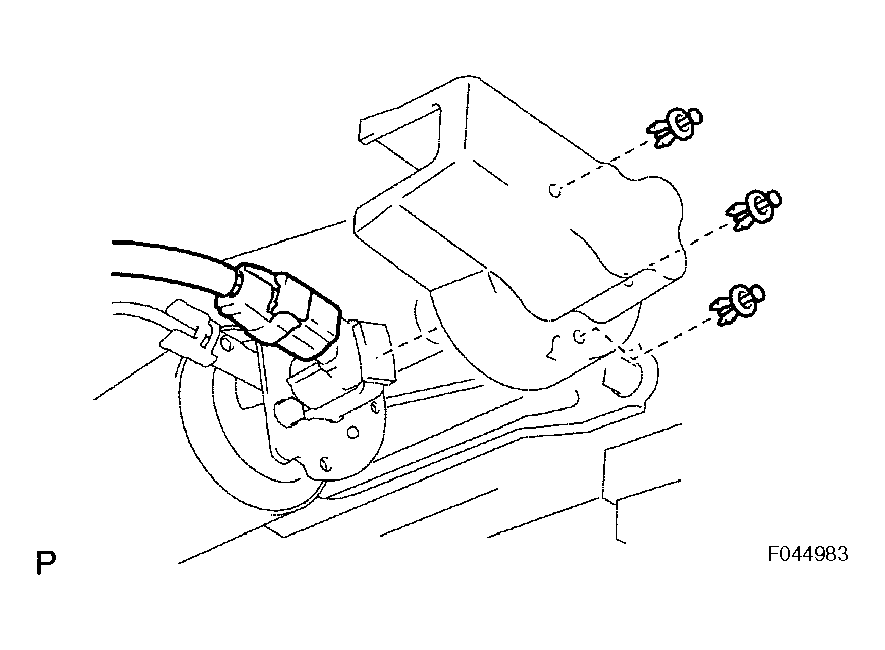

5. Install the height control tank cover with the 3 clips.

  Fig 3: Installing Height Control Tank Cover With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

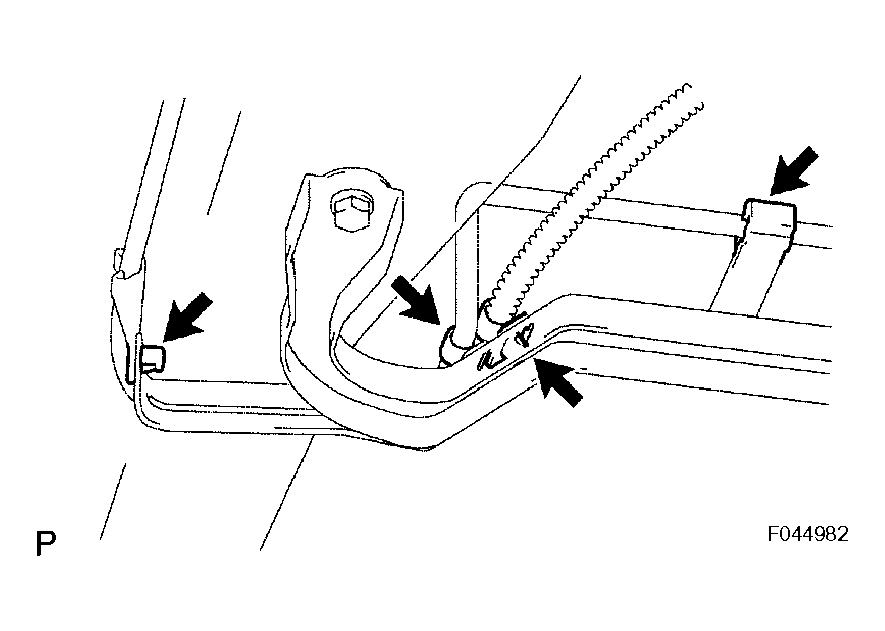

6. Install the 4 clamps.
Fig 4: Installing Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT AIR LEAK
