Suspension Control Ecu: Installation

  1. INSTALL SUSPENSION CONTROL ECU
    1. Install the suspension control ECU with the 2 bolts onto the bracket.

      Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

    2. Connect the suspension control ECU connector.
  2. INSTALL AIR CONDITIONER AMPLIFIER ASSEMBLY
  3. INSTALL ECM
  4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
  5. INSTALL INSTRUMENT PANEL UNDER COVER SUBASSEMBLY NO. 2
  6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
  7. INSTALL FRONT DOOR SCUFF PLATE RH

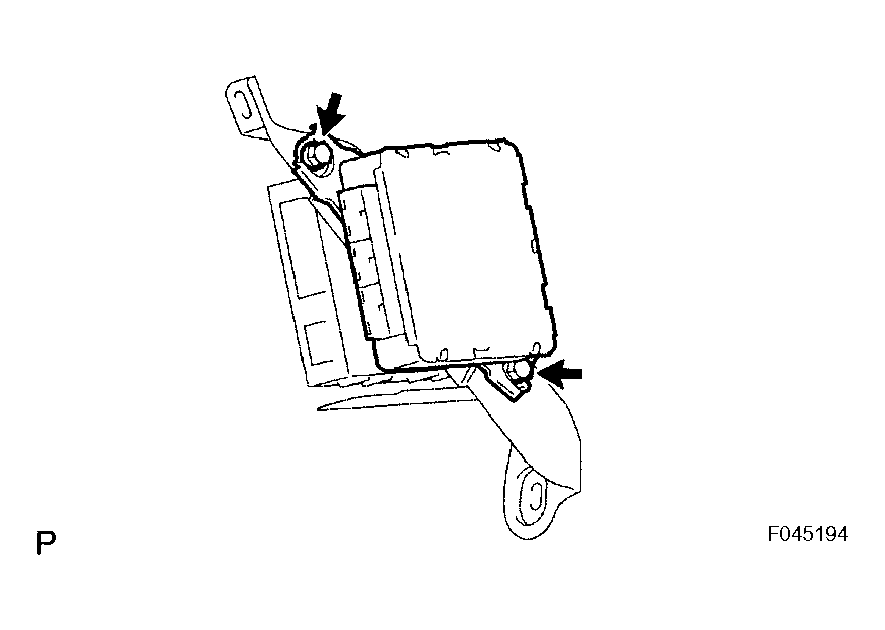

    Fig 1: Installing Front Door Scuff Plate RH
    G04090310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
