Transfer Unit: Inspection

INSPECT PRELOAD

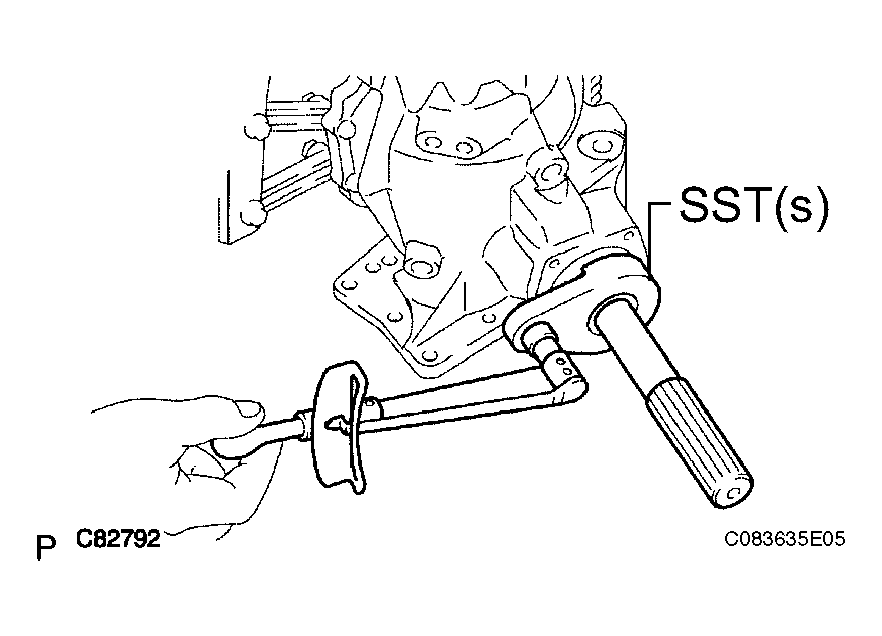

1. Using SST(s) and a torque wrench, check the initial torque within the backlash range.

  Fig 1: Checking Initial Torque Within Backlash Range
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09326-20011

  Torque:

  0.9 to 1.4 N*m (9 to 14 kgf*cm, 8.0 to 12.4 in.*lbf)

  HINT:

  Use a torque wrench with a fulcrum length of 160 mm (6.30 in.).
2. Using SST(s) and a torque wrench, check the initial torque while the driven pinion is in contact with the ring gear face.
SST 09326-20011

Torque :

Preload + 0.15 to 0.30 N*m (+1.6 to 3.1 kgf*cm, +1.3 to 2.7 in.*lbf)

HINT:

Use a torque wrench with a fulcrum length of 160 mm (6.30 in.).
INSPECT DIFFERENTIAL RING GEAR BACKLASH

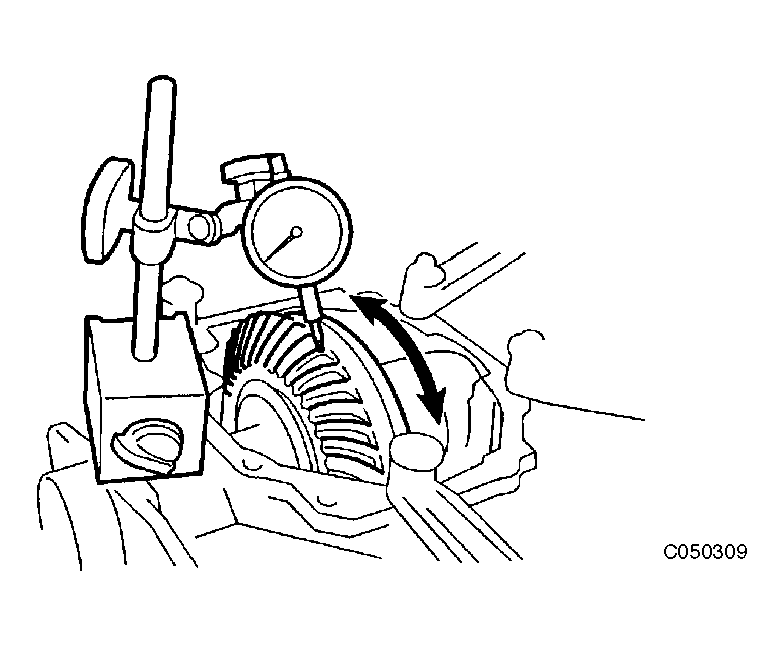

1. Set the dial gauge perpendicular to the tooth face of the ring gear, fix the driven pinion and inspect the backlash while moving the gear.
Fig 2: Checking Differential Ring Gear Backlash
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Backlash:

0.10 to 0.15 mm (0.0039 to 0.0059 in.)

NOTE: Inspect it at 3 points or more on the gear's periphery.
INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

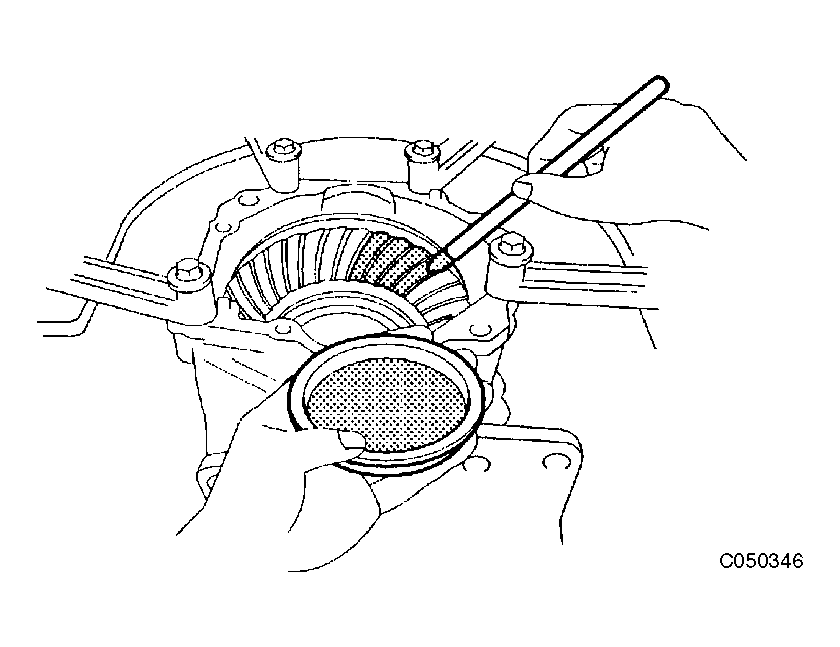

1. Apply red lead primer thinly and uniformly to both faces of the ring gear and rotate several times.
Fig 3: Applying Red Lead Primer To Both Faces Of Ring Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Inspect the tooth contact on the ring gear at 4 places or more.
INSPECT RUNOUT OF TRANSFER RING GEAR MOUNTING CASE

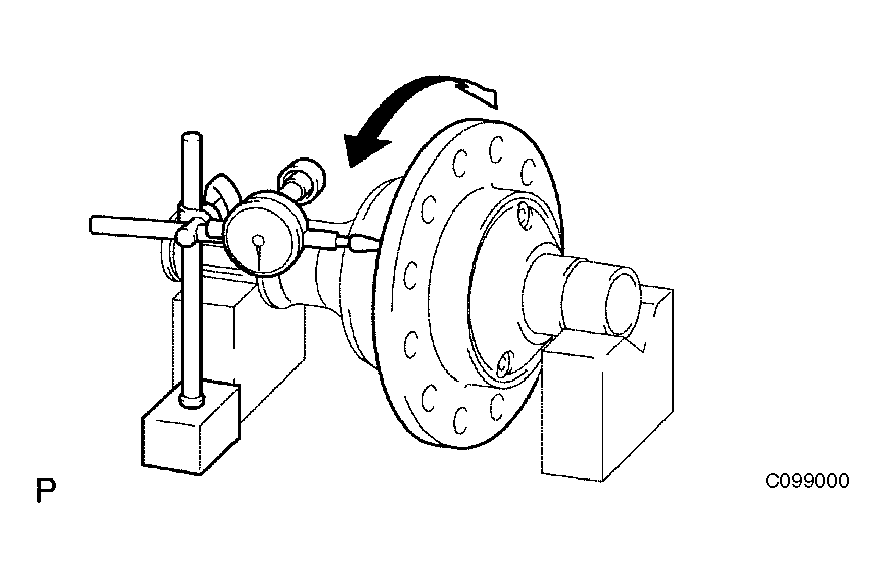

1. Using a dial gauge check the transfer ring gear mounting case runout.
Fig 4: Checking Transfer Ring Gear Mounting Case Runout
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum runout:

0.03 mm (0.0012 in.)
