Height Control Compressor: Components

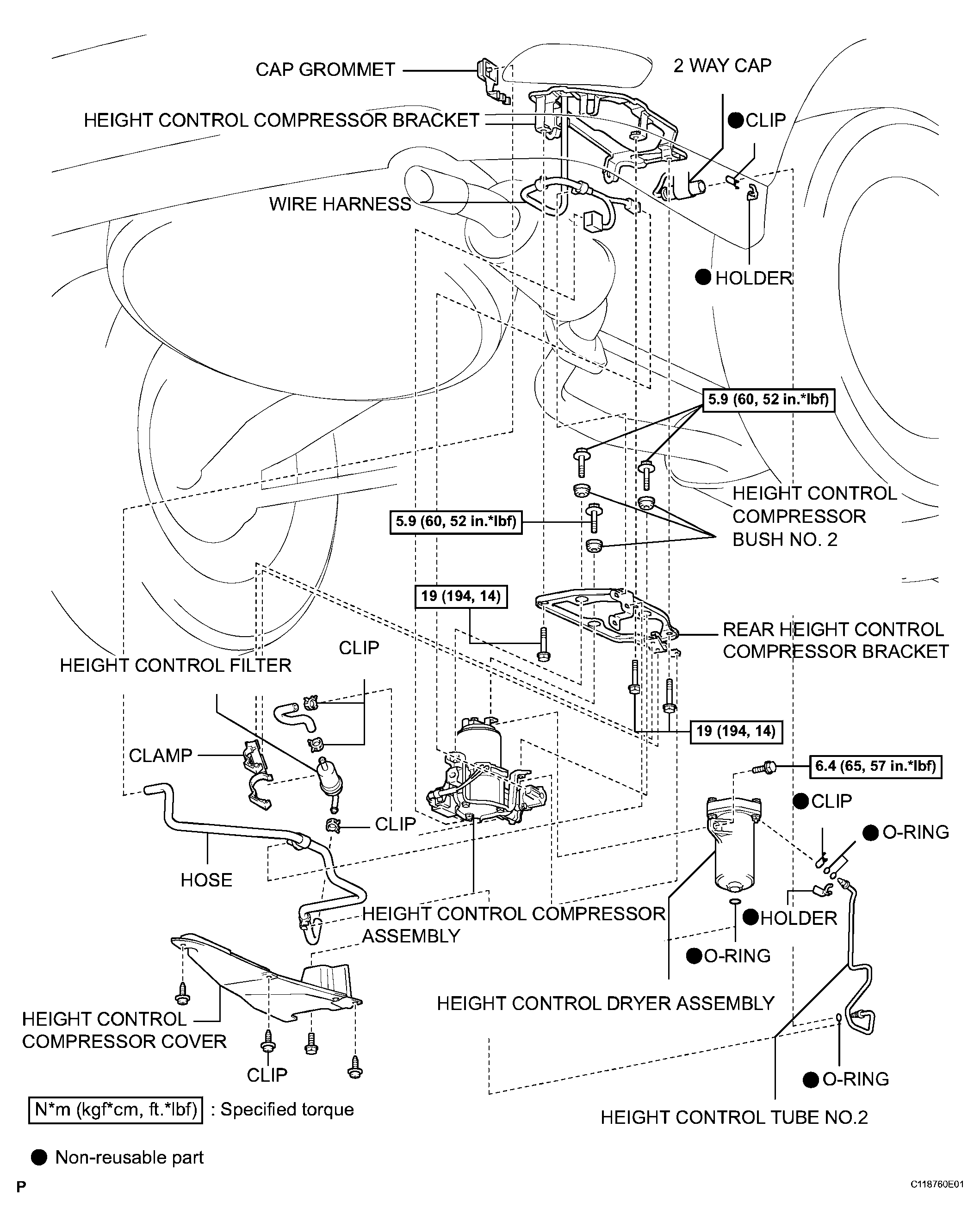

Fig 1: Height Control Compressor Replacement Components With Torque Specifications
G04090253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
