Front Speed Sensor: Inspection
- INSPECT FRONT SPEED SENSOR
- Make sure that there is no looseness at the connectors' locking part and connecting part of connector.
- Disconnect the speed sensor connector.

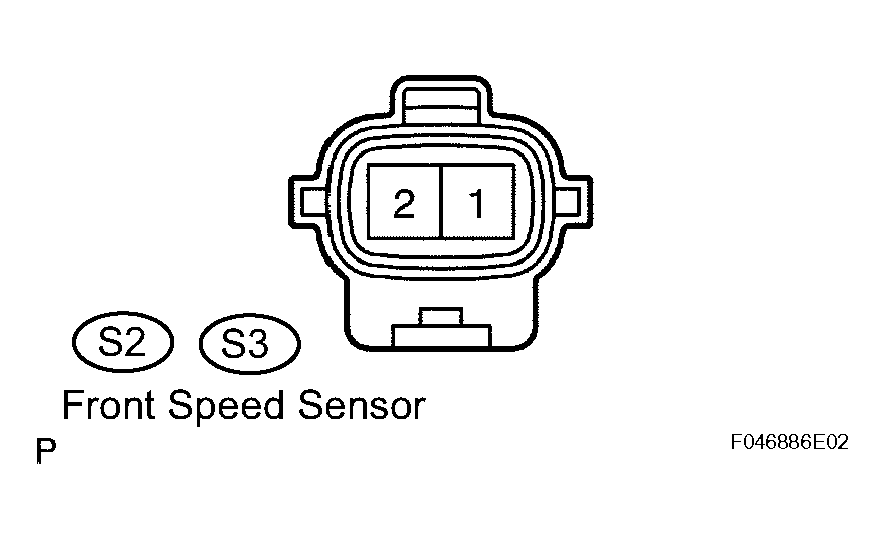

- Measure the resistance according to the value(s) in the table below.
Resistance:
LH
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition S2-2 (FL+) - S2-1 (FL-) 0.6 to 2.5 kΩ RH
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition S3-2 (FR+) - S3-1 (FR-) 0.6 to 2.5 kΩ - Measure the resistance according to the value(s) in the table below.
Resistance:
LH
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition S2-2 (FL+) - Body ground 10 kΩ or higher S2-1 (FL-) - Body ground 10 kΩ or higher RH
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition S3-2 (FR+) - Body ground 10 kΩ or higher S3-1 (FR-) - Body ground 10 kΩ or higher Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NOTE: Check the speed sensor signal after replacement (See DTC CHECK / CLEAR ).
