Front Speed Sensor: Installation

INSTALL SPEED SENSOR FRONT LH
1. Install the speed sensor front with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE: Prevent foreign matter from attaching to the sensor tip.

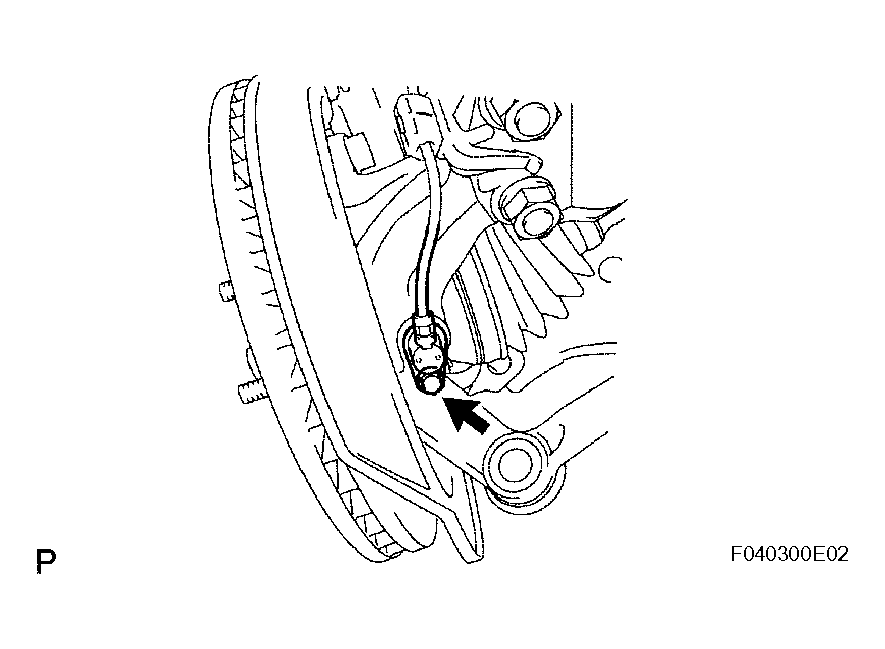

  Fig 1: Installing Speed Sensor Front With Bolt
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Install the speed sensor front with the 2 bolts and the clamp.
  Torque: Bolt A

  5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Bolt B

  29 N*m (296 kgf*cm, 21 ft.*lbf)

  NOTE: Do not twist the sensor wire when installing the sensor.
3. Connect the speed sensor connector.
INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CHECK ABS SPEED SENSOR SIGNAL

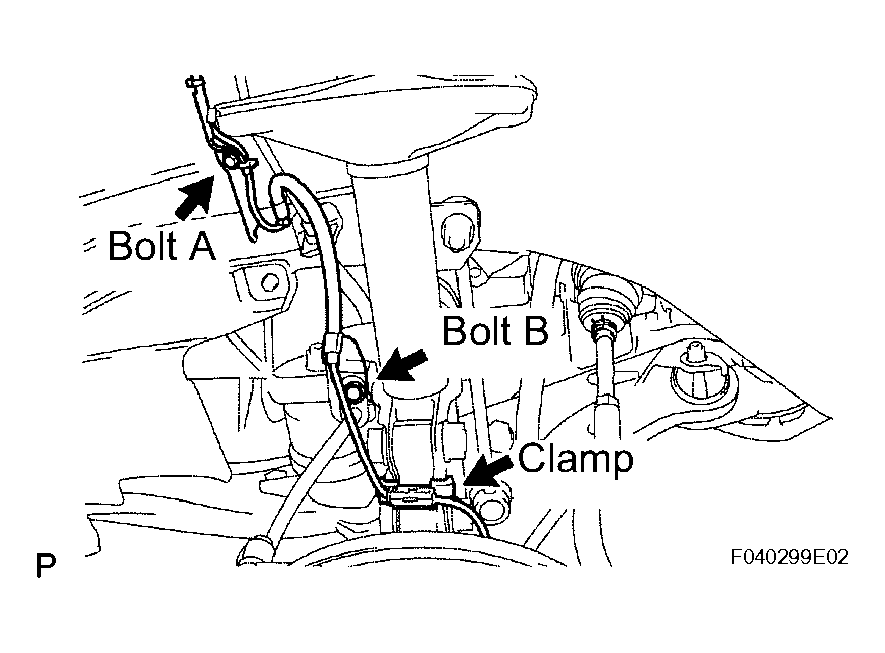

Fig 2: Installing Speed Sensor Front With Bolts And Clamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

(See DIAGNOSTIC TROUBLE CODE CHART ).
