Steering Angle Sensor: Installation

  1. INSTALL STEERING SENSOR
    1. Install the steering sensor to the spiral cable.
      NOTE:
      • Install the claw securely.
      • Do not damage the claw.

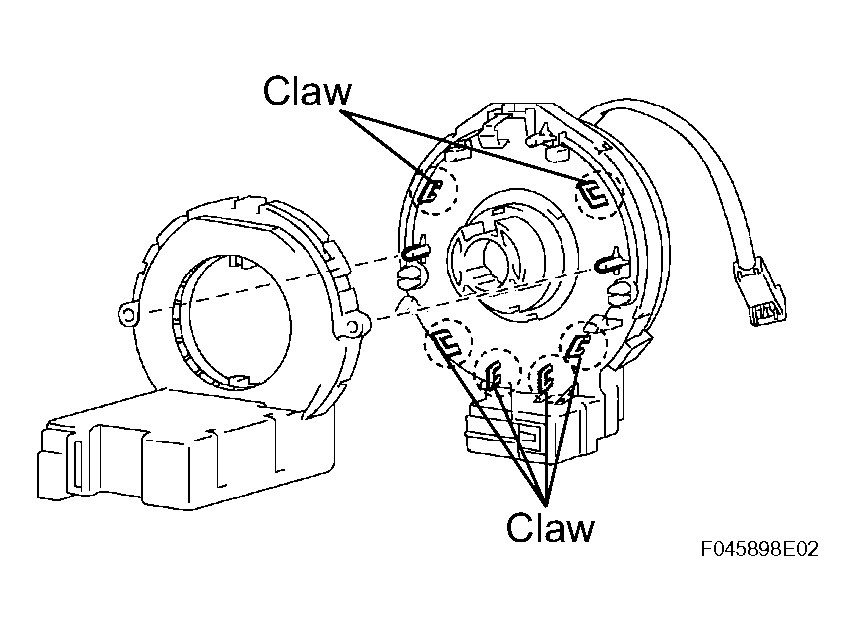

        • Fig 1: Installing Steering Sensor To Spiral Cable
        G04090670Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. ADJUST CENTER FRONT WHEEL
  3. INSTALL SPIRAL CABLE (See  INSTALLATION  )
  4. ADJUST SPIRAL CABLE
  5. INSTALL STEERING WHEEL ASSEMBLY (for Manual Tilt) (See  INSTALLATION  )
  6. INSTALL STEERING WHEEL ASSEMBLY (for Power Tilt and Power Telescopic) (See  INSTALLATION  )
  7. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  8. INSPECT STEERING WHEEL CENTER POINT
  9. INSPECT STEERING PAD ASSEMBLY
  10. INSPECT SRS WARNING LIGHT

    HINT:

    See DIAGNOSIS SYSTEM

  11. INSPECT ABS WARNING LIGHT AND VSC WARNING LIGHT

    HINT:

    See DIAGNOSTIC TROUBLE CODE CHART
