Yaw Rate And Acceleration Sensor: Installation

INSTALL YAWRATE SENSOR
1. Install the yawrate sensor with the 2 bolts.
  Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)
2. Connect the connector.

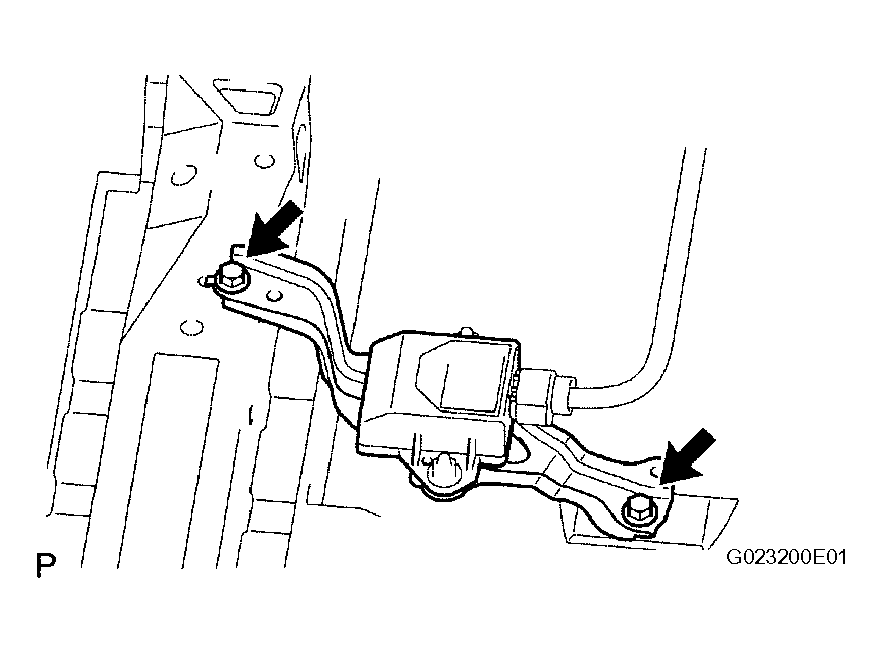

Fig 1: Installing Yawrate Sensor With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

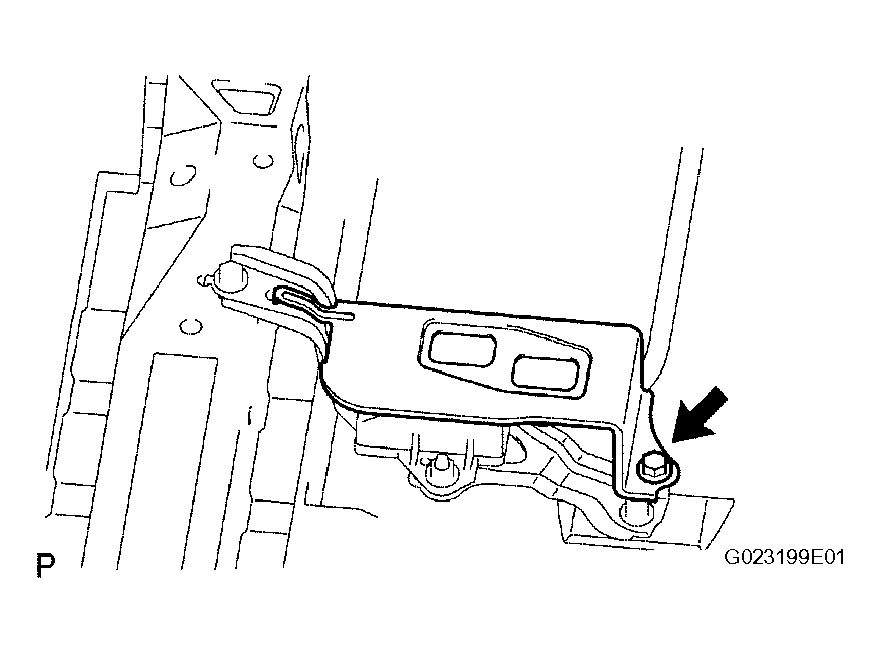

INSTALL YAWRATE SENSOR PROTECTOR
1. Install the sensor protector with the bolt.
INSTALL CENTER PILLAR GARNISH LOWER RH
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
INSTALL REAR DOOR SCUFF PLATE RH
INSTALL FRONT DOOR SCUFF PLATE RH
INSTALL FRONT SEAT ASSEMBLY RH
HINT:

See INSTALLATION
PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION
HINT:

See CALIBRATION
