Dynamic Laser Cruise Control: Notes

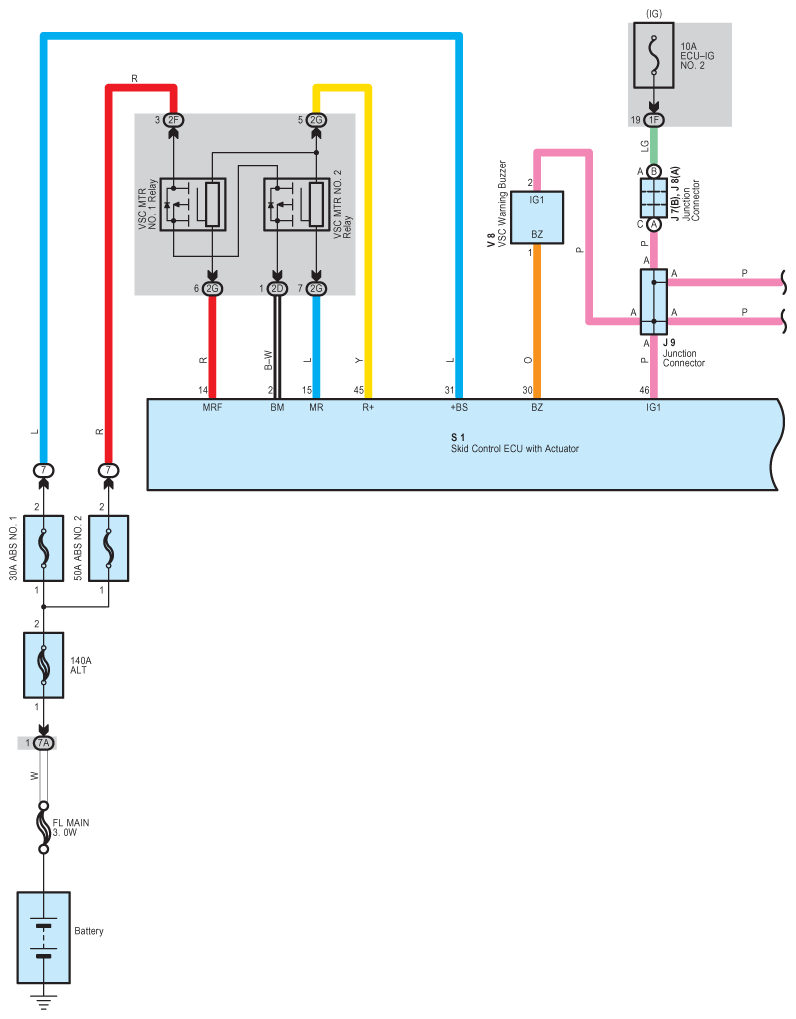

Fig 1: Dynamic Laser Cruise Control - Wiring Diagram (1 Of 9)
G08928985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

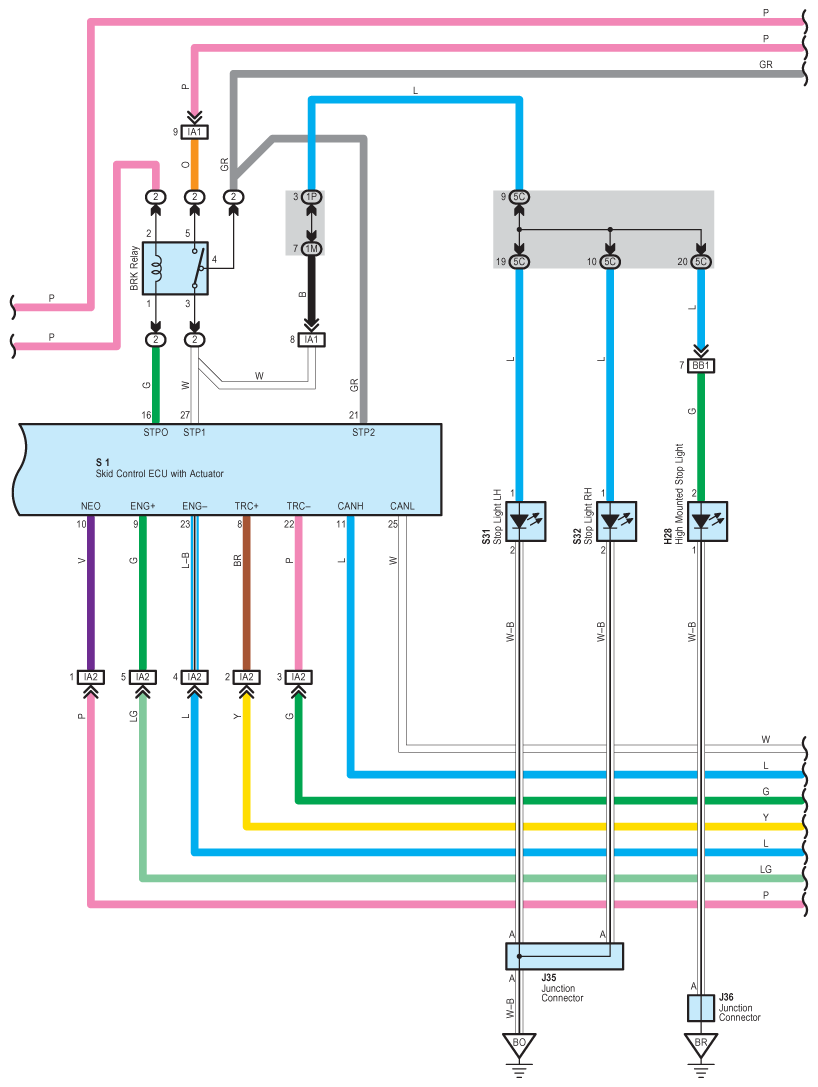

Fig 2: Dynamic Laser Cruise Control - Wiring Diagram (2 Of 9)
G08928986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

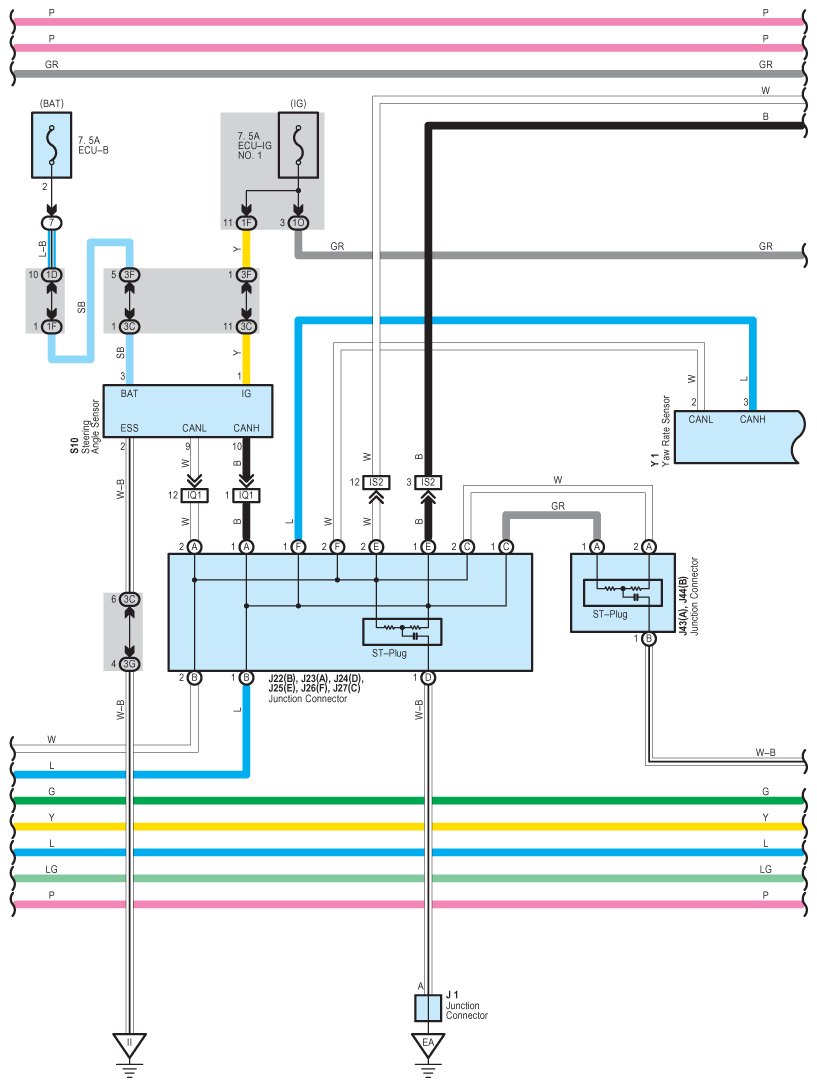

Fig 3: Dynamic Laser Cruise Control - Wiring Diagram (3 Of 9)
G08928987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

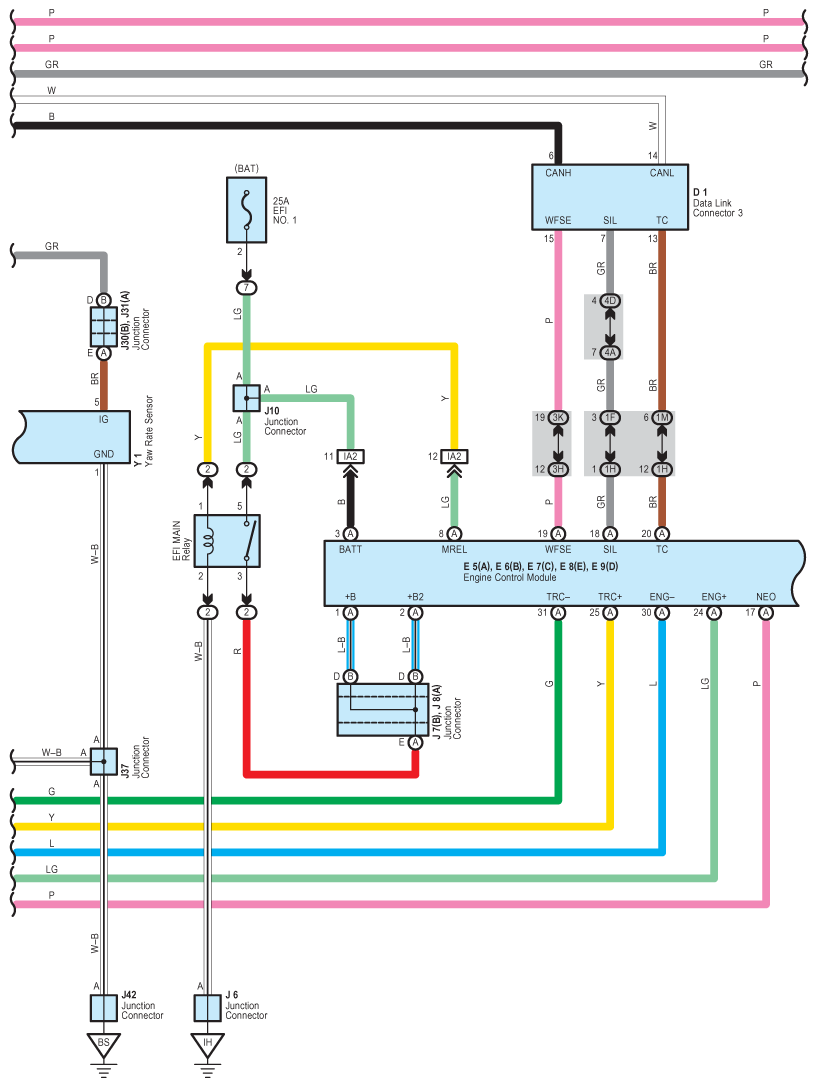

Fig 4: Dynamic Laser Cruise Control - Wiring Diagram (4 Of 9)
G08928988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

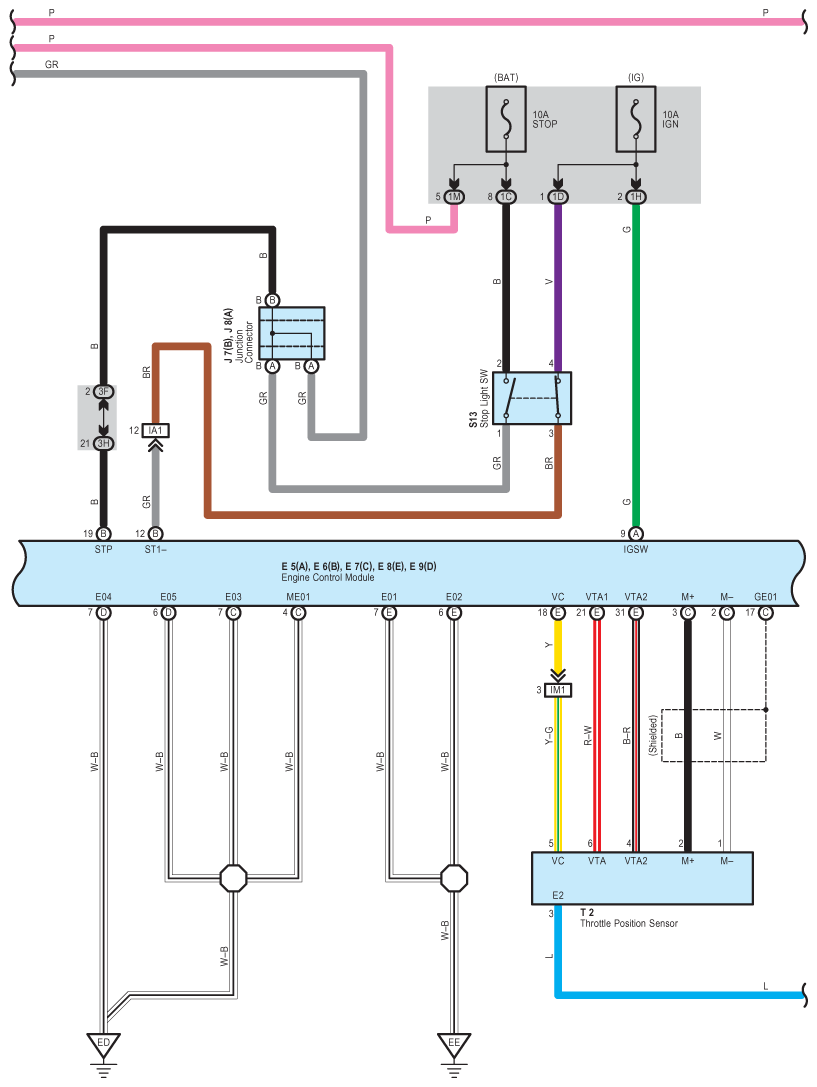

Fig 5: Dynamic Laser Cruise Control - Wiring Diagram (5 Of 9)
G08928989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

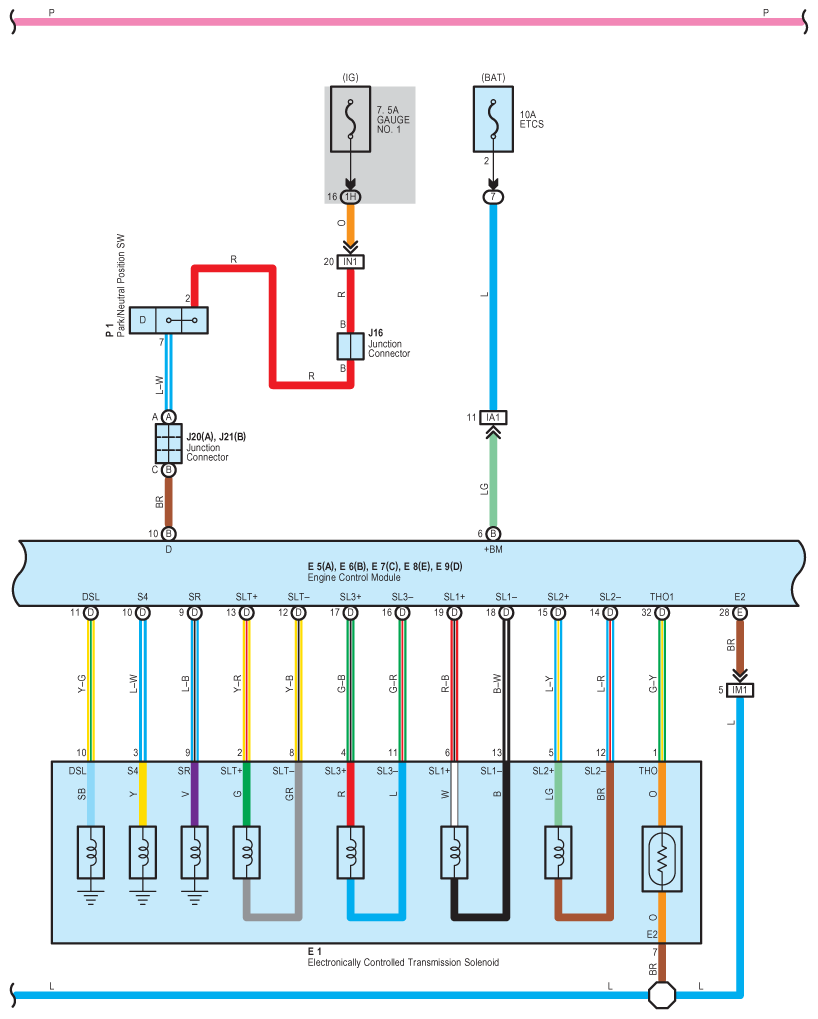

Fig 6: Dynamic Laser Cruise Control - Wiring Diagram (6 Of 9)
G08928990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

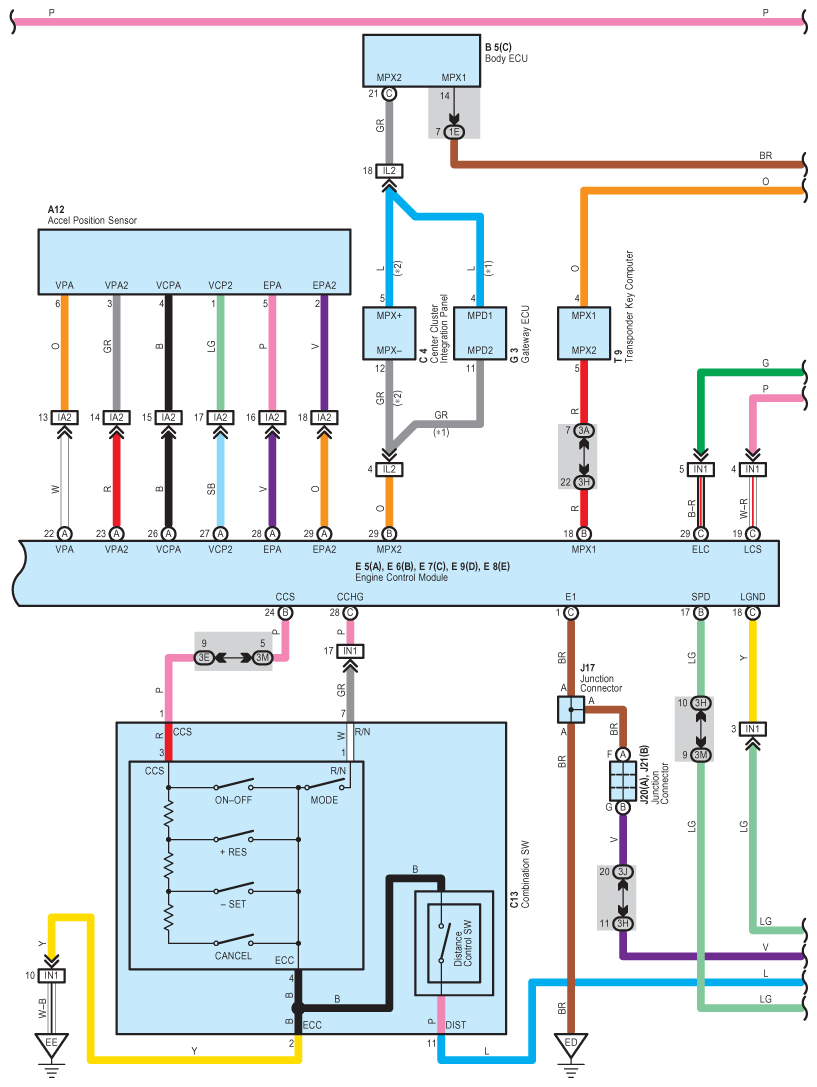

Fig 7: Dynamic Laser Cruise Control - Wiring Diagram (7 Of 9)
G08928991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

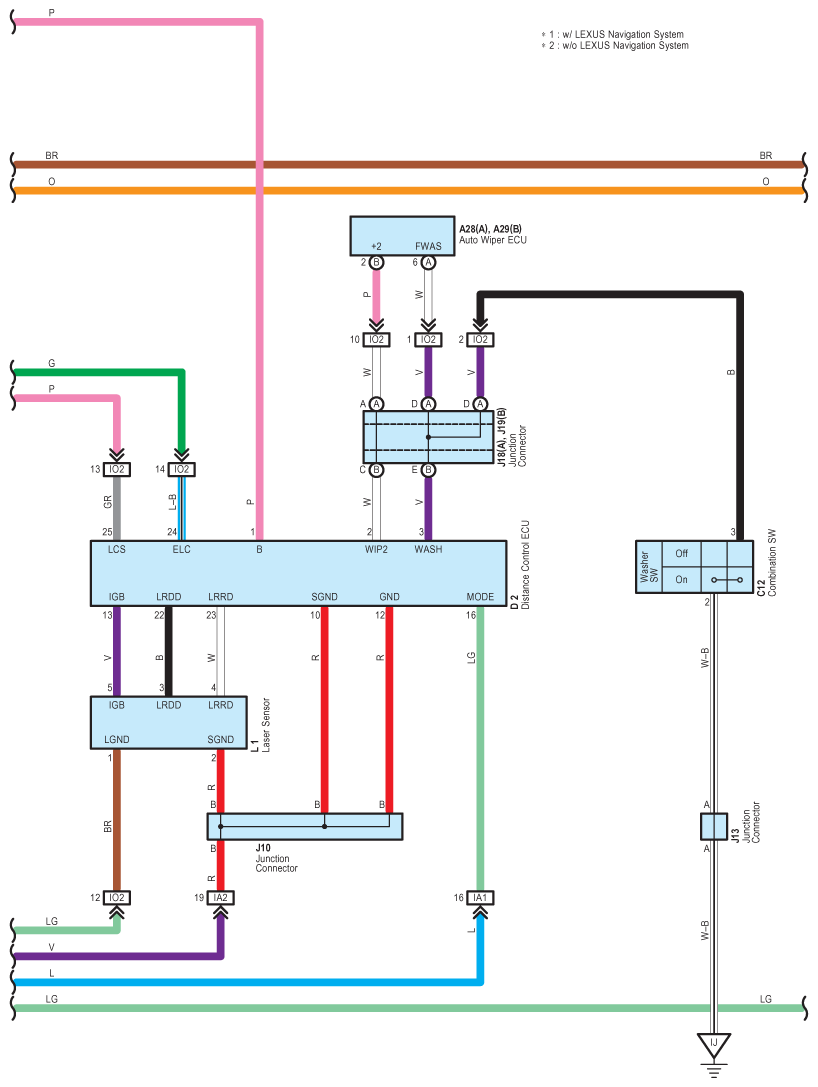

Fig 8: Dynamic Laser Cruise Control - Wiring Diagram (8 Of 9)
G08928992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

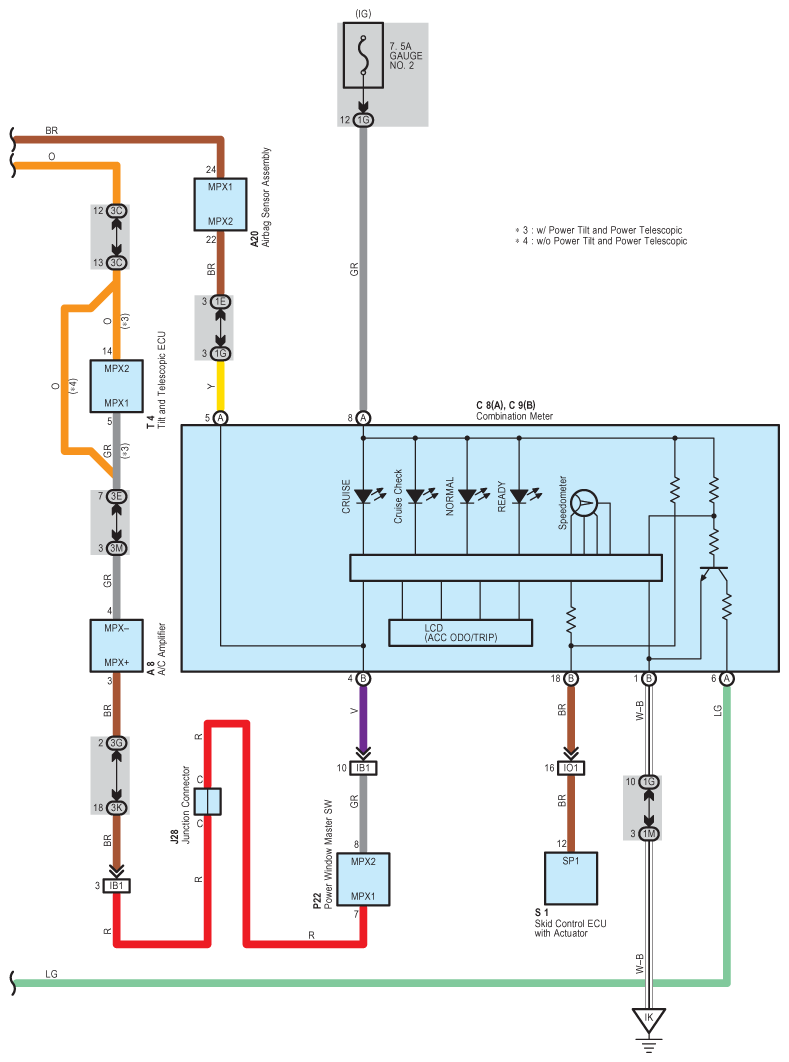

Fig 9: Dynamic Laser Cruise Control - Wiring Diagram (9 Of 9)
G08928993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
