Front Wiper and Washer with Auto Wiper System: Notes

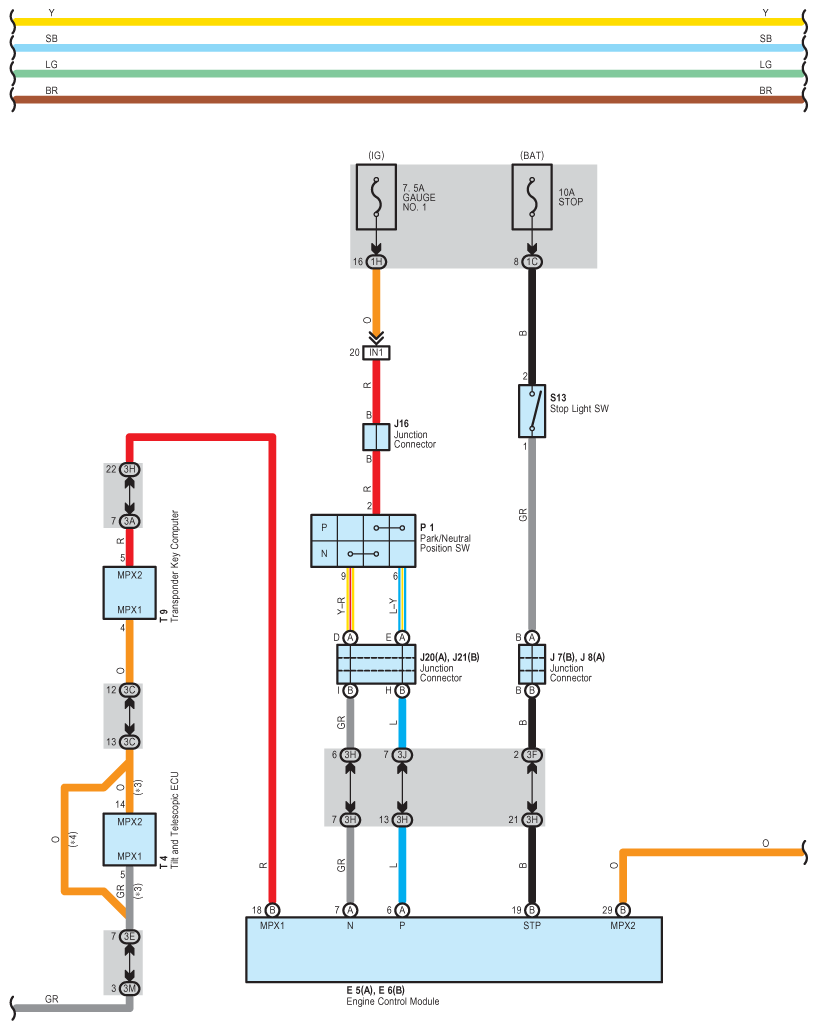

Fig 1: Front Wiper And Washer With Auto Wiper System - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

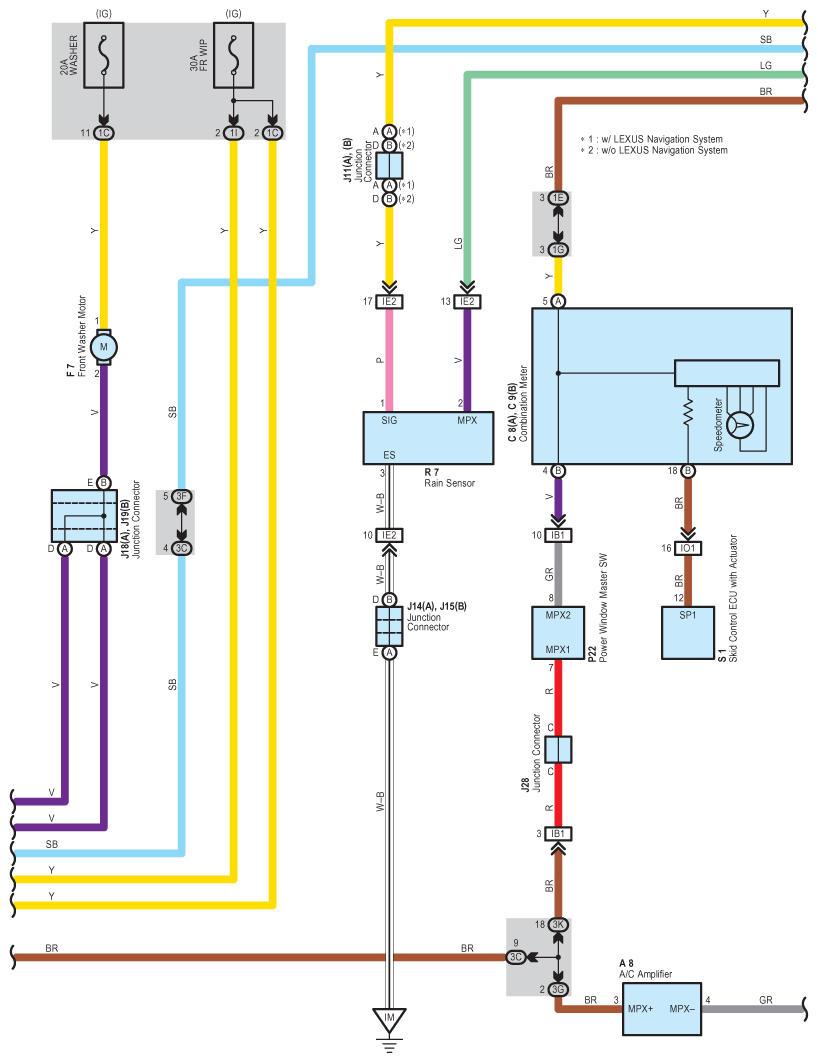

Fig 2: Front Wiper And Washer With Auto Wiper System - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

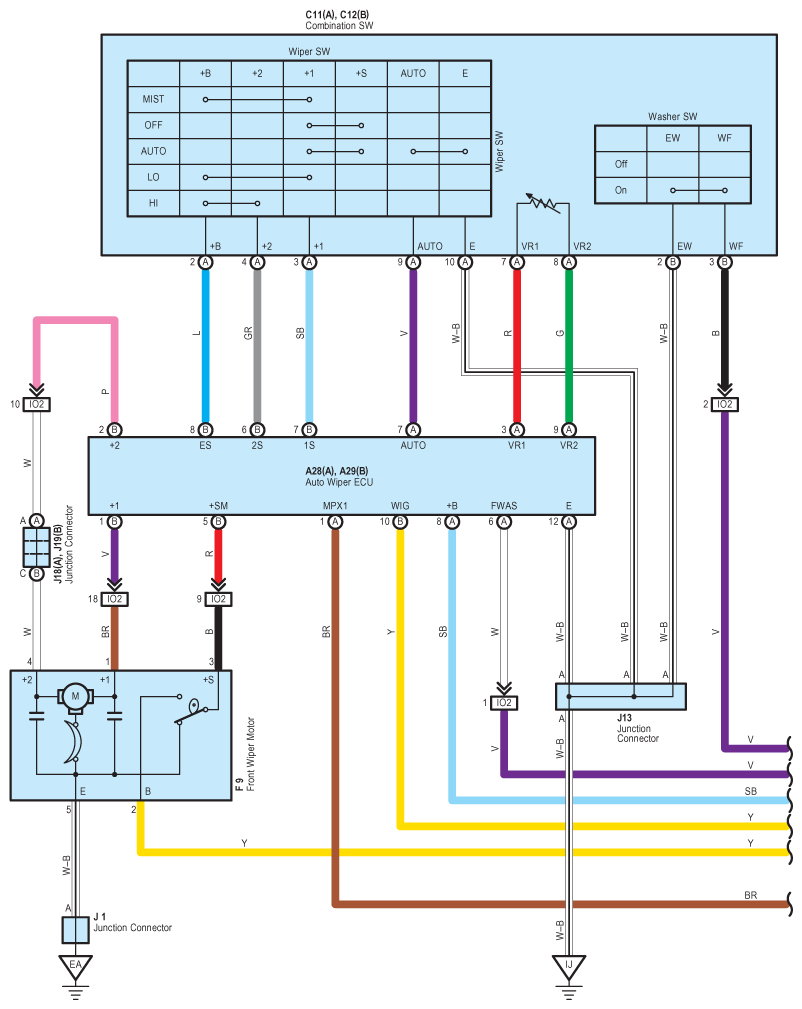

Fig 3: Front Wiper And Washer With Auto Wiper System - Wiring Diagram (3 Of 4)

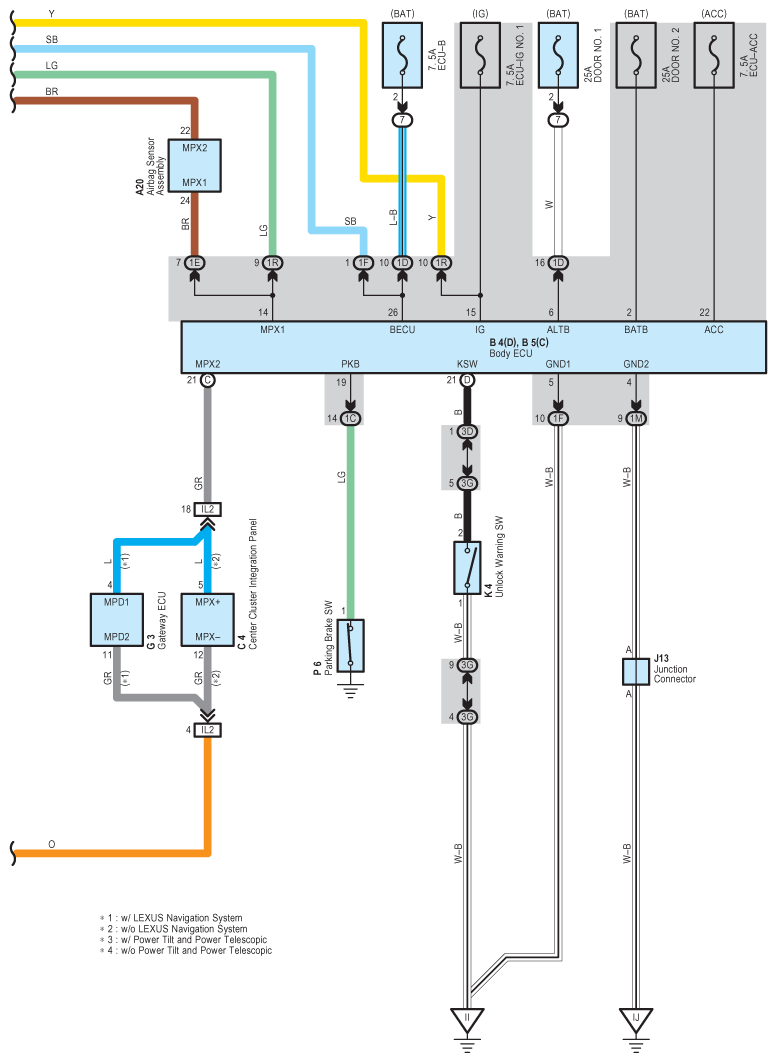

Fig 4: Front Wiper And Washer With Auto Wiper System - Wiring Diagram (4 Of 4)
