Power Back Door: Notes

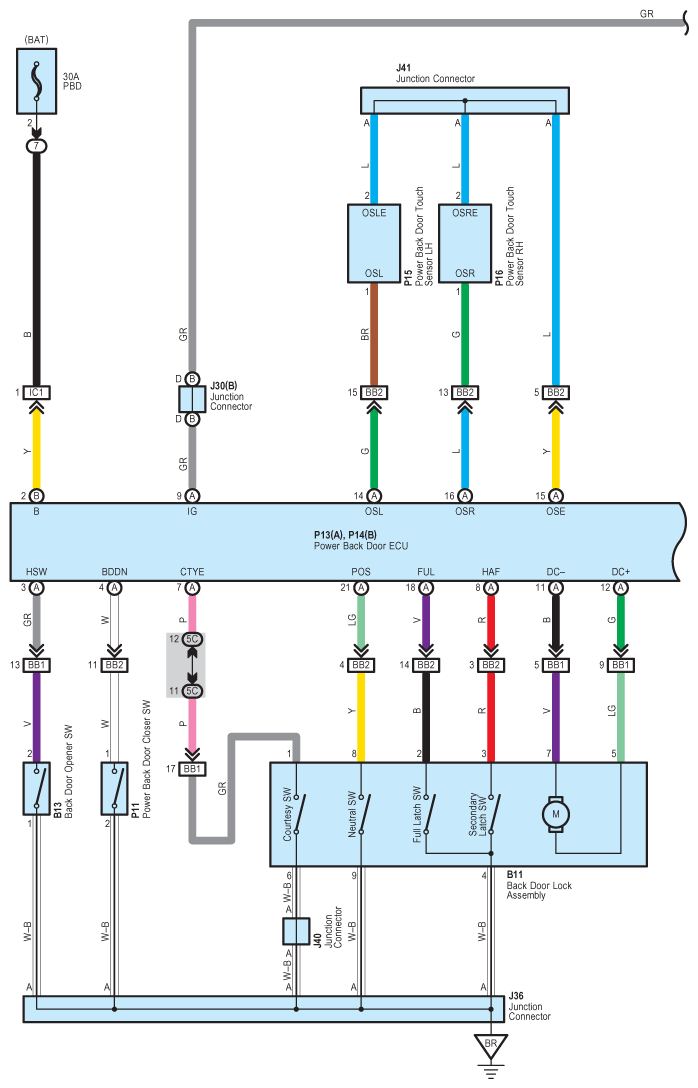

Fig 1: Power Back Door - Wiring Diagram (1 Of 4)
G08929098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Back Door - Wiring Diagram (2 Of 4)
G08929099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

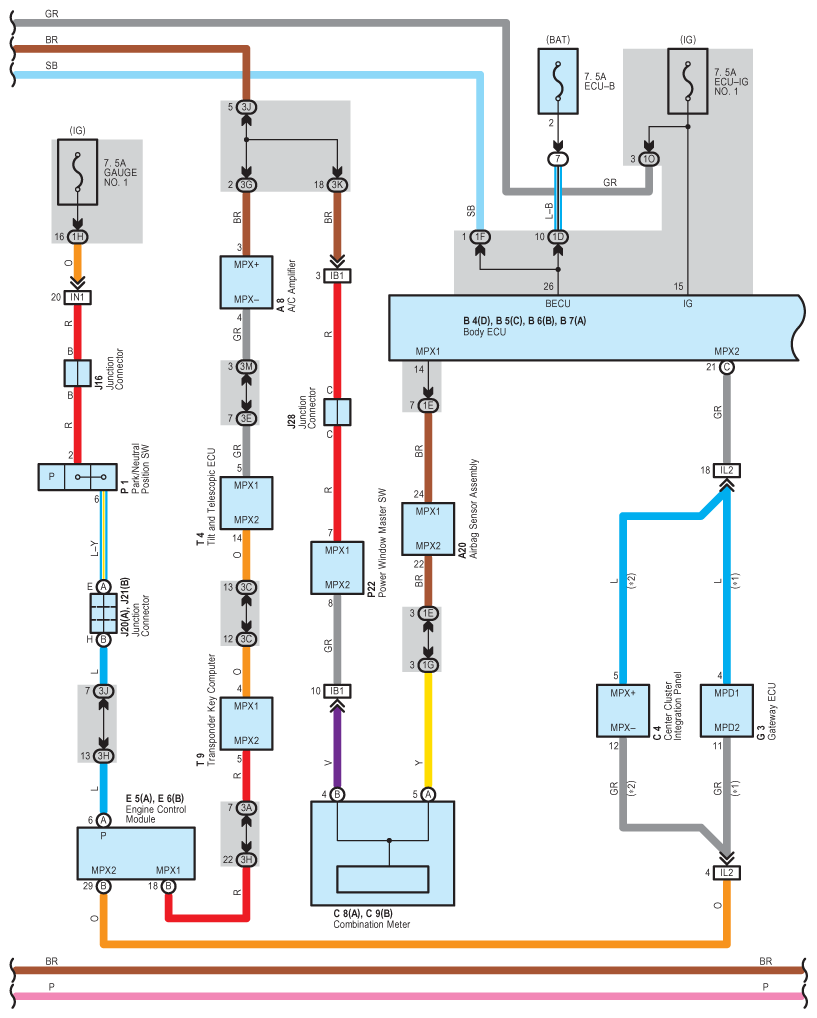

Fig 3: Power Back Door - Wiring Diagram (3 Of 4)
G08929100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

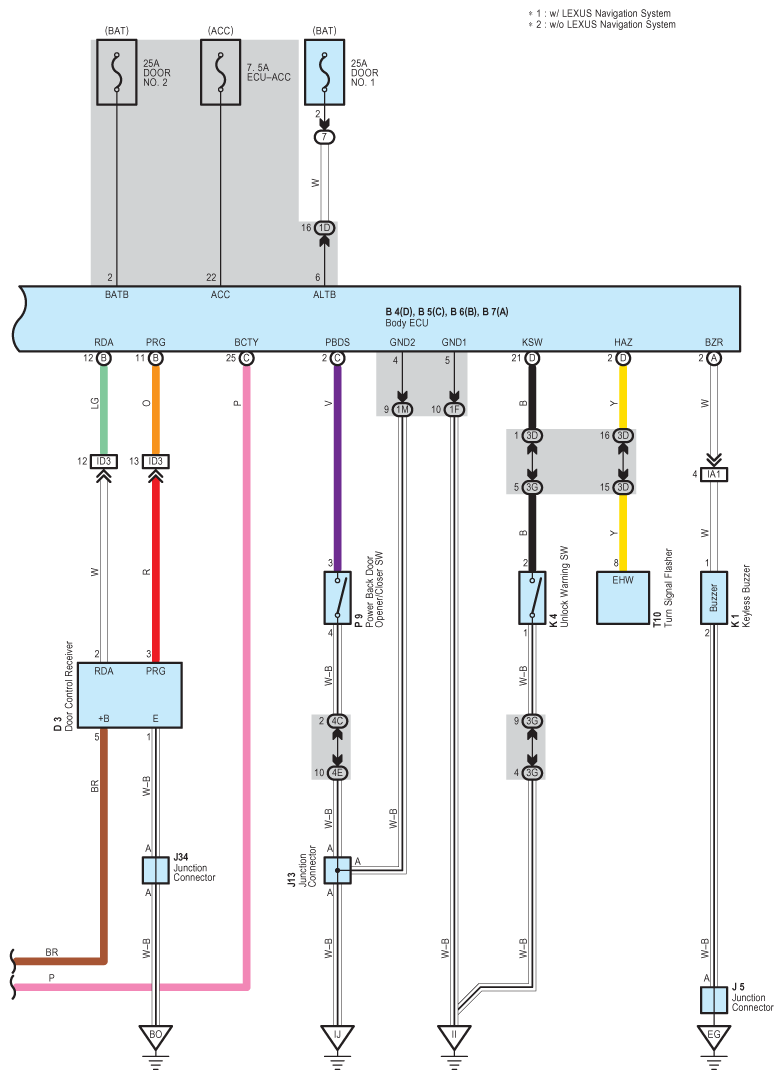

Fig 4: Power Back Door - Wiring Diagram (4 Of 4)
G08929101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
